Description
- B&R 5AP920-1505.01 | Original Automation Panel 900
Unboxing & Physical Snapshot
- Model & Brand: B&R Industrial Automation 5AP920-1505.01
- Product Type: Automation Panel 900 series industrial operator panel with 15-inch TFT color display and resistive touchscreen. Designed for machine visualization, operator control, and integration with B&R Panel PC 300 systems or Automation Panel Link architectures.
- Display Configuration:
- 15-inch TFT color display
- XGA resolution: 1024 × 768 pixels
- 16.7 million colors
- LED backlight
- Analog resistive touchscreen
- Approximate Physical Dimensions (W × H × D):
- 435 × 330 × 54 mm
- Estimated Shipping Weight:
- Unit weight: approximately 5.1 kg
- Typical packaged shipping weight: 6–7 kg
- What’s in the Box:
- B&R Automation Panel 900 5AP920-1505.01
- 15-inch TFT display assembly
- Resistive touchscreen interface
- USB interface ports
- Panel mounting hardware (when supplied)
- Protective packaging
- ESD-safe protection materials
Product Introduction
The B&R 5AP920-1505.01 is installed as the operator-facing interface inside an industrial machine enclosure, providing the visual control layer between personnel and the automation system. The aluminum frame, front IP65 protection, and fan-free construction allow installation directly into machine panels where dust protection and reduced maintenance access are required (—which is important for production equipment operating continuously across multiple shifts).
This panel is not a standalone PLC controller. Confirm whether the installation uses an Automation Panel Link card, Panel PC 300 insert, or external controller before replacement. Check the cable type. Check the panel configuration. A visually identical display may not contain the required interface hardware for the existing machine architecture.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | 5AP920-1505.01 |
| Product Family | Automation Panel 900 |
| Product Type | Industrial HMI Operator Panel |
| Display Size | 15 inch |
| Display Type | TFT Color LCD |
| Resolution | XGA 1024 × 768 pixels |
| Colors | 16.7 million |
| Touch Technology | Analog resistive touchscreen |
| Touch Controller | Elo serial 12-bit controller |
| Backlight Type | LED |
| Backlight Brightness | 350 cd/m² |
| Backlight Half-Life | Approximately 70,000 hours |
| Contrast Ratio | 1000:1 |
| USB Interfaces | 3 × USB 2.0 Type A |
| USB Current Capacity | Maximum 500 mA per port |
| Expansion Slot | Automation Panel Link / PPC300 compatible |
| Supply Voltage | 24 VDC ±25%, SELV |
| Typical Power Consumption | 24 W |
| Maximum Power Consumption | 31 W (41 W with USB load, without slot) |
| Galvanic Isolation | Yes |
| Front Protection Rating | IP65 / NEMA 250 Type 4X indoor |
| Rear Protection Rating | IP20 with Automation Panel Link card installed |
| Cooling Method | Fan-free passive cooling |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +60°C |
| Vibration Resistance | Up to 0.5 g continuous operation |
| Shock Resistance | 15 g operational |
| Weight | Approx. 5.1 kg |

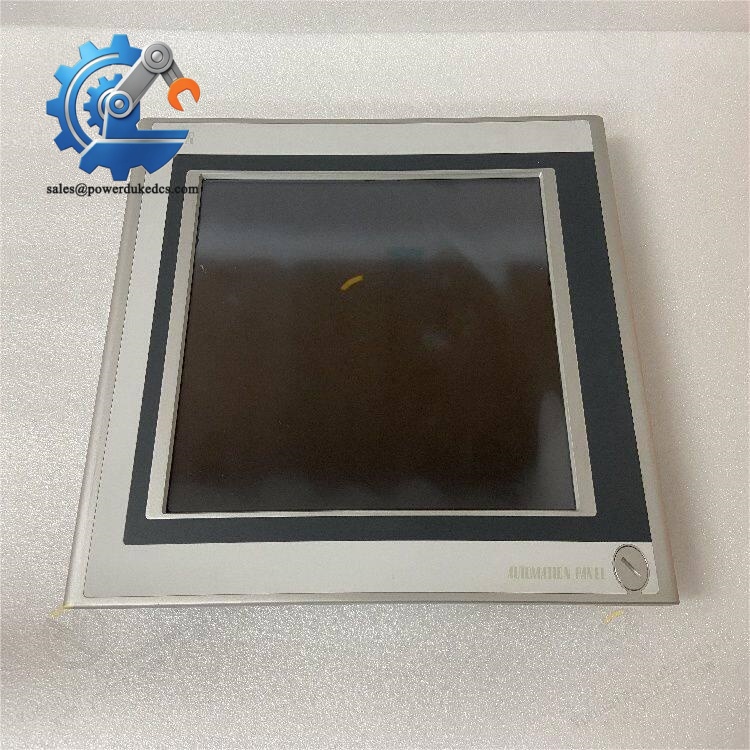

B&R 5AP920-1505.01
? Global Compliance & Industry Certifications
Expected regulatory approvals for the B&R 5AP920-1505.01 include:
- CE Mark
- Indicates compliance with applicable European EMC and safety requirements for industrial automation equipment.
- UL/cUL Listed
- The model is listed under UL industrial control equipment certification requirements (cULus E115267).
- UKCA
- Supported for applicable United Kingdom market compliance.
- ATEX / IECEx
- Not normally a standalone hazardous-area HMI. Hazardous location installation requires a certified enclosure and complete system approval.
- Marine Approvals (DNV GL)
- Applicable only for specific marine-certified system configurations.
Certification verification is important because the operator panel is mounted at the machine interface, where enclosure protection, electrical safety, and environmental ratings must match the installation conditions.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the 5AP920-1505.01 in its original protective packaging with the display surface covered. The touchscreen layer and LCD panel can be damaged by pressure, sharp objects, or improper stacking.
Maintain warehouse humidity below 60% RH. Moisture exposure can affect connector contacts, touchscreen electronics, and internal display circuitry.
Store the panel away from vibration sources. Before installation after extended storage, inspect the gasket, aluminum frame, USB ports, and rear connectors (—small mechanical defects around the sealing surface can compromise the IP65 rating).
Record the serial number, hardware revision, and storage inspection date.
Physical Installation Prerequisites
- Install the panel into a suitable machine enclosure cutout.
- Confirm cabinet depth supports the 54 mm panel depth.
- Ensure the front gasket remains correctly seated to maintain IP65 protection.
- Mount using approved panel clamps.
- Connect 24 VDC power with correct polarity.
- Connect protective earth according to cabinet requirements.
- Maintain clearance behind the panel for cables and heat dissipation.
- Leave approximately 50 mm clearance around rear ventilation and connector areas where enclosure design permits.
- Verify Automation Panel Link or PPC300 compatibility before commissioning.
- Perform touchscreen calibration after installation if required.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the B&R 5AP920-1505.01?
A: Industrial operator panels with control interfaces are commonly reviewed under HS 8537 categories for electrical control equipment. Final classification depends on destination-country customs interpretation.
Q: Why does Country of Origin (COO) matter for this B&R Automation Panel?
A: COO affects customs clearance, duty treatment, and traceability records. Ensure the commercial invoice, packing list, and certificate of origin contain matching product identification.
Q: Is shipping insurance recommended for the 5AP920-1505.01?
A: Recommended. The LCD panel, touchscreen layer, and aluminum front frame are sensitive to impact damage. External packaging inspection may not reveal internal display failures.
Q: Does the 5AP920-1505.01 include the latest firmware pre-loaded?
A: The panel hardware includes factory configuration, but application software depends on the connected B&R controller, Automation Runtime version, and project files. Verify the existing machine backup before replacement.
