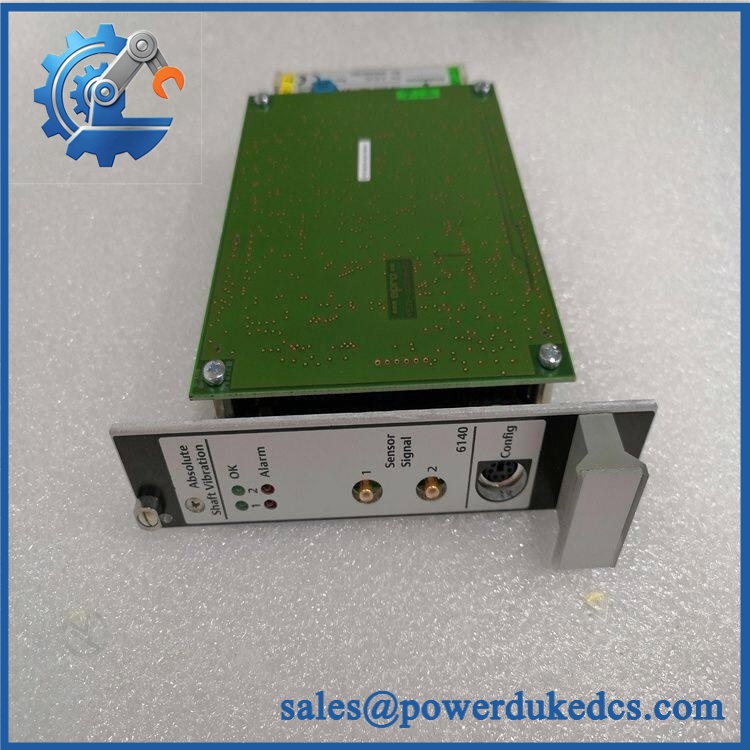

Emerson A6140 | API 670 Dual-Channel Vibration Monitor

Description

• Model: A6140
• Brand: Emerson Process Management / Emerson EPRO
• Series: AMS 6500 Machinery Health Monitor
• Part Type: Dual-channel shaft absolute vibration monitor
• Physical Dimensions: Approx. 30.0 W × 128.4 H × 160.0 D mm (1.181 × 5.055 × 6.300 in)
• Rack Footprint: 1 slot; 3U; 6 TE
• Estimated Net Weight: Approx. 320 g / 0.705 lb
• Estimated Shipping Weight: Approx. 450 g / 0.992 lb, including standard packing
• Packing Volume: Approx. 2.5 dm³
• What’s in the Box: A6140 monitor module; protective ESD packaging; shipping documentation; accessories only when specifically included in the purchase order
• Cabinet Fit: Designed for a compatible 19-inch AMS 6500 rack; up to 14 modules fit in a standard 19-inch rack.

Product Introduction

Critical rotating equipment does not tolerate uncertainty in its protection channel. The Emerson A6140 occupies one slot in the AMS 6500 machinery protection rack and combines measurements from a relative shaft-displacement sensor and a case-mounted vibration sensor to derive shaft absolute vibration relative to free space. The module has two independent or combined monitoring channels and is intended for steam turbines, gas turbines, compressors, and hydro machinery where shaft movement and casing motion both matter. Emerson identifies the A6140 as API 670 compliant and suitable for machinery protection applications.

Physically, this is a compact 3U, 6 TE, 100 × 160 mm Eurocard-format module, with a documented maximum consumption of 6 W at 24 VDC. The design includes self-checking of power input, module temperature, sensors, cables, and internal hardware; buffered proportional outputs are available along with 0/4–20 mA and 0–10 V outputs.For an installed AMS 6500 system, keeping the exact card available as a spare can avoid changing sensor wiring, rack allocation, alarm engineering, and machinery-protection validation (particularly during a short outage window).

Core Technical Specifications

The values above are taken from Emerson’s A6140 protection-card documentation and the corresponding specification sheet.

Emerson A6140

🚨 Global Compliance & Industry Certifications

The is documented for API 670-compliant machinery protection applications. Emerson’s documentation also lists environmental and EMC references including IEC 68-2, EN50081-1, and EN50082-2.

For procurement and audit records:

• API 670: Relevant to machinery-protection system design and performance requirements. This matters where the forms part of a turbine or compressor protection scheme.
• EMC: Emerson documentation cites EN50081-1 / EN50082-2 for EMC performance.
• CE Mark: Do not infer a CE marking solely from the EMC standards listed in an older datasheet. Verify the actual nameplate and conformity documentation for the specific unit.
• UL/cUL: No reliable -specific UL/cUL listing was established from the manufacturer documentation reviewed here.
• ATEX/IECEx: The standard documentation reviewed does not establish an ATEX/IECEx hazardous-area approval for the module itself. A hazardous-area installation requires verification of the complete protection-system architecture.
• Marine/DNV: No -specific DNV approval was established from the reviewed manufacturer documentation.

Verify specific lot certifications with OEM. Do not use certification claims from another AMS 6500 module as evidence for .

🚨 Long-Term Storage & Asset Preservation Guide

Keep the in its original ESD shielding bag until installation. The module contains analog measurement circuitry, configuration memory, connectors, and sensor-interface electronics; unnecessary exposure to static discharge or conductive contamination can create latent faults even when the PCB looks clean.

Control the storage environment. Emerson specifies -30 to +85 °C storage and 5–95% relative humidity, non-condensing in the specification.For warehouse stock intended to sit for years, a practical target below 60% RH is preferable, with stable temperature and no condensation cycles (especially when inventory moves from a cold warehouse into a warm staging area).

Exercise the asset periodically. For long-held spares, inspect the PCB, card-edge/backplane contacts, front-panel indicators, and connectors at scheduled intervals. Record the date code and condition. Before returning a dormant card to critical service, perform a controlled powered test and verify both channels, because storage age alone does not prove electronic health.

Do not add an arbitrary capacitor-reforming procedure. The manufacturer’s documentation does not prescribe a two-year capacitor-reforming schedule; any such procedure should come from Emerson maintenance guidance for the specific hardware revision.

Physical Installation Prerequisites

The is a 3U, 6 TE, 1-slot Eurocard-format module intended for a compatible AMS 6500 rack. Emerson specifies dimensions of 30.0 × 128.4 × 160.0 mm, with one rack-slot requirement.

Before installation:

• Confirm the rack is an AMS 6500-compatible chassis with the correct backplane and power arrangement.
• Reserve one 6 TE slot and verify neighboring modules do not interfere with the front handle or rear connectors.
• Use the rack’s intended mechanical guides and retaining hardware; do not force the card into the backplane.
• Confirm the rack provides the specified 24 VDC nominal supply and that the system power arrangement is within its documented limits.
• Keep the module within its 0–65 °C operating environment and prevent condensation.
• Bond the rack and cabinet to the site’s protective-earth system according to the AMS 6500 installation documentation.
• Route displacement-sensor and case-vibration wiring separately from high-current switching conductors where practical; this reduces susceptibility to unwanted interference.
• Verify the correct sensor type and driver arrangement before applying power. Channel 1 supports specified eddy-current sensors such as 6422–6425, while Channel 2 supports the specified case-vibration sensor arrangement.
• Do not assume an arbitrary 50 mm clearance above and below is required. This is a rack-mounted Eurocard, so cooling and spacing should follow the installed AMS 6500 chassis design rather than a generic DIN-rail clearance rule.

Buyer’s FAQ

Q1. What HS tariff code should be used for Emerson when shipping internationally?
A: Do not assign an HS code solely from the product name. The is an electronic machinery-protection monitoring module, and classification can depend on the importing country’s tariff schedule and the exact commercial description. A reasonable candidate may fall within HS heading 9031 for measuring/checking instruments not elsewhere specified, but the final six- or eight-digit tariff classification should be confirmed by the importer or customs broker before shipment.

Q2. Does the Country of Origin affect the shipment or customs entry?
A: Yes. COO should be based on the actual manufacturing origin of the supplied unit, not the seller’s warehouse location. Record the country shown on the physical nameplate or traceability documentation and use that information consistently on the commercial invoice, packing list, and Certificate of Origin when required.

Q3. How should I protect a 320 g during international freight?
A: Keep the card in an ESD shielding bag, protect the card edges and connector areas with conductive-safe cushioning, immobilize the module inside a rigid carton, and use shock protection around the inner pack. Emerson documents the net weight at approximately 320 g and gross weight at approximately 450 g, so freight planning should normally be based on packed dimensions and the actual shipping package rather than the bare module.For high-value critical spares, shipment insurance should cover the declared commercial value and the documented transit-risk conditions.

Q4. Does the ship with the latest firmware pre-loaded?
A: Do not assume that a stored spare contains the latest firmware or configuration. The published specification identifies password-protected configuration but does not establish a universal current firmware version for every legacy card revision. Before installation, record the card revision and existing system configuration, then verify compatibility with the installed AMS 6500 environment.
