Description
- Brand: Emerson
- Full Model Number: KJ3002X1-BF1
- Alternate References: 12P1732X082 / VE4003S6B1 assembly reference
- System/Series Family: DeltaV M-Series Traditional I/O
- Core Function: 8-channel RTD and resistance signal acquisition
- Top 3 Hardcore Specs: 8 RTD channels; 12 VDC LocalBus at 160 mA; 0 to 60°C operating range
- Field Circuit Rating: 5.5 VDC at 0.6 mA per channel
- Update Performance: All 8 inputs evaluated within approximately 100 ms
- Stock Status: New Surplus — stock confirmation required
Commercial-Technical Deep Dive
A failed temperature input can force operators to suppress alarms, bypass monitoring, or hold a maintenance window open. The Emerson KJ3002X1-BF1 addresses that specific DeltaV M-Series I/O requirement with eight RTD measurement channels in the traditional I/O architecture. Emerson’s current M-Series documentation still identifies an 8-channel RTD card within this hardware family, making this model relevant when the installed cabinet must retain its existing field wiring and carrier structure.
For maintenance planners, channel density matters. Eight RTD points fit into one I/O position, while the published electrical rating is 12 VDC at 160 mA on the LocalBus and 5.5 VDC at 0.6 mA per field channel. Reported update performance is approximately 100 ms for all eight inputs. Operating temperature is specified from 0°C to 60°C (cabinet cooling still matters at the upper limit). Those figures help limit cabinet expansion and reduce the number of spare positions needed for temperature monitoring loops.
Compatibility & Installation Traps
Migration/Compatibility
The KJ3002X1-BF1 belongs to the DeltaV M-Series Traditional I/O architecture. It is therefore intended for an existing compatible DeltaV I/O carrier rather than as a universal analog input replacement. Emerson’s M-Series documentation lists the RTD card as an 8-channel traditional I/O option.
For a same-model replacement, the normal maintenance path is hardware replacement followed by configuration verification. A logic rewrite should not normally be required when the existing DeltaV database already defines the same I/O point type. However, the installed DeltaV release, module revision, carrier, terminal block, and channel configuration should be checked before shipment.
Do not assume every part number printed around the assembly represents the same physical item. KJ3002X1-BF1 identifies the RTD input module, while KJ4001X1-CH1 is identified as the associated RTD terminal block in documented assembly references.
⚠️ Field Traps (Watch Out)
Field power must be isolated before module removal or insertion. Documentation associated with this hardware states that field power supplied through the field terminal or carrier must be removed before connecting or disconnecting the device. Energized system power does not automatically make field-side hot swapping safe.
Check the terminal block key and RTD wiring before energizing. The documented module information identifies a B2 terminal-block key position. A mechanically similar card with the wrong termination arrangement can create an installation error even when the chassis position looks correct.

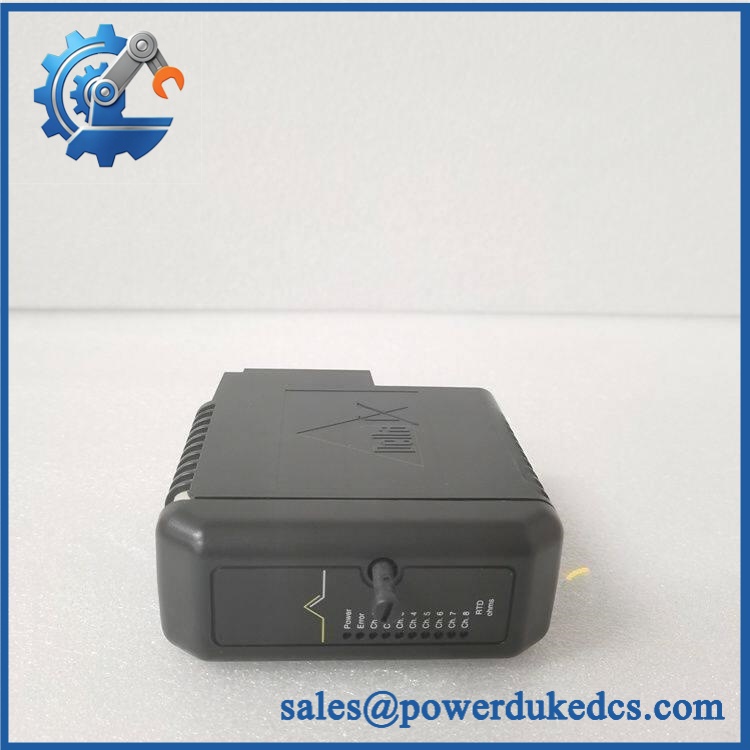

Emerson KJ3002X1-BF1
Quality Assurance SOP
Before shipment, each KJ3002X1-BF1 unit should pass the following inspection sequence:
- OEM anti-counterfeit visual inspection: nameplate, model code, label quality, connector condition, board markings, and revision identifiers checked against the ordered part.
- Mechanical inspection: connector pins, housing, retention features, terminal interface, and PCB condition checked for damage or contamination.
- Power-on self-test (POST): module energized on a compatible test carrier; power, RUN, and ERR LED states checked where applicable.
- DeltaV I/O recognition check: controller-side I/O identification verified against the expected module type.
- Communication handshake verification: LocalBus communication established between the I/O card and DeltaV controller.
- Channel verification: RTD/resistance simulation applied to representative channels; input response and fault indication checked.
- Configuration check: channel addressing, diagnostic response, and engineering-unit behavior reviewed against the test setup.
- Final traceability record: nameplate photos, test results, serial or revision information, and packaging condition retained with the shipment record.
The exact acceptance limits depend on the installed DeltaV release, test carrier, terminal arrangement, and approved application documentation. The QA result should therefore be treated as a hardware condition record, not as a substitute for the plant’s commissioning procedure.
CRO-Driven Buyer FAQ
Is the Emerson KJ3002X1-BF1 obsolete?
It is part of the DeltaV M-Series Traditional I/O family, which remains documented by Emerson in current M-Series material. Lifecycle status for a specific revision can still differ from the broader platform status, so buyers should verify the exact hardware revision against their installed system before purchasing.
Can be hot-swapped?
Do not treat it as unrestricted hot-swap hardware. Field power must be removed before connecting or disconnecting the device. Certain energized-system removal conditions are documented for specific power-supply and wiring configurations, but those conditions are installation-specific.
What terminal hardware does this RTD module use?
is associated with the DeltaV M-Series RTD termination arrangement. KJ4001X1-CH1 is identified as an RTD terminal block in documented product references. Confirm the terminal-block part number and key position against the cabinet bill of materials before ordering.
Does replacing the same require a logic rewrite?
Normally, a same-model hardware replacement should not require a control-logic rewrite. The DeltaV I/O configuration, firmware compatibility, module revision, carrier, and channel assignments still need verification before commissioning.
What warranty and technical support are included?
A standard 12-month hardware warranty can be supplied with the unit, subject to the final quotation terms. Warranty coverage applies to hardware functional defects under normal operating conditions. Field wiring errors, incorrect installation, overvoltage, surge damage, process calibration, and plant-specific control engineering remain outside normal hardware warranty coverage.
