Description
- Brand: Emerson
- Full Model Number: KJ4001X1-CK1
- System / Series Family: DeltaV M-Series Traditional I/O
- Core Function: 40-pin mass termination interface for DeltaV I/O
- Top 3 Hardcore Specs: 40-pin interface; 30 VDC at 1 A per channel; 0 to 70 °C ambient
- Additional Environmental Data: 5 to 95% non-condensing RH; 10 g half-sine shock; ISA-S71.04 Class G3
- Stock Status: New surplus or replacement inventory subject to lot-specific condition
The KJ4001X1-CK1 is documented as a 40-pin mass termination block. Its installation instructions specify 30 VDC at 1 A per channel and a 0 to 70 °C ambient range.
Commercial-Technical Deep Dive
When a DeltaV M-Series I/O cabinet develops a termination fault, replacing the correct interface can be faster than rebuilding field wiring. The KJ4001X1-CK1 provides the documented 40-pin mass termination interface used in DeltaV I/O arrangements. Engineering documentation also identifies it with the VE4003S2B6 16-channel analog-input configuration, together with KJ3223X1-BA1 and the associated system cabling. That makes exact part-number matching important during emergency spare replacement — especially where cabinet wiring has already been commissioned.
The electrical and environmental figures are equally useful during spare evaluation. The specified input rating is 30 VDC at 1 A per channel, with operation from 0 to 70 °C and 5 to 95% non-condensing humidity. Shock resistance is specified at 10 g half-sine for 11 ms, while vibration limits are 1 mm peak-to-peak from 2 to 13.2 Hz and 0.7 g from 13.2 to 150 Hz. For maintenance teams, those limits provide clear cabinet-screening criteria before installation (actual cabinet thermal loading still needs site verification).
Compatibility & Installation Traps
Migration / Compatibility
This part is a termination block, not a programmable controller. A like-for-like replacement therefore does not normally require a firmware flash or control-logic rewrite.
It is not a universal drop-in part for every DeltaV I/O assembly. The correct I/O card, 40-pin interface, cable arrangement, and rotary keying must match the original configuration. Emerson documentation specifically states that the rotary keying system must be set for the I/O card being used.
For the documented VE4003S2B6 application, the KJ4001X1-CK1 is identified as the 40-pin mass termination option with the related KJ3223X1-BA1 configuration and system cable arrangement.
⚠️ Field Traps (Watch Out)
Trap 1 — Incorrect keying:
Do not force an I/O card into a mismatched keyed termination assembly. Verify the rotary key positions before seating the hardware.
Trap 2 — 40-pin wiring mismatch:
Confirm the existing cable and pin assignment against the original cabinet drawing before reconnection. A mechanically correct connection can still carry the wrong signal mapping.
Power-down rule:
The hazardous-area instruction states that this unit must not be removed or inserted with system power energized. Follow the site’s isolation, permit, and area-classification procedure before replacement.

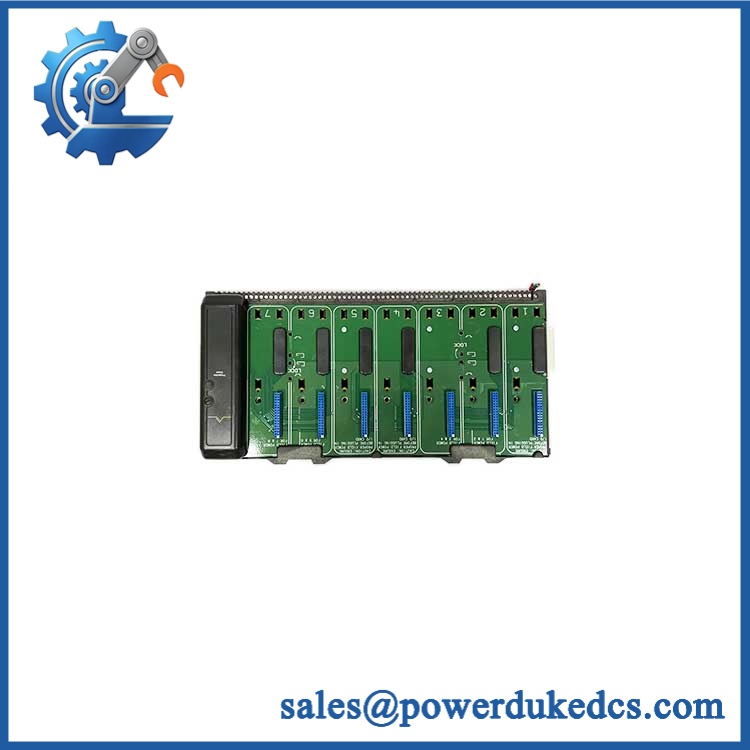

Emerson KJ4001X1-CK1
Quality Assurance SOP
Our pre-shipment inspection for the KJ4001X1-CK1 follows a hardware-focused QA sequence:
- OEM anti-counterfeit visual inspection: label format, manufacturer markings, part number, revision details, connector condition, housing finish, and evidence of unauthorized rework.
- Mechanical inspection: 40-pin connector condition, keying mechanism, mounting features, terminal body integrity, and signs of impact or contamination.
- Electrical verification: connector continuity and pin-to-pin checks where test access permits; inspection for shorts, open circuits, and abnormal resistance.
- Power-on self-test (POST): when the part is tested as part of a live DeltaV I/O assembly, check associated ERR/RUN LED behavior and abnormal diagnostic indications.
- Communication handshake verification: verify the installed I/O path establishes the expected system communication and signal response.
- Documentation cross-check: confirm the exact KJ4001X1-CK1 identification against the order and supplied inspection record.
- Final packaging inspection: connector protection, anti-static handling, shock protection, and label legibility before shipment.
The itself has no user-serviceable parts, and the manufacturer’s instruction indicates that calibration is not required.
CRO-Driven Buyer FAQ
Is the Emerson obsolete?
It is a legacy DeltaV M-Series component that appears in older Emerson and system-engineering documentation. For a replacement project, verify the exact cabinet configuration and current lifecycle status before changing to another termination assembly.
Is the a direct replacement?
For an existing installation using the same part number and matching configuration, replacement is normally a hardware-for-hardware exchange. It is not a universal substitute for other DeltaV termination blocks. Confirm the I/O card keying, 40-pin cable, and cabinet drawing before installation.
Can the be hot-swapped?
Do not treat it as a generic hot-swap component. The hazardous-area instruction explicitly prohibits removal or insertion while system power is energized. Use the approved site isolation procedure before handling the unit.
What should I verify before ordering?
Provide the complete number and, where available, the assembly or revision marking. Also verify the mating DeltaV I/O card, connector type, keying arrangement, and cabinet wiring drawing. These checks reduce the risk of receiving a physically similar but incorrect termination component.
What warranty and technical support are provided?
Warranty duration is stated on the quotation for the supplied stock lot and condition. Technical support covers part identification, specification review, documentation checks, wiring verification, and basic replacement guidance. Site commissioning, process-logic modification, and plant-specific engineering approval remain the customer’s responsibility.
