Description
- Brand: Emerson EPRO
- Full Model Number: PR6423/008-110
- System/Series Family: PR6423 8mm Eddy Current Sensor
- Core Function: Non-contact shaft displacement and vibration measurement
- Top 3 Hardcore Specs: 8.0 mm probe tip / ±1.0 mm linear range / 0–20 kHz frequency range
- Stock Status: New Surplus — lot and date code to be verified before shipment
Commercial-Technical Deep Dive
When a sleeve-bearing turbine develops shaft motion, casing-mounted vibration data can hide the actual rotor behavior. The Emerson EPRO PR6423/008-110 measures the shaft directly without mechanical contact. It is intended for radial and axial displacement, shaft position, eccentricity, and speed measurements in rotating machinery. The PR6423 family is specified for turbines, compressors, gearboxes, pumps, and fans. Its 8 mm probe size suits shafts from 25 mm diameter upward.
The useful numbers are straightforward. This probe provides a 2 mm linear measurement range, equivalent to ±1.0 mm position measurement, with an 8 V/mm scale factor. Frequency response extends to 20 kHz. The specified deviation from best-fit straight line is ±0.025 mm under the stated temperature conditions. An initial 0.5 mm air gap is part of the sensor specification, so probe positioning directly affects usable signal margin. (Field installation conditions still matter, especially shaft runout and target geometry.)
Compatibility & Installation Traps
Migration/Compatibility
PR6423/008-110 is a sensing element, not a standalone PLC input device. It requires a compatible EPRO signal converter and the correct system wiring. Emerson documentation identifies PR6423 sensors for use with converter families including CON 011, CON 021, CON 041, and related monitoring hardware.
For replacement work, do not assume every variant is mechanically interchangeable. Check thread form, probe geometry, cable arrangement, converter type, target material, and existing system calibration. No control-logic rewrite is normally required for a like-for-like probe replacement, but the installed converter and complete transducer chain must be verified before startup.
⚠️ Field Traps (Watch Out)
Air-gap error: The specified initial air gap is 0.5 mm. Incorrect probe positioning can reduce linearity or push the signal outside the intended measurement region.
Target-material mismatch: Standard calibration uses 42CrMo4 / AISI 4140 ferromagnetic steel. Different target materials can change probe response, so material-specific calibration may be required.
Cable and converter mismatch: configurations use different cable and connection arrangements. Match the exact suffix and converter before energizing the monitoring channel.
ESD and connector handling: Keep the sensing circuit protected during installation. Do not expose open connectors to unnecessary contamination or mechanical stress.

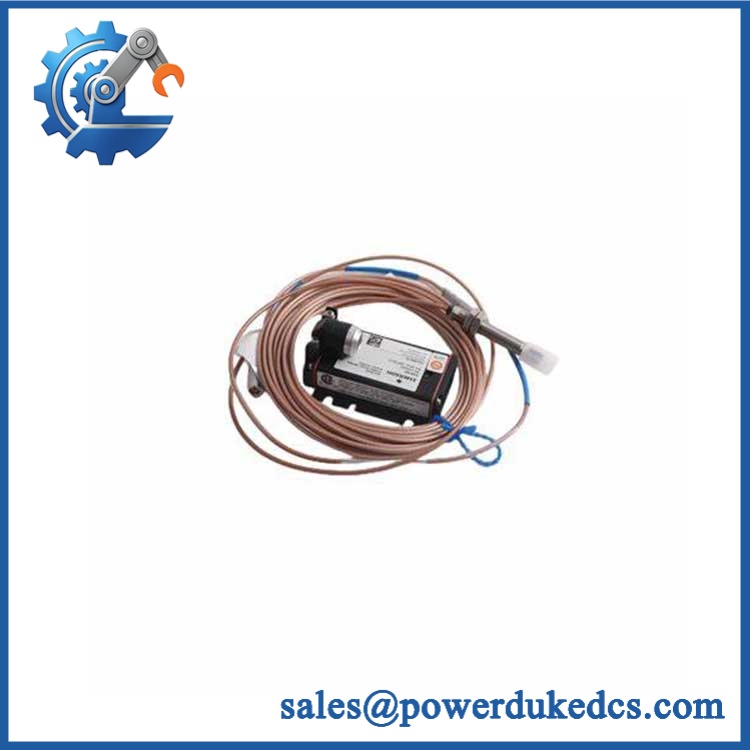

Emerson PR6423/008-110
Quality Assurance SOP
Each available /008-110 unit should pass a documented receiving and pre-shipment inspection.
- OEM anti-counterfeit visual inspection: Compare housing finish, markings, model code, connector construction, cable termination, and labeling against known OEM references.
- Part-number verification: Confirm
/008-110on the physical nameplate before packing. - Mechanical inspection: Check probe tip, threaded body, cable jacket, connector, and strain-relief areas for damage.
- Electrical integrity check: Verify continuity and insulation condition before system connection.
- Power-on self-test: For complete sensor assemblies with the compatible converter or monitor, perform POST and check applicable ERR/RUN LED states on the active electronics. The probe itself is not treated as an LED diagnostic device.
- Communication handshake verification: Where a converter and monitoring rack are supplied with the test setup, confirm the expected sensor channel is detected and produces a valid output.
- Signal verification: Confirm sensor response against the applicable converter calibration procedure before release.
- Packaging record: Record model number, serial/date code, inspection result, and shipment photos.
Emerson’s current installation guide specifies sensor operation from -35°C to +180°C, with short-duration exposure up to +200°C under stated conditions. The same guide specifies resistance to water, steam, natural gas, bearing oils, and several other industrial media.
CRO-Driven Buyer FAQ
Is Emerson EPRO /008-110 still suitable for maintaining older turbine monitoring systems?
Yes, the family remains documented in Emerson’s Machinery Health sensor portfolio and current installation documentation. For an older installation, verify the complete probe, converter, cable, and monitor combination before ordering.
Can /008-110 be hot-swapped during operation?
Do not assume hot-swapping is permitted. Follow the shutdown, channel isolation, and electrical safety procedure specified for the installed converter and monitoring system. Sensor replacement should normally be treated as a controlled maintenance activity.
Does the probe connect directly to a PLC or DCS analog input?
Not by itself. is an eddy-current probe that requires compatible signal-conditioning electronics. The selected converter determines the final interface to the monitoring or control system.
What warranty is available for this /008-110?
Standard commercial warranty: 12 months, subject to the final quotation and purchase-order terms. Warranty coverage applies to confirmed product defects and does not cover installation errors, incorrect gap settings, wiring damage, or application outside specified conditions.
What should I send before ordering a replacement?
Send the exact probe model, complete suffix, existing converter model, cable termination, and the installed monitoring system model. A photo of the nameplate also helps prevent a mechanically similar but electrically different variant from being supplied.
