1. Emerson VE4022 | Traceable DCS Network Interface Spare

2. Unboxing & Physical Snapshot

• Brand & Model: Emerson VE4022
• Product Category: DeltaV M-Series Profibus DP Series 2 Plus Interface Card
• Application: Emerson DeltaV distributed control system communication interface. The VE4022 is a simplex M-Series Profibus DP Series 2 Plus Interface Card supplied with one interface card and a simplex terminal block.
• Approximate Physical Dimensions: Approximately 6.0 × 5.0 × 1.0 in (152 × 127 × 25 mm), depending on terminal block and carrier arrangement.
• Estimated Shipping Weight: Approximately 0.5 lb (0.2 kg) including protective packaging.
• What’s in the Box:
  • Emerson VE4022 Profibus DP Interface Card
  • Associated simplex terminal block (when supplied as complete assembly)
  • ESD shielding bag
  • Protective foam packaging
  • OEM identification label
  • Documentation when included with inventory shipment

3. Product Introduction

The Emerson VE4022 sits at the communication layer of a DeltaV control system, where reliable fieldbus exchange directly affects device visibility, diagnostics, and process control availability. This Series 2 Plus Profibus DP Interface Card provides the connection between DeltaV M-Series I/O architecture and compatible Profibus DP networks (verify controller revision and software compatibility before installation).

Installed inside the DeltaV I/O subsystem, the module depends on the correct carrier, terminal block, and configuration database. It is not a standalone communication converter. Inspect the card edge connector, terminal block contacts, and retaining hardware before installation (connector contamination can create intermittent fieldbus faults that are difficult to reproduce).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson
Model Number	VE4022
Product Family	DeltaV M-Series Series 2 Plus
Product Type	Profibus DP Interface Card
Interface Type	PROFIBUS DP
Configuration	Simplex
Included Hardware	One interface card and simplex terminal block
Compatible Platform	Emerson DeltaV M-Series
Mounting Method	DeltaV I/O carrier assembly
Communication Function	PROFIBUS DP network interface
Power Supply	12 VDC system supply
Current Consumption	Approximately 600 mA
Power Draw	Approximately 7.2 W
Heat Dissipation	Approximately equivalent to operating power losses
Cooling Method	Cabinet convection airflow
Terminal Connection	Fieldbus termination interface
Firmware	DeltaV software-controlled module compatibility

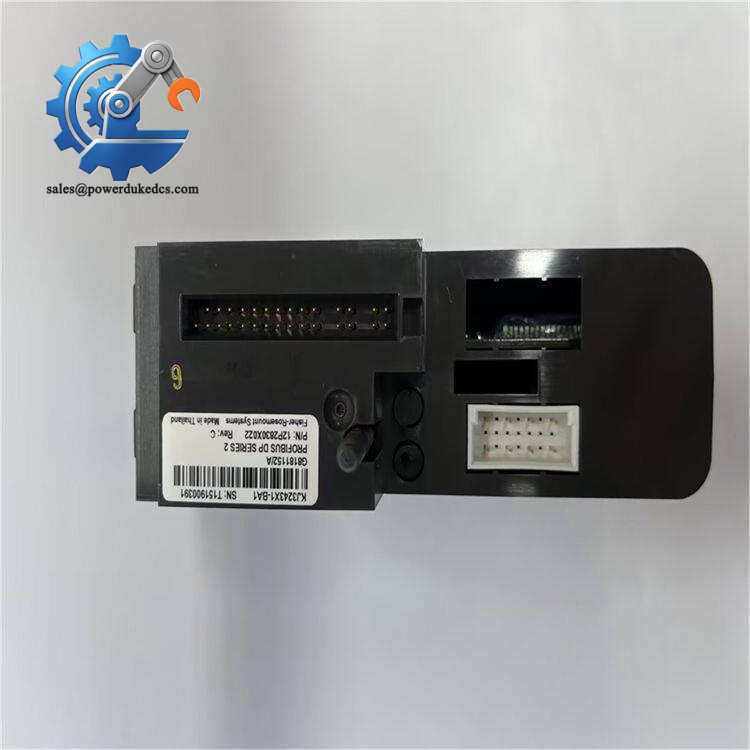

Emerson VE4022

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for this class of industrial DCS communication hardware may include:

• CE Mark for applicable electromagnetic compatibility and electrical safety requirements.
• UL/cUL Recognition or Listing when installed within approved DeltaV control assemblies.
• ATEX/IECEx consideration when the module is used within certified hazardous-area fieldbus installations.
• Marine approvals such as DNV GL where installed in certified offshore or vessel automation systems.

Profibus installations in hazardous areas require correct segregation, approved barriers or couplers, and certified system combinations. The communication card alone does not establish hazardous-area compliance.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the VE4022 inside its original anti-static shielding bag until deployment. The exposed card-edge contacts are vulnerable to contamination and electrostatic discharge.
• Maintain warehouse humidity below 60% RH and avoid condensation cycles. Moisture can degrade connector plating and terminal block contacts.
• Inspect stored modules every 12-24 months. Check the PCB surface, terminal block condition, labels, and packaging integrity (small cracks in terminal housings can appear after years of improper stacking).

7. Physical Installation Prerequisites

• Confirm DeltaV software revision and M-Series hardware compatibility before installation.
• Install the VE4022 only in the designated DeltaV I/O carrier position.
• Maintain approximately 50 mm clearance above and below cabinet assemblies where required for convection cooling.
• Verify protective earth grounding and cabinet bonding before energizing.
• Confirm Profibus cable shielding, termination resistors, and grounding practices.
• Keep fieldbus wiring separated from high-current motor and power cables to reduce communication interference.

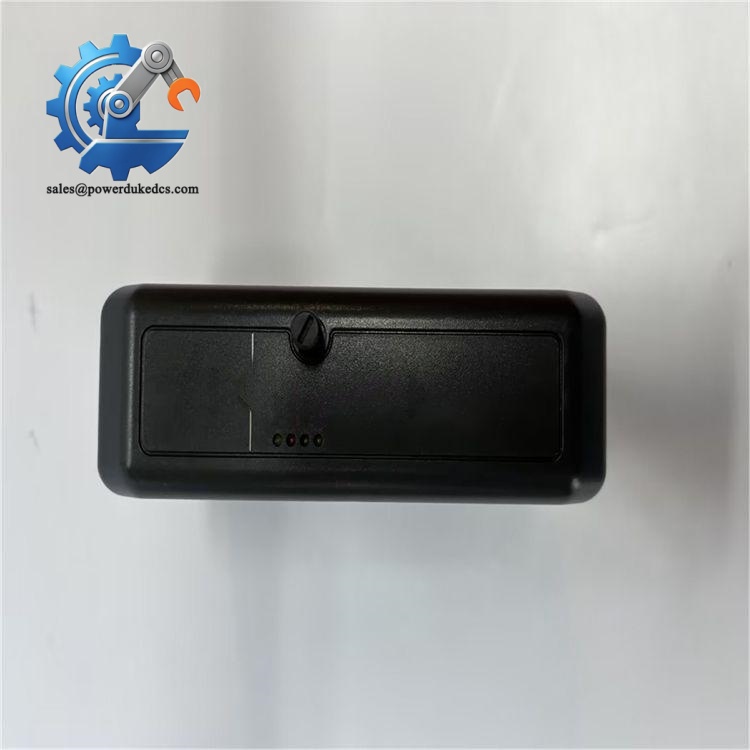

  Emerson VE4022

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Emerson VE4022?
A: Communication interface modules are often reviewed under electrical communication equipment classifications. Some references list HS 8517620050 for this type of Profibus module, but final classification depends on destination-country customs requirements and declared function.

Q: Does Country of Origin (COO) affect importing this DeltaV module?
A: Yes. COO documentation supports customs clearance, supplier qualification, and lifecycle traceability. Retain OEM labels, serial records, and purchasing documentation with the spare inventory file.

Q: Should shipping insurance be purchased for the VE4022?
A: Yes. Although compact, this communication card contains sensitive electronic components and connector interfaces. Use ESD packaging, rigid protection, and declared-value insurance.

Q: Does the VE4022 include the latest firmware pre-loaded?
A: Firmware compatibility is managed through the DeltaV system software environment rather than simple standalone loading. Confirm the installed DeltaV version and module revision before commissioning.
