Description
The GE 531X303MCPBDG1 is a 531X Series Motion Control Processor (MCP) Board used in legacy GE drive systems. The exact part number is identified in industrial automation references as an MCP board associated with GE drive-control equipment, including DC-300 and AC-300 series systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GE / General Electric |
| Part Number | 531X303MCPBDG1 |
| Series | 531X |
| Board Designation | MCP |
| Product Type | Motion Control Processor Board |
| Primary Function | Drive motion-control processing and interface functions |
| Typical Applications | GE DC-300, AC-300 and related legacy drive systems |
| Processor | Motorola 68000-family processor; exact fitted revision should be verified from the board |
| Digital I/O | Reported 24 VDC configurable digital I/O; exact configuration should be verified against the applicable board documentation |
| Analog Interface | Reported analog control/feedback circuitry; exact channel configuration should be confirmed |
| Feedback Interface | Motion-control feedback circuitry associated with the host drive |
| Host Interface | Board-to-regulator/control electronics via ribbon-cable and backplane connections |
| Firmware | Board/application dependent; verify EPROM or firmware revision |
| Mounting | Internal PCB assembly within the host GE drive/control cabinet |
| Standalone Operation | No; requires the compatible GE host system |
| Lifecycle | Legacy / discontinued |
| Weight | Not reliably verified for the exact board |
| Dimensions | Not reliably verified from an OEM source |
| Country of Origin | To be verified from the actual unit |
Product Overview
The 531X303MCPBDG1 is a control PCB within GE’s 531X drive architecture. The MCP designation refers to the board’s Motion Control Processor role rather than a standalone PLC CPU.
The board works as part of the host drive electronics, processing motion-control information and exchanging signals with the associated regulator and interface hardware. Because the 531X family contains multiple MCP variants, the complete MCPBDG1 identification is important when sourcing a replacement.

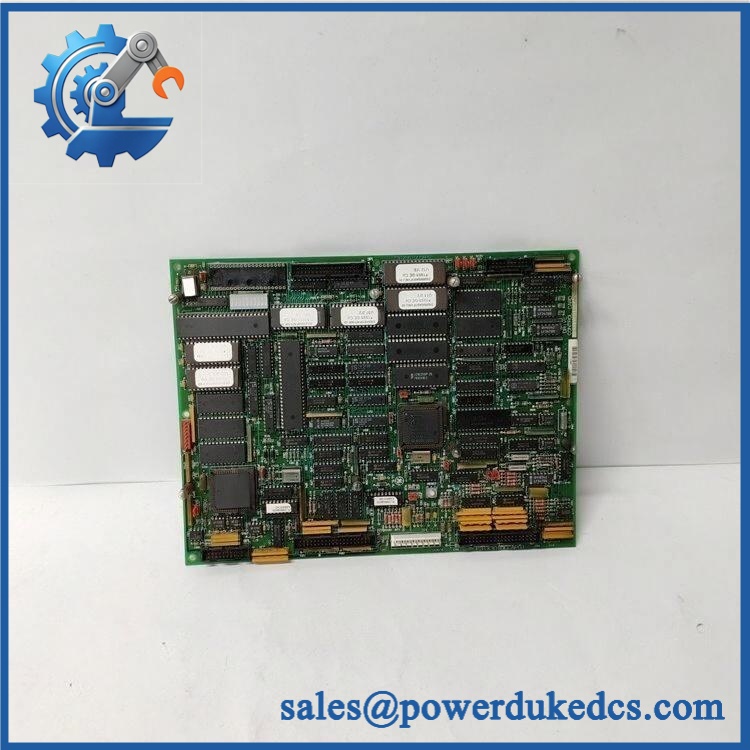

GE 531X303MCPBDG1
531X MCP Variant Matching
Several 531X MCP boards appear in legacy GE inventories, including different suffix configurations. Examples include:
| Part Number | Board Family |
|---|---|
| 531X303MCPBAG1 | 531X MCP |
| 531X303MCPBBG1 | 531X MCP |
| 531X303MCPBDG1 | 531X MCP |
| 531X303MCPARG1 | 531X MCP |
| 531X303MCPAMG1 | 531X MCP |
These suffixes should not be assumed interchangeable. Hardware configuration, connector assignment, feedback circuitry, and host-drive requirements can differ.
Replacement Considerations
When replacing GE 531X303MCPBDG1, verify the following against the installed board:
| Verification Item | Purpose |
|---|---|
| Complete part number | Confirms the correct MCP variant |
| Board revision / artwork number | Identifies the hardware revision |
| Host drive model | Confirms the intended GE control architecture |
| Connector layout | Prevents electrical or mechanical mismatch |
| EPROM / firmware markings | Important for legacy drive operation |
| Feedback arrangement | Confirms compatibility with the installed motor-control system |
| Adjacent regulator/control boards | Establishes system-level compatibility |
| Nameplate and serial number | Useful for exact replacement sourcing |
A visually similar 531X MCP board should not be installed solely because it has the same board family number. For critical drive applications, the complete installed configuration should be checked before energization.
Lifecycle and Obsolescence
The 531X303MCPBDG1 is legacy GE drive hardware and is no longer part of GE’s current-generation drive portfolio. Replacement availability is therefore generally dependent on remaining new-old-stock, surplus, refurbished, or repaired inventory.
For an installed legacy drive, keeping an exact spare can help avoid an extended outage caused by difficulty sourcing a particular MCP variant.
Important Specification Note
Public secondary-market descriptions provide inconsistent technical details for individual 531X MCP boards. For that reason, values such as exact processor clock speed, I/O channel count, analog resolution, operating temperature, dimensions, and board-level power requirements should be verified against the applicable GE manual or board drawing before being used as engineering specifications.
FAQ
What is GE 531X303MCPBDG1?
It is a GE 531X Series Motion Control Processor (MCP) Board used in legacy GE drive-control systems.
Is it a PLC CPU?
No. It is a drive-control processor board that operates within the host GE drive architecture.
What drives are associated with the 531X family?
The 531X family is associated with legacy GE drive platforms such as DC-300 and AC-300 systems.
Can another 531X303 MCP board replace 531X303MCPBDG1?
Not automatically. The suffix identifies a specific board configuration, and compatibility should be confirmed against the host drive and installed hardware.
Is 531X303MCPBDG1 still manufactured?
It is considered legacy/discontinued hardware, with replacement supply primarily dependent on specialist inventory.
