Description
- Model & Brand: GE Fanuc / General Electric IC660EBD110P
- Series: Genius I/O
- Part Type: Electronic Assembly for 16-channel discrete AC input block
- Physical Dimensions: Approximately 22.2 × 8.9 × 10.0 cm (W × H × D)
- Estimated Shipping Weight: Approximately 1.8 kg for a packaged electronic assembly; confirm the actual packed weight before freight booking.
- What’s in the Box: IC660EBD110P electronic assembly, ESD protective packaging, and applicable inspection/QC documentation. The IC660TBD110 terminal base is not assumed to be included.
Product Introduction
The GE IC660EBD110P belongs to the legacy Genius I/O block architecture, where the electronic assembly and terminal base form the complete field I/O unit. This P-version assembly is associated with the IC660BBD110 16-point discrete AC input block and the IC660TBD110 terminal base, making the mating hardware part of the physical installation rather than an optional convenience.
At the field interface, the assembly handles 115 VAC discrete signals, with an operating range of 93–132 VAC at 47–63 Hz. Two banks of eight inputs provide 16 total channels, while input-to-ground isolation is rated at 1500 V. This is an older Genius architecture, so preservation of the exact revision and terminal-base pairing is particularly important during legacy control-system maintenance.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / General Electric |
| Model | IC660EBD110P |
| Base Assembly | IC660EBD110 |
| Series | Genius I/O |
| Product Type | Electronic Assembly |
| Associated I/O Block | IC660BBD110 |
| Compatible Terminal Base | IC660TBD110 |
| Input Channels | 16 discrete AC inputs |
| Channel Arrangement | 2 banks × 8 inputs |
| Nominal Input Voltage | 115 VAC |
| Input Voltage Range | 93–132 VAC |
| Frequency | 47–63 Hz |
| Input Type | Discrete/contact AC input |
| Supported Devices | 2-wire and 3-wire proximity switches, switches, pushbuttons, contacts |
| Input-to-Ground Isolation | 1500 V |
| Input Threshold | Programmable, approximately 25–85% of line voltage |
| Short-Circuit Detection | Approximately 10–90% of line voltage |
| Block Current | Approximately 8 mA |
| Circuit Current | Approximately 200 mA |
| Heat Dissipation | 28 W maximum with all inputs ON at full current |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +100°C |
| Humidity | 5–95% RH, non-condensing |
| Vibration | Approximately 5–10 Hz with specified displacement limit |
| Dimensions | Approximately 22.2 × 8.9 × 10.0 cm |
| Approximate Weight | 1.81 kg / 4 lb |
| Installation | IC660TBD110 terminal base |
| Configuration | Genius I/O block hardware/software configuration |
| Standalone Firmware | Configuration-dependent Genius block firmware |
| Hot Replacement | Do not assume live replacement |
Heat and power considerations
The 28 W maximum heat-dissipation figure deserves attention in cabinet planning. With all 16 input circuits active at their rated conditions, this electronic assembly can contribute meaningful local heat to a compact legacy enclosure.
Unlike newer distributed I/O packs, the IC660EBD110P is part of a block-style Genius I/O architecture. The electronics should be assessed together with the IC660TBD110 terminal base, field wiring, and surrounding blocks when reviewing thermal and installation conditions.
Revision control
The suffix P identifies a specific revision of the IC660EBD110 family. GE records show multiple historical revisions, including A through P and later variants, so procurement should retain the complete catalog number rather than shortening it to IC660EBD110.

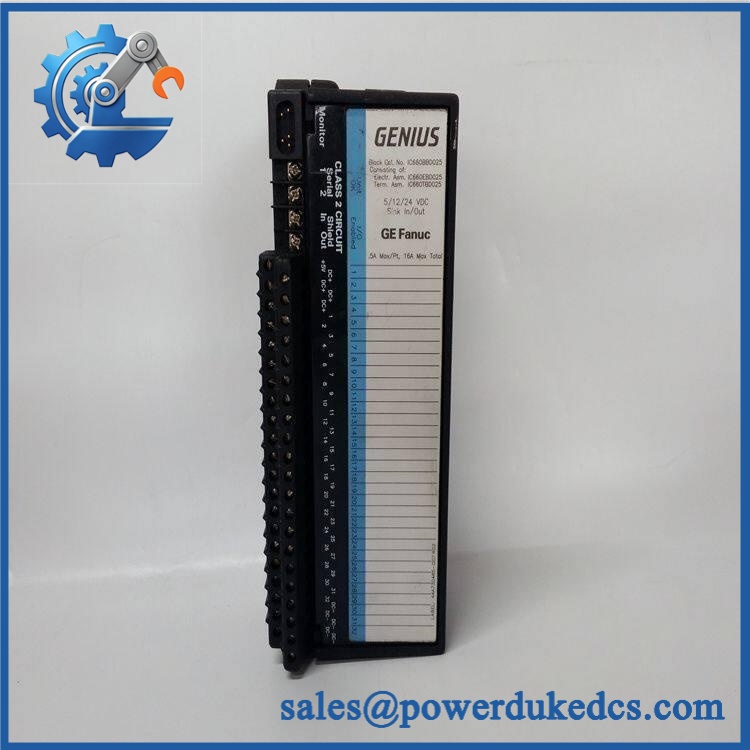

GE IC660EBD110P
Global Compliance & Industry Certifications
The IC660EBD110P is legacy industrial control hardware. Certification claims should be tied to the applicable Genius I/O block assembly and installation configuration, not assumed from the electronic assembly alone.
For compliance-controlled procurement:
- CE Mark: Verify applicability to the installed Genius I/O equipment and the relevant historical documentation.
- UL/cUL: Confirm the exact IC660 block/terminal-base configuration and applicable approval record.
- ATEX / IECEx: Do not assume hazardous-area approval for the standalone electronic assembly.
- Marine approvals: DNV GL or similar marine certification should not be inferred from the Genius I/O designation.
- Country of Origin: Establish from actual manufacturing documentation or traceability.
- HS classification: Obtain the final tariff classification from the importing country’s customs broker.
The 1500 V input-to-ground isolation is an electrical isolation specification, not an ATEX or IECEx certification. Keep those two concepts separate in audit records.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the in an ESD shielding bag until installation. The edge/interface connection to the terminal base should be protected from repeated handling, contamination, and corrosion.
The published storage range extends to -40°C to +100°C, with 5–95% RH non-condensing. For warehouse preservation, a considerably drier environment—preferably below approximately 60% RH—is a better operating target for long-duration inventory.
Because the assembly can dissipate up to 28 W during operation, inspect the heat-generating components for discoloration or overheating before accepting a returned field unit. Do not automatically reform capacitors or replace components simply because the module has been stored for years; use an approved test procedure for the specific revision.
Record the complete P-version identifier in the asset database. Older Genius I/O installations frequently contain several revisions that appear physically similar.
Physical Installation Prerequisites
Install the into the compatible IC660TBD110 terminal base. The electronic assembly does not provide the complete field wiring interface by itself.
Secure the terminal base to the panel or designated mounting structure before inserting the electronics. Ensure the retaining mechanism is fully engaged and that the module is seated evenly against the mating connector.
The block requires 115 VAC nominal field inputs, with a specified range of 93–132 VAC. Verify the field voltage and frequency before connecting any input circuit.
Because heat dissipation can reach 28 W, provide the cabinet airflow and spacing required by the Genius I/O installation design. Do not impose an arbitrary 50 mm rule if the original cabinet drawing specifies another arrangement; preserve the OEM rack/block spacing and prevent adjacent equipment from obstructing heat removal.
Separate high-voltage AC field wiring from low-level communications wiring according to the original cabinet layout. Grounding and shielding should follow the Genius I/O system installation scheme.
Buyer’s FAQ — Logistics & Compliance Focus
Q: What HS Tariff Code should be used for ?
A: It is an industrial electronic assembly for a discrete-input Genius I/O block, but the final Harmonized System classification depends on the importing country’s tariff rules. Have the customs broker confirm the code rather than applying a universal electronics classification.
Q: Does Country of Origin depend on where the replacement ships from?
A: No. COO should be supported by manufacturing or traceability documentation for the actual . The export location or warehouse address does not establish manufacturing origin.
Q: Does the include the latest firmware pre-loaded?
A: Do not assume a current firmware state. This is a legacy Genius I/O electronic assembly, and the exact firmware/configuration can depend on the revision and associated system. Verify the installed revision and application requirements before commissioning.
Q: How should shipping insurance and physical packing be handled?
A: Insure the shipment for the documented replacement value and retain pre-shipment photographs of the part number, revision, connectors, and packaging. Use an ESD shielding bag, rigid protection around the mating interface, moisture protection, and shock-resistant outer packaging; the approximately 1.81 kg assembly should not be allowed to move freely inside the carton.
