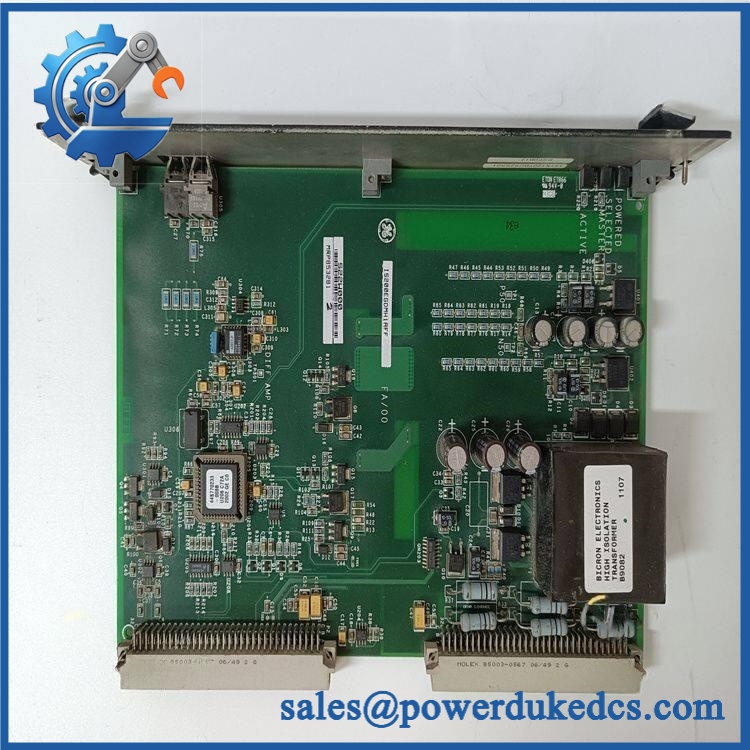

GE IS200ECTBG1ADE | Mark VI Exciter Contact Terminal Board

• Brand: GE
• Full Model Number: IS200ECTBG1ADE
• Lifecycle Status: Legacy / Obsolescence-risk
• Core Function: Exciter Contact Terminal Board for GE Mark VI redundant excitation control systems
• Top 3 Technical Specs: 6 auxiliary contact inputs | 4 Form-C relay outputs | 2 dedicated trip contact outputs
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed contact terminal board can interrupt excitation contact monitoring or prevent required relay outputs from reaching the plant’s generator-control circuits. GE IS200ECTBG1ADE is an ECTB Exciter Contact Terminal Board designed for the redundant architecture of GE Mark VI excitation systems. Available technical records identify six auxiliary contact inputs, two dedicated contact inputs associated with 52G and 86G, four general-purpose Form-C relay outputs, and two trip contact outputs that drive a customer lockout. In redundant installations, input power and signal distribution are associated with the M1/M2 control-supply architecture.

For an installed Mark VI excitation system, replacing the exact ECTB can avoid a larger panel modification or excitation-control migration. The board provides the termination and routing interface between field contacts, relay circuits, and the controller, so maintaining the existing board configuration can preserve field wiring and control logic. GE technical records also distinguish the ECTBG1 redundant version from the ECTBG2 simplex version; the IS200ECTBG1ADE is intended for redundant systems. (For legacy excitation equipment, verified replacement inventory can shorten an outage when an exact board revision is required.) The TCO comparison should include rewiring, control-engineering labor, generator commissioning, relay testing, and lost generation—not only the board purchase price.

Module 4: Compatibility & Replacement Matrix

Technical records identify the ECTBG1 configuration as the redundant version, with its contact inputs distributed to three controller connections and relay-control feedback monitored by the controller. The ECTBG2 version is intended for simplex systems.

Field Traps — Watch Out

• Redundant versus simplex mismatch: Do not substitute an ECTBG2 board for an ECTBG1 installation simply because both carry the ECTB designation. The IS200ECTBG1ADE is specifically documented for redundant systems.
• Field-contact assignment: Preserve the existing 52G, 86G, trip, and Form-C relay wiring exactly. An incorrect terminal assignment can affect generator status, lockout, or excitation-control signals.

GE IS200ECTBG1ADE

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for GE IS200ECTBG1ADE should include:

• Identity verification: Confirm complete IS200ECTBG1ADE part number, ECTB designation, revision markings, serial information, terminal-strip arrangement, and PCB identifiers.
• OEM anti-counterfeit visual inspection: Examine GE markings, PCB construction, component placement, terminal blocks, connectors, solder work, conformal coating, and evidence of unauthorized repair.
• Mechanical inspection: Check both terminal strips, board mounting points, connectors, relay components, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Input-circuit inspection: Verify all six auxiliary-contact paths and the dedicated 52G/86G input paths for correct continuity and insulation condition.
• Power-on self-test (POST): Install the ECTB in an approved Mark VI excitation test arrangement and verify normal initialization.
• 70 VDC contact-wetting verification: Where the test configuration supports it, verify the documented excitation/contact-wetting behavior without exceeding approved test limits.
• 52G input test: Simulate generator-status contact conditions and verify the corresponding signal path.
• 86G input test: Simulate lockout contact conditions and verify correct signal acquisition.
• Form-C relay testing: Exercise all four general-purpose relay outputs and verify normally open, normally closed, and common contact behavior.
• Trip-output testing: Exercise the two customer-lockout trip paths under controlled conditions and verify correct output behavior.
• Relay-coil monitoring test: Where supported by the test rack, verify relay-coil current and auxiliary-contact feedback monitoring.
• Redundant-path verification: Confirm correct signal distribution for the redundant ECTBG1 architecture.
• I/O load testing: Apply controlled representative loads to applicable relay outputs and monitor contact stability, voltage, current, and temperature.
• Controller interface test: Verify communication and signal exchange with the associated Mark VI controller/EMIO arrangement.
• Extended run test: Monitor relay outputs and contact inputs for intermittent operation, contact bounce, overheating, or signal loss.
• Final QC: Record serial number, revision, input/output test results, relay-contact measurements, redundant-path verification, condition grade, photographs, and packaging approval.

The ECTB is an active field-interface point for excitation contacts and relay outputs, so a credible QA process must verify the actual contact and relay circuits, not merely confirm that the PCB passes a visual inspection.

Module 6: Procurement & Lifecycle FAQ

Is GE genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact marking before PO release. Current supplier records show this model listed as available, including tested and new inventory listings, but emergency dispatch should be based on physically verified stock, payment clearance, export documentation, and the carrier’s actual pickup cutoff.

How do you verify the condition and authenticity of this legacy ECTB board?
Require complete part-number and serial verification, OEM marking inspection, PCB and terminal examination, conformal-coating inspection, input continuity tests, Form-C relay testing, trip-output testing, and redundant-path verification. The condition should be explicitly stated as New Surplus or Tested Refurbished.

Can I replace with another ECTB board?
Not automatically. The architecture is intended for redundant systems, while ECTBG2 is intended for simplex systems. The controller architecture, field wiring, input distribution, and relay configuration must match before approving the replacement.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not normally the primary issue for this terminal board. The key checks are the Mark VI controller architecture, redundant configuration, terminal assignments, 52G/86G wiring, relay outputs, trip circuits, and associated EMIO connections. The replacement should reproduce the installed hardware arrangement rather than rely on the ECTB family name alone.

What warranty and return terms should procurement require?
The quotation should specify the exact part number, revision, condition grade, serial traceability, input/output test scope, warranty period, DOA coverage, and return authorization procedure. For an excitation-system terminal board, the acceptance record should retain the actual relay and contact-input test results tied to the supplied unit.
