Description
- Brand: GE / legacy GE Fanuc Intelligent Platforms
- Full Model Number: PMC422-LAM D2
- Lifecycle Status: Legacy / Restricted Production lineage
- Core Function: 8-port PMC serial controller and serial I/O interface
- Top 3 Technical Specs: 8 independent serial channels; RS232/RS422/RS485 support; PCI 2.2 32-bit target interface up to 33 MHz
- Serial Architecture: 8 × 16C550-compatible UARTs; 64-byte FIFO per channel
- Baud Rate: 150 bit/s to 6.2 Mbit/s depending on configuration/crystal; commonly configured lower in legacy installations
- Form Factor: PMC
- Host Integration: VMEbus or CompactPCI host with compatible PMC interface
- Stock & Condition: Current lot confirmation required; condition and revision stated on quotation
- Emergency Dispatch: Confirm order cutoff and inspection status before PO release
Obsolescence & Supply Chain Deep Dive
A failed PMC serial card can create a disproportionately long outage when the host controller is tied to legacy VMEbus, CompactPCI, or other PMC-based computing hardware. The GE PMC422 family provides eight independent serial channels in a PMC form factor, with RS232, RS422, and RS485 interfaces and rear-I/O support through the PIM422 interface module. GE-era lifecycle exposure is significant: the current Abaco product record identifies the PMC-422/FP lineage as having entered Restricted Production on January 27, 2020 and points users toward newer serial-controller alternatives. That makes verified legacy inventory important for repair programs where the installed architecture cannot be changed during a short maintenance window.
The economic case is usually tied to avoided engineering work rather than the card price alone. Retaining the existing host, PMC carrier, application software, serial cabling, and field wiring can eliminate much of the NRE, validation, documentation, and commissioning effort associated with a wider platform migration. Eight UART channels, programmable serial rates, a 16-bit timer/counter, and eight general-purpose inputs also allow the existing design to retain its original I/O topology. For a maintenance team, that can reduce TCO by limiting the intervention to the failed module instead of triggering a chassis, processor, software, and interface redesign (although driver and host compatibility still require verification before shipment).
Compatibility & Replacement Matrix
| Replacement Scenario | Assessment | Engineering / Procurement Action | Estimated Switch Effort |
|---|---|---|---|
| Replace an installed PMC422-LAM D2 with the same model and matching revision | Drop-in Replacement | Verify exact part number, board revision, connector arrangement, and host PMC slot | Bench validation: 1–2 hours |
| Replace an older PMC422 variant with PMC422-LAM D2 | Conditional Drop-in Replacement | Confirm front/rear I/O routing, PIM422 configuration, serial standard, and software driver support | Engineering review: 2–4 hours |
| Move the module to a different host platform | Software Compatible only after verification | Confirm PCI target behavior, OS, driver, interrupt configuration, and application-level serial settings | 4–8+ engineering hours |
| Change to a newer serial-controller family | Not a direct replacement | Review I/O pinout, host interface, software stack, cables, and application integration | Typically 1–3 engineering days, depending on system scope |
| Change wiring or connector architecture | Hardware Modification | Rework cables, interface assemblies, or rear-I/O hardware as required | 4–16+ hours |
Field Traps (Watch Out)
DIP Switch / Serial Mode: The PMC-422 documentation identifies onboard DIP-switch configuration for signaling characteristics. Do not assume that the replacement inherits the operating mode of the removed board. Record every switch position before removal and validate each channel after installation.
Front vs. Rear I/O: The PMC-422 architecture can expose four ports through front RJ45 connections while all ports may be routed through rear I/O using the PIM422. A card with a different I/O arrangement should not be approved as an unconditional drop-in without checking the installed chassis and cabling.

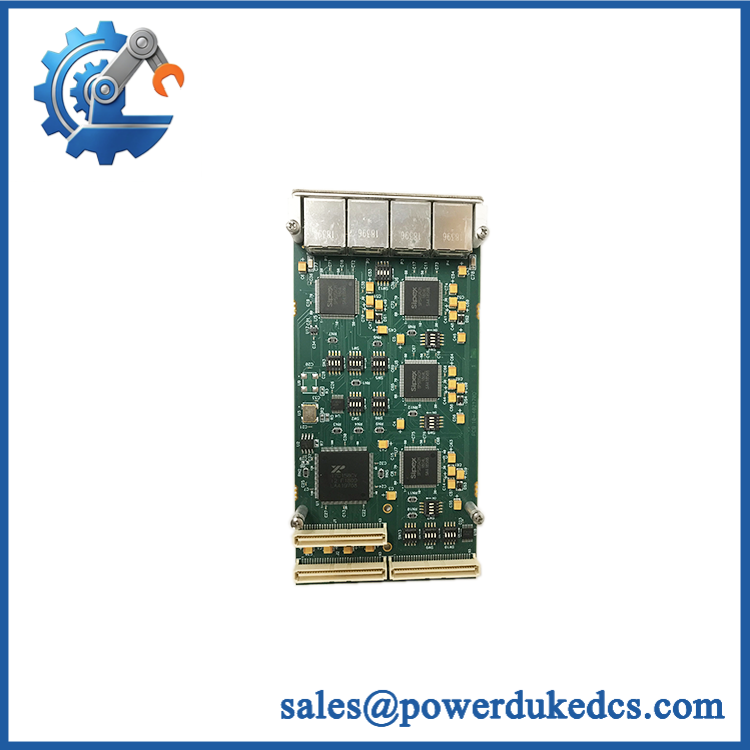

GE PMC422-LAM D2
Quality Assurance & Testing SOP
Incoming Identity Check: Record manufacturer marking, PMC422-LAM D2 part number, revision identifiers, PCB markings, connector configuration, and visible date/lot information. Compare these details against available OEM documentation before the unit enters saleable inventory.
OEM Anti-Counterfeit Visual Inspection: Inspect label quality, marking consistency, PCB workmanship, connector construction, component placement, solder condition, and board revision. Any discrepancy between the physical unit and the declared model is placed on hold for engineering review.
Mechanical Inspection: Examine the PMC edge connector, mounting points, headers, shields, and rear-I/O interfaces for bent contacts, oxidation, cracking, contamination, or evidence of unauthorized rework.
Power-On Verification: Install the card in a compatible test host and record host recognition, initialization behavior, and diagnostic results. Where the installed assembly provides ERR/RUN indicators, record the POST LED condition; where those indicators are not present, use the host and driver diagnostics as the acceptance reference.
Serial I/O Load Testing: Perform channel-by-channel loopback testing across the supported serial interface configuration. Verify transmit and receive integrity, framing, sustained data transfer, and error-free operation under repeated traffic cycles.
Configuration Check: Confirm baud-rate settings, serial mode, interrupt behavior, and any onboard switch configuration against the intended application.
Extended Run Test: Operate the module continuously under representative serial traffic and monitor communication errors, resets, host disconnects, and abnormal temperature behavior.
Final Release Record: Archive model number, revision, test host, software/driver environment, test results, inspection photographs, and packing condition before shipment.
Procurement & Lifecycle FAQ
Is the GE -LAM D2 genuinely in stock, and what is the emergency-shipping cutoff?
Availability should be confirmed against the physical warehouse lot before PO release. For emergency requirements, ask for same-day stock allocation, inspection completion, packing status, and the daily carrier cutoff in the quotation. Do not rely on a generic “in stock” status without lot confirmation.
How do you verify the condition and authenticity of an obsolete or surplus -LAM D2?
The unit should be checked against its OEM identification, PCB revision, connector arrangement, physical construction, and available technical documentation. A controlled inspection record plus pre-shipment functional testing provides a stronger basis for procurement approval than appearance alone.
Are there firmware or software compatibility issues engineers should review before issuing the PO?
The major concern is the host software environment rather than assuming a universal firmware requirement. Verify the target host, operating system or real-time environment, driver package, interrupt configuration, serial settings, and application interface. Abaco lists VxWorks media and driver packages associated with the family.
the D2 a direct replacement for a422 card?
No universal cross-revision assumption should be made. The same exact model is normally treated as a like-for-like replacement, while other variants require comparison of I/O routing, connectors, revision, configuration, and software support before approval. The OEM PMC-422 documentation confirms multiple front- and rear-I/O configurations within the family.
What warranty and return terms apply?
Warranty duration and return conditions should be stated on the quotation for the specific serial number or inventory lot. Procurement teams should confirm the coverage period, DOA procedure, RMA requirements, return window, and whether replacement or refund applies before the PO is issued.
