HIMA F8627X | New Surplus HIMA Communication Processor Module Available

At-A-Glance Executive Brief

Model: HIMA F8627X
Brand: HIMA Paul Hildebrandt GmbH
Series: HIQuad H41q / H51q Safety Instrumented System Family
Part Type: Safety Communication Interface Module
Core Function: Provides secure Ethernet-based communication between HIMA safety controllers and external automation systems.
Key Specs: SafeEthernet communication, Ethernet interface support, Modbus TCP capability, OPC communication support, designed for SIL-rated safety applications.
Typical Use: Emergency shutdown systems (ESD), burner management systems, process safety applications, and industrial safety networks.

Product Introduction

Inside a safety instrumented system, communication failure between the safety controller and supervisory systems can create diagnostic blind spots and interrupt plant operation. The HIMA F8627X is a communication interface module developed for HIMA HIQuad H41q and H51q safety controller platforms, enabling secure data exchange with external systems.

The module provides Ethernet-based communication functions, including SafeEthernet communication between HIMA systems and standard interfaces such as Modbus TCP and OPC-based connections. It is commonly used in legacy SIS installations where maintaining the existing HIMA architecture is preferred over complete system migration.

Core Technical Specifications

Parameter	Value
Manufacturer	HIMA Paul Hildebrandt GmbH
Model Number	F8627X
Product Type	Safety Communication Interface Module
System Family	HIQuad H41q / H51q
Communication Interface	Ethernet
Safety Protocol	SafeEthernet
Standard Protocol Support	Modbus TCP, OPC Communication
Network Interface	100 Base-T Ethernet
Mounting Type	Rack-Mounted Safety Controller Module
Safety Level	Up to SIL 3 Applications
Application Category	Safety Instrumented Systems (SIS)
Typical Industries	Oil & Gas, Chemical, Power Generation, Process Automation

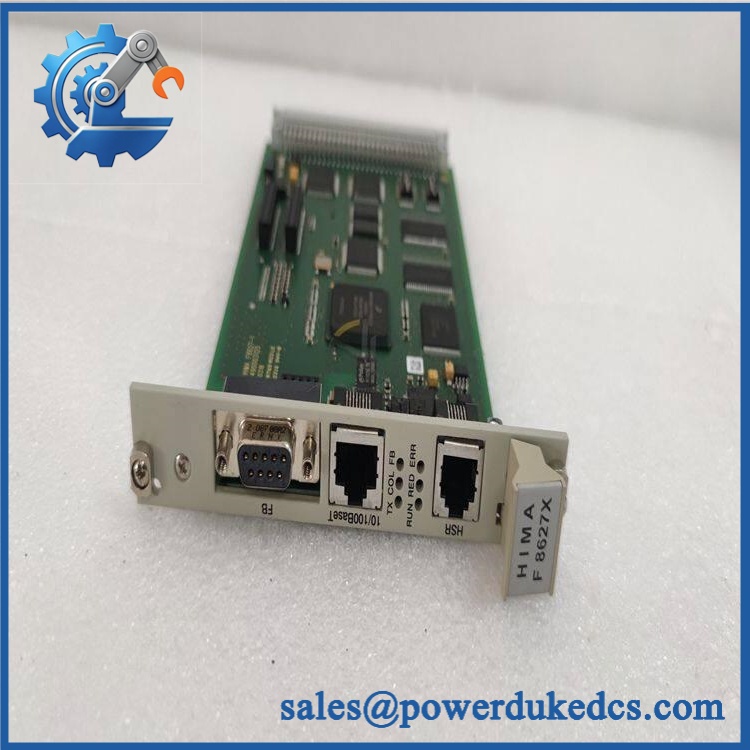

HIMA F8627X

Application Scenarios & Pain Points

During an emergency shutdown system upgrade, engineers often replace aging communication modules to restore reliable links between the SIS controller and plant monitoring systems.

In oil and gas facilities, the HIMA F8627X supports communication paths between safety controllers and higher-level systems without changing the existing H41q/H51q safety architecture.

For chemical processing plants operating continuous production lines, a failed communication interface can prevent operators from receiving safety diagnostics even when the safety logic remains active.

With the F8627X installed, safety controllers can exchange required information through approved communication channels. Without the module, external monitoring and engineering access may become unavailable.

At installations exposed to elevated cabinet temperatures above 50°C, checking power supply stability, rack ventilation, and Ethernet connection quality should be part of troubleshooting.

? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Ethernet Communication Failure / No Network Link LED
→ Diagnosis: Ethernet interface hardware fault, cable issue, or internal communication processor failure may interrupt network connectivity.
→ Action: Verify network wiring and replace module if hardware failure is confirmed.

Symptom/Code: SafeEthernet Communication Timeout Alarm
→ Diagnosis: The safety communication channel may have lost synchronization due to module failure, network disturbance, or configuration mismatch.
→ Action: Check configuration parameters and replace module if the communication fault remains.

Symptom/Code: OPC or Modbus TCP Device Offline Alarm
→ Diagnosis: Communication interface processing failure may prevent external systems from accessing HIMA controller data.
→ Action: Replace communication module and verify system diagnostics.

Cross-Reference & Lifecycle Migration

Original Model: HIMA F8627X
Related Hardware: HIMA F8627 communication module family.
System Compatibility: Designed for HIMA HIQuad H41q and H51q safety systems.
Replacement Notes: Confirm firmware version, controller type, communication configuration, and safety project compatibility before installation.
Firmware Requirement: Firmware or operating system compatibility checks may be required when replacing older F8627 hardware with F8627X revisions.
Lifecycle Status: Limited / Legacy
- Existing HIMA installations continue operating in many safety-critical plants.
- Maintaining tested spare modules is recommended where system migration is not planned.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not replace the module without checking the safety project configuration.
A communication module swap may appear successful at the hardware level while still generating controller diagnostics because network parameters do not match the existing SILworX configuration.
Check Ethernet cabling before declaring the module defective.
Loose connectors, damaged shield grounding, or incorrect network settings can produce symptoms identical to a failed F8627X.

Strict QA & Testing SOP

A professional inspection process for the HIMA F8627X includes:

Inbound Verification
- Confirm HIMA label, model number, and hardware identification.
- Check module housing and connector condition.
Visual Inspection
- Inspect PCB condition, Ethernet ports, and rack interface contacts.
- Verify there are no signs of corrosion or overheating.
Power-Up Test
- Install module into a compatible HIMA test rack.
- Verify startup sequence and diagnostic indicators.
Communication Testing
- Test Ethernet connectivity.
- Verify SafeEthernet communication functions.
- Check Modbus TCP and OPC communication where applicable.
System Integration Test
- Confirm controller recognition.
- Validate diagnostic status and communication stability.
Final Packaging
- Apply anti-static protection.
- Use shock-resistant packaging for international shipment.

Test videos and inspection records are available for qualified purchasing requests.

Buyer’s FAQ

Q1: Is the HIMA F8627X a direct replacement for F8627?

A: It belongs to the same communication module family, but compatibility depends on controller version, firmware, and safety project configuration. Always verify before replacement.

Q2: Does the F8627X support SafeEthernet communication?

A: Yes. The module is designed for secure communication within HIMA safety system architectures using SafeEthernet.

Q3: Can I install this module while the system is running?

A: Hot-swapping depends on the specific HIMA rack configuration and safety procedure. Follow the approved maintenance procedure before removing any SIS module.
