Description
- Brand: Honeywell Analytics
- Full Model Number: 05701-A-0302
- Product Family: System 57 / 5701
- Lifecycle Status: Obsolete / Discontinued by OEM
- Core Function: Single-channel catalytic gas detector control, display, and alarm card
- Top 3 Technical Specs: 18–32 VDC supply | 3.75 W typical catalytic configuration | 17 × 2.5 × 11.2 cm
- Input Configuration: Catalytic sensor input
- Indicators: LCD display | 25-segment analog display | A1/A2/A3/Fault/Inhibit LEDs
- Stock & Condition: Lot-dependent | New surplus or tested refurbished | Pre-shipment availability confirmation required
- Weight: Approximately 0.165 kg
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 5701 channel can create a disproportionately large maintenance problem when the installed System 57 architecture is already legacy. Honeywell formally phased out System 57, with the last-time-buy date set for April 30, 2017 and planned spare support through April 30, 2022. The 05701-A-0302 is specifically the catalytic-input version of the 5701 Single Channel Control Card, so finding an exact configuration matters; substituting a 4–20 mA variant is not an equivalent repair.
For plants keeping an existing System 57 installation in service, an exact replacement can preserve the installed rack, field wiring, alarm architecture, and engineering configuration rather than forcing a complete gas-detection system migration. The card operates from 18–32 VDC and typically consumes about 3.75 W in the catalytic configuration. That changes the TCO calculation: the immediate cost is the spare card and verification labor, whereas a platform replacement can introduce cabinet work, field rewiring, engineering validation, functional safety review, commissioning, and planned downtime. —For emergency maintenance, verified surplus stock can therefore have substantially lower outage exposure than waiting for a replacement architecture.
Module 4: Compatibility & Replacement Matrix
| Engineering Check | Assessment | Purchase Guidance |
|---|---|---|
| Same Honeywell 5701 System 57 rack | Drop-in Replacement when the installed unit is the same 05701-A-0302 catalytic configuration | Confirm part number, revision, connector condition, and installed configuration |
| Existing 5701 engineering configuration | Configuration Compatible; card settings and system configuration still require verification | Record existing configuration before removal |
| Firmware / configuration revision | Site verification required | Compare revision and configuration data before energizing the replacement |
| Replacing 05701-A-0301 | Not a like-for-like substitution | 0301 is the 4–20 mA version; 0302 is the catalytic version |
| Replacing with a modern gas detection platform | Hardware Modification Required | Cabinet, wiring, engineering, testing, and commissioning work should be budgeted |
| Typical switch effort | Same-card replacement: approximately 1–4 labor hours for a prepared maintenance team | Include isolation, configuration capture, replacement, power-up, alarm verification, and functional testing |
| Full platform migration | Project-scale activity | Engineering and commissioning effort can extend from days to weeks depending on site scope |
Field Traps — Watch Out
Input configuration mismatch: The 05701-A-0302 is the catalytic-input control-card variant. Honeywell documentation identifies 05701-A-0301 as the separate 4–20 mA version. Do not substitute between the two solely because the mechanical format appears similar.
Remote input and analog-output limits: Where the optional analog-output module is installed, Honeywell specifies a maximum loop voltage of 40 V. The RESET and INHIBIT remote inputs should not be exposed to more than 32 V. Shield and grounding arrangements also require attention to prevent earth-loop problems.

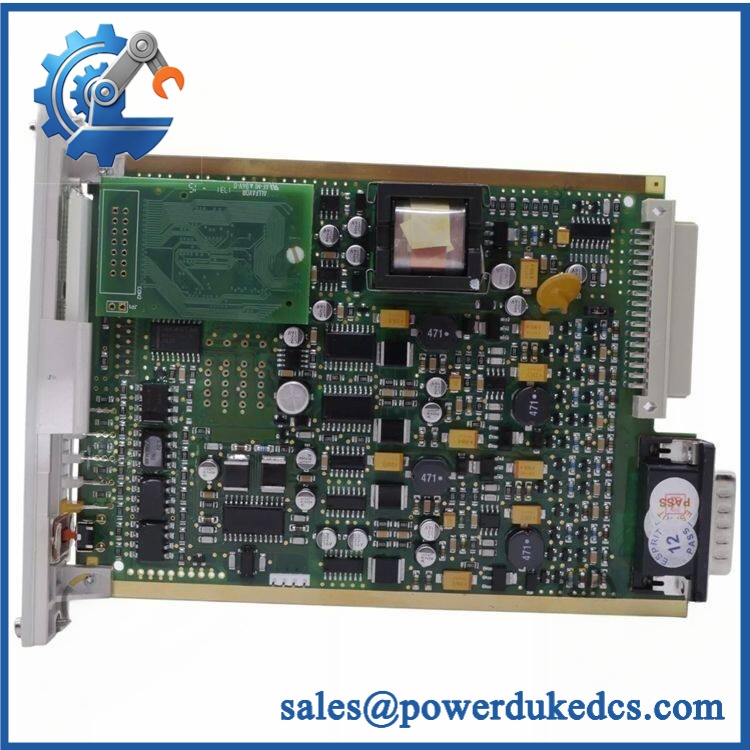

Honeywell 05701-A-0302
Module 5: Quality Assurance & Testing SOP
Legacy safety-system cards require a documented inspection trail before installation. A practical pre-shipment protocol for the 05701-A-0302 should include:
- OEM anti-counterfeit visual inspection: Verify Honeywell/Sieger markings, part number, labeling, connector condition, board construction, and serial or batch information against the expected 5701 hardware configuration.
- Mechanical inspection: Check PCB, card edge, connector pins, mounting hardware, display assembly, and front-panel controls for damage, oxidation, contamination, or evidence of unauthorized rework.
- Electrical inspection: Confirm supply-path integrity and inspect for damaged components, cracked solder joints, burned areas, or degraded insulation.
- Power-on self-test (POST): Energize the card under controlled bench conditions and verify expected startup behavior, LCD operation, and A1/A2/A3, Fault, and Inhibit indicator operation.
- Catalytic-input simulation: Apply an appropriate controlled test signal through a compatible test arrangement and verify stable channel indication and alarm response.
- Alarm verification: Check configured alarm thresholds and confirm reset behavior through the front-panel control.
- Remote-input verification: Where applicable, test RESET and INHIBIT operation against the installed configuration. Honeywell specifies these inputs as configurable for active-high or active-low operation.
- Analog-output verification: Where an optional 05701-A-0285 module is fitted, verify the configured 0–20 mA or 4–20 mA behavior under a controlled load.
- Extended stability observation: Monitor powered operation for abnormal temperature rise, display instability, nuisance alarms, or intermittent faults.
- Final QA record: Record model number, revision, serial/batch information, test results, visible condition, configuration observations, and packaging status before dispatch.
The objective is not simply to prove that the card powers on. The test should demonstrate that the replacement behaves correctly within the operating logic expected of a System 57 channel.
Module 6: Procurement & Lifecycle FAQ
Is the Honeywell 05701-A-0302 genuinely in stock, and what is the cutoff for emergency shipping?
Because this is an obsolete Honeywell part, inventory is normally source- and lot-dependent rather than supported through current OEM production. Availability should be confirmed against the exact part number before a PO is released. For emergency requirements, request same-day stock confirmation and a defined shipping cutoff rather than relying on a generic lead-time estimate.
How do you guarantee the condition and authenticity of an obsolete 05701-A-0302?
The appropriate control is serial/batch identification, OEM marking inspection, physical examination, electrical testing, functional verification, and a documented pre-shipment test record. Honeywell documentation identifies 05701-A-0302 as the 5701 catalytic Single Channel Control Card, providing a reference configuration against which the received unit can be checked.
Are there firmware or configuration compatibility issues engineers should check before issuing the PO?
Yes. The 5701 card stores software configuration in EEPROM, and relay behavior, remote-input polarity, alarm settings, and optional analog-output behavior can depend on the installed configuration. Capture the existing configuration before removing the failed card and verify the replacement against it during commissioning.
Is 05701-A-0302 interchangeable with 05701-A-0301?
No. Honeywell identifies 05701-A-0301 as the 4–20 mA Single Channel Control Card and 05701-A-0302 as the catalytic version. The input technology must match the field detector architecture.
What warranty and return terms should be included in the purchase?
For obsolete or surplus equipment, warranty terms should be stated explicitly on the quotation or PO acknowledgment, including coverage period, DOA provisions, functional-failure criteria, return authorization requirements, and whether the warranty applies to replacement, repair, or refund. Do not assume that a discontinued Honeywell factory warranty remains applicable.
