Honeywell 05701-A-0302 | 5701 Catalytic Control Card Module

Description

• Brand: Honeywell Analytics
• Full Model Number: 05701-A-0302
• Lifecycle Status: Discontinued / Legacy
• Core Function: Single-channel control, display, and alarm processing for catalytic gas detectors
• Top 3 Technical Specs: 18–32 VDC supply; 3.75 W typical catalytic power consumption; 25-segment analog LCD display
• Sensor Configuration: Catalytic
• Drive Module: 05701-A-0284 catalytic sensor drive
• Alarm Indication: A1, A2, A3, Fault, Inhibit LEDs
• Configuration Storage: EEPROM
• Dimensions: Approx. 170 × 25 × 112 mm
• Weight: Approx. 0.165 kg
• Stock & Condition: New Surplus / Tested Refurbished — physical stock confirmation required

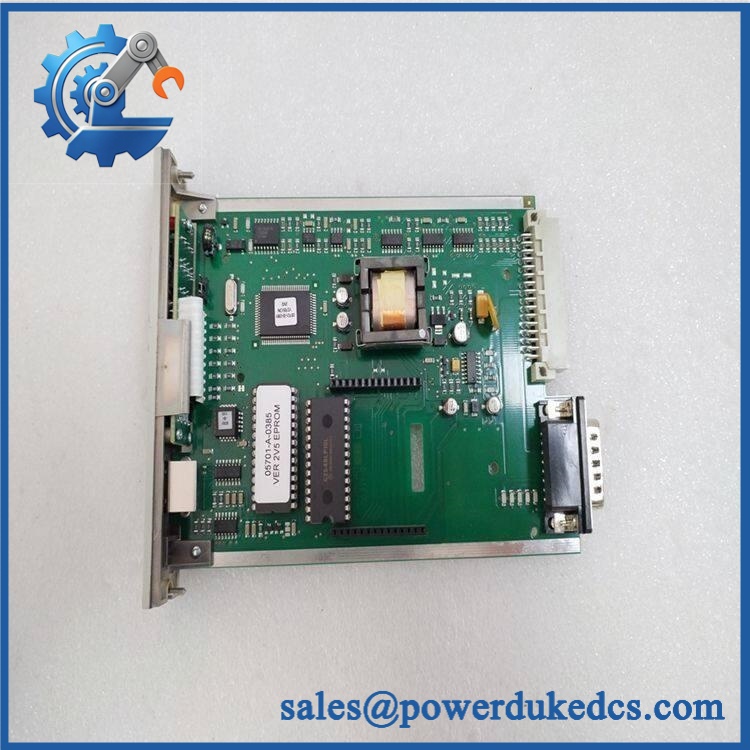

Honeywell’s System 57 documentation identifies 05701-A-0302 as the Single Channel Control Card configured for catalytic input. The card includes the corresponding catalytic sensor-drive module and provides local display and alarm functions.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 05701-A-0302 can create a very specific maintenance problem: the plant may still have a functioning System 57 rack and detector loop, but the channel-control card required to display gas concentration and process alarms is no longer readily available through normal product procurement. Honeywell specifies this part for catalytic gas detector applications, with a microprocessor-controlled architecture, front-panel display, alarm LEDs, alarm-reset/card-select push-button, and EEPROM-based configuration storage. The distinction from 05701-A-0301 is important because -0301 is the 4–20 mA version, while -0302 is specifically the catalytic configuration.

For a plant maintaining an installed System 57 safety or gas-monitoring channel, a verified surplus 05701-A-0302 can avoid replacing the complete rack or redesigning the detector interface simply because one control card failed. Honeywell’s own product guide lists the 05701-A-0302 among System 57 spare parts, while current market records classify the part as discontinued. The TCO advantage is therefore straightforward: preserve the existing rack, field wiring, detector arrangement, and alarm philosophy when those assets remain serviceable. —The key procurement risk is obtaining the catalytic version with the correct sensor-drive configuration, not merely finding a card carrying a similar 05701 prefix.

Module 4: Compatibility & Replacement Matrix

Honeywell documentation states that the 05701-A-0302 consists of a single-channel control card fitted with the corresponding plug-in catalytic sensor-drive module.

Field Traps — Watch Out

• Catalytic vs. 4–20 mA mismatch: 05701-A-0302 is not interchangeable with 05701-A-0301 merely because both are 5701 single-channel cards. Honeywell specifies -0302 for catalytic input and -0301 for 4–20 mA input.
• Sensor-drive verification: The -0302 configuration uses the 05701-A-0284 catalytic sensor drive module. Confirm that the supplied card has the correct drive configuration before installation.
• Calibration state: A replacement control card should not be assumed to inherit the failed card’s detector calibration. Verify configuration and perform the required channel calibration after installation according to the site’s gas-detection procedure.

Honeywell 05701-A-0302

Module 5: Quality Assurance & Testing SOP

This is gas-detection control hardware. QA should focus on identity, sensor-drive configuration, power-up behavior, alarm operation, and controlled detector simulation.

1. Identity & Authenticity Verification

• Verify Honeywell Analytics / System 57 identification.
• Confirm exact part number 05701-A-0302.
• Perform OEM anti-counterfeit visual inspection of labels, PCB markings, connectors, display assembly, LEDs, push-button, and sensor-drive interface.
• Record serial number, manufacturing information, and visible hardware revision.
• Photograph the card before testing.

2. Physical Inspection

• Inspect the PCB for corrosion, contamination, cracked components, discoloration, or unauthorized repair.
• Check the plug-in catalytic sensor-drive module.
• Inspect all connector pins and card-edge contacts.
• Verify the LCD, alarm LEDs, and push-button have no mechanical damage.

3. Power-On Self-Test

• Mount the card in a compatible System 57 test rack.
• Apply a controlled 18–32 VDC supply.
• Perform power-on self-test.
• Confirm correct LCD initialization and channel status.
• Check A1, A2, A3, Fault, and Inhibit indicators during startup.
• Monitor current consumption for abnormal behavior.

4. Catalytic Input Functional Test

• Use a calibrated catalytic-sensor simulator or approved test arrangement.
• Verify gas-reading response across the operating range.
• Confirm alarm threshold transitions.
• Test alarm reset/card-select operation.
• Verify fault-state behavior when the simulated sensor/input is interrupted.

5. Display & Alarm Verification

• Confirm the analog bar display responds correctly.
• Verify the four-character gas-reading display.
• Verify the message section.
• Trigger A1/A2/A3 conditions independently.
• Confirm Fault and Inhibit indication states.

6. Stability & Calibration Check

• Run the card continuously under controlled simulated input.
• Monitor display stability, alarm status, supply behavior, and sensor-drive output.
• Check configuration retention after controlled power cycling.
• Record calibration/test results against the serial number.
• Issue a QC/Test Report before shipment.

The documented 05701-A-0302 specification includes a catalytic drive using constant-current operation, 18–32 VDC supply, and approximately 3.75 W typical power consumption for catalytic operation.

Module 6: Procurement & Lifecycle FAQ

Q1. Is Honeywell 05701-A-0302 genuinely in stock, and what is the emergency-shipping cutoff?
Physical inventory should be confirmed against the exact 05701-A-0302 number before the PO is released. For an outage, obtain written confirmation of quantity, condition, test status, and same-day dispatch cutoff. Several current listings describe availability, but inventory claims are supplier-specific and should be verified against the physical unit.

Q2. How do you verify the condition and authenticity of a surplus 05701-A-0302?
Require exact part-number verification, OEM marking inspection, PCB and connector inspection, catalytic-drive identification, controlled rack power-up, display verification, alarm testing, simulated detector-input testing, and a serial-number-specific QC/Test Report. A visual inspection alone is insufficient for gas-detection control hardware.

Q3. Are there compatibility issues engineers should check before issuing the PO?
Yes. First confirm that the existing channel is configured for a catalytic detector. The 05701-A-0302 is specifically the catalytic version, while 05701-A-0301 is the 4–20 mA version. Also verify the installed catalytic sensor-drive configuration and perform the required calibration after installation.

Q4. Can I use 05701-A-0302 without replacing the entire System 57 rack?
For an existing compatible installation, the card is designed as a System 57 single-channel control card and can normally be exchanged without redesigning the complete rack. The critical checks are card type, detector technology, sensor-drive arrangement, rack compatibility, and post-installation calibration.

Q5. Is 05701-A-0302 still a current product, and what should long-term buyers do?
Procurement teams should treat 05701-A-0302 as discontinued/legacy stock. Honeywell’s System 57 documentation lists it as a spare, while current supplier records identify the item as discontinued. For plants that will keep System 57 in service, maintaining verified spare-card inventory is a practical lifecycle strategy because replacing the card can be substantially less disruptive than redesigning an installed gas-detection channel.
