Description
- Brand: Honeywell Analytics
- Full Model Number: 05701-A-0361
- Lifecycle Status: Obsolete / Phased Out
- Product Family: System 57 / 5701 Control System
- Core Function: Engineering interface card for System 57 rack commissioning, operation, monitoring, calibration, and backplane communication
- Top 3 Technical Specs: 18–32 VDC supply | 1.5 W typical power consumption | 132 × 25 × 170 mm
- Interface: RS232 engineering interface / Mini-DIN socket
- Controls: Up/Down, Reject/Accept, Print functions
- Status Indicators: Power On green LED | Unlocked red LED
- Stock & Condition: New surplus / tested refurbished options subject to current inventory
- Shipping: Emergency dispatch subject to stock confirmation and order cutoff
Honeywell’s own System 57 product documentation identifies 05701-A-0361 specifically as the Engineering Card.
Module 3: Obsolescence & Supply Chain Deep Dive
When a System 57 rack loses its engineering card, the problem is not simply the replacement of a circuit board. The 05701-A-0361 provides the common engineering interface required to commission and operate fitted control cards, including alarm checking, sensor zero/span adjustment, inhibit functions, system-clock management, and backplane communications. Honeywell documentation places the card in the right-hand rack position and specifies its role in routing the 24 VDC supply and managing rack serial communications.
For an installed System 57 asset, sourcing a matching legacy card can be substantially less disruptive than replacing an entire gas-detection control architecture. The 05701-A-0361 uses an 18–32 VDC supply and has a typical 1.5 W consumption, making it a relatively small intervention compared with cabinet rewiring, field-device migration, engineering changes, validation, and shutdown planning. Honeywell’s current product material still lists the part number among System 57 spares, while independent lifecycle listings identify it as discontinued or phased out.
Module 4: Compatibility & Replacement Matrix
| Approval Item | Assessment |
|---|---|
| Replacement Type | Drop-in hardware replacement when matched to the existing System 57/5701 rack configuration |
| System Compatibility | Honeywell System 57 rack |
| Electrical Supply | 18–32 VDC |
| Typical Power | 1.5 W |
| Physical Installation | 25 mm wide × 132 mm high × 170 mm deep |
| Engineering Interface | RS232 via Mini-DIN interface |
| Hardware Modification | Normally not required for a like-for-like 05701-A-0361 replacement |
| Firmware Action | No generic firmware-flash requirement established for a direct same-part replacement |
| Estimated Field Time | Approximately 30–90 minutes for an experienced technician, excluding isolation, functional verification, and site permit requirements |
| Estimated Engineering Cost | Primarily labor and validation cost; normally far below a full System 57 architecture migration |
⚠️ Field Traps — Watch Out
1. Rack-position error: The engineering card is specified for the right-hand slot of the System 57 rack. Installing a physically similar card in the wrong position can prevent expected rack functions from operating correctly.
2. Revision and configuration verification: Do not approve the PO solely from the base part number. Compare the existing card’s revision markings, connectors, front-panel controls, and engineering-key arrangement before shipment. For an emergency replacement, photograph the installed card and rack before removal.

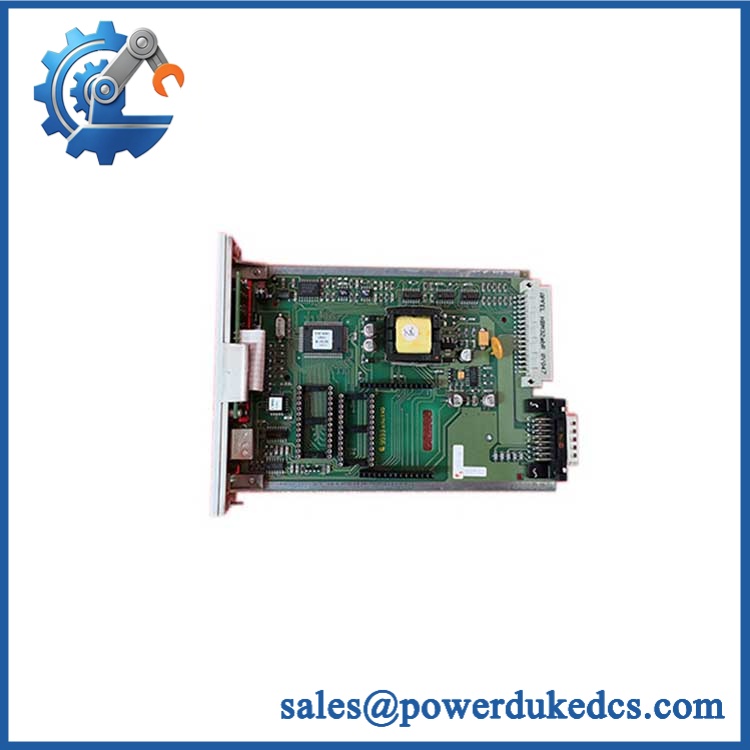

Honeywell 05701-A-0361
Module 5: Quality Assurance & Testing SOP
A legacy part should not be shipped solely because its label matches the requested part number.
Incoming Inspection
- Verify manufacturer marking and part number: 05701-A-0361
- Record serial number and visible revision markings
- Inspect PCB, edge contacts, connectors, keypad, LEDs, and Mini-DIN interface
- Check for corrosion, contamination, cracked solder joints, damaged components, or unauthorized rework
- Perform OEM anti-counterfeit visual inspection against available reference documentation
Electrical Verification
- Confirm supply-path integrity before energization
- Verify expected operation across the specified 18–32 VDC input range where test equipment and procedures permit
- Check standby/current behavior against the applicable test specification
- Verify grounding and electrical isolation requirements before functional testing
Functional Test
- Install the card in an appropriate System 57 test rack
- Perform power-on self-test (POST) and inspect Power On / Unlocked LED behavior
- Verify front-panel push-button response
- Confirm backplane serial communication
- Test the RS232 engineering interface
- Verify engineering functions including alarm checking, zero/span functions, inhibit control, and clock functions where the test configuration supports them
- Conduct I/O and rack-level functional testing
Final QC
- Record test results against the serial number
- Photograph the tested assembly
- Verify accessories and engineering-key requirements where applicable
- Package using ESD protection and mechanical cushioning
- Attach QC identification and retain the test record with the shipment
The documented System 57 engineering functions include self-validation of circuit components, software operation, and backplane communications, providing clear functional checkpoints for this type of pre-shipment inspection.
Module 6: Procurement & Lifecycle FAQ
Is the Honeywell 05701-A-0361 genuinely available for emergency shipment?
Availability depends on the physical unit currently held in inventory. Because this is an obsolete/phased-out component, emergency orders should be confirmed against the actual warehouse quantity rather than relying on a catalog listing. The shipping cutoff should be confirmed at quotation stage, together with the unit’s condition, serial number, and test status.
How do you verify the condition and authenticity of an obsolete 05701-A-0361?
The recommended process is serial-number recording, manufacturer/part-number inspection, PCB and connector inspection, electrical verification, rack-level functional testing, and photographic QC documentation. New-surplus and refurbished units should be clearly identified rather than presented as factory-new without evidence.
Could firmware or revision compatibility cause a problem?
Potentially. The 05701-A-0361 is a system-level engineering interface, so the replacement should be compared against the installed System 57 configuration before the PO is released. Do not assume that every historical revision is interchangeable solely because the base part number is identical.
What warranty should procurement request?
Specify the warranty in the quotation or PO and require the supplier to state whether the coverage applies to new surplus, used, or tested refurbished stock. The warranty should cover the supplied unit against functional failure under normal operating conditions and define the return authorization procedure.
Is replacing the 05701-A-0361 preferable to upgrading the complete gas-detection system?
For an otherwise serviceable System 57 installation, a verified like-for-like replacement can avoid the engineering, panel modification, field wiring, commissioning, validation, and downtime costs associated with a complete system migration. The economic decision should therefore compare the replacement part’s acquisition cost and remaining support horizon against the TCO of a planned System 57 modernization.
