Description
- Brand: Honeywell Analytics
- Full Model Number: 05701-A-0361
- Lifecycle Status: Obsolete / System 57 phased out
- Core Function: System 57 Engineering Card for rack control, commissioning, monitoring, and configuration access
- Top 3 Technical Specs: 18–32 VDC supply; RS232 engineering interface; 24 VDC backplane power routing
- Stock & Condition: New Surplus / Tested Refurbished; physical stock confirmation required; emergency dispatch subject to cutoff
Honeywell’s product documentation identifies 05701-A-0361 as the System 57 Engineering Card. The card occupies the right-hand slot of the rack and provides the operator interface, engineering communication, backplane communications control, system clock reference, and self-validation functions.
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 05701-A-0361 can leave an installed System 57 rack without its normal engineering and operator interface, complicating commissioning, alarm-setpoint checks, calibration functions, and access to system diagnostics. The card also routes the 24 VDC supply from the DC Input Card to the rack backplane and manages serial communication across the backplane. Honeywell documentation confirms that System 57 was phased out, with the last-buy date stated as April 30, 2017 and planned spare support through April 30, 2022.
For plants retaining this installed safety and gas-detection architecture, sourcing a tested 05701-A-0361 can be economically preferable to replacing the entire System 57 rack. The card preserves the existing field wiring, rack structure, control cards, engineering procedures, and site documentation. Its value is therefore tied to avoided engineering and outage costs, not simply the purchase price. —For a legacy gas-detection installation, keeping one verified spare can reduce exposure to a difficult-to-source single-point interface component.
Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)
| Purchase / Migration Case | Compatibility Assessment | Typical Switch Effort |
|---|---|---|
| Replace failed 05701-A-0361 with the same part number | Drop-in Replacement | 30–90 minutes for isolation, installation, and functional verification |
| Replace with another 05701-A-0361 revision approved for the same System 57 rack | Software Compatible | 1–2 hours including engineering-interface verification |
| Substitute a different System 57 engineering/interface card | Hardware Modification / Engineering Review Required | 2–8 hours |
| Replace the entire System 57 engineering architecture | Hardware Modification | 1–3+ days depending on cabinet and migration scope |
Honeywell specifies that the Engineering Card is installed in the right-hand slot of the System 57 rack. Its functions include backplane serial communication, RS232 external engineering access, system clock management, control-card adjustment functions, and self-validation of its circuitry, software operation, and backplane communications.
Field Traps — Watch Out
Slot Position: Do not install the card in an arbitrary open position. Honeywell documentation states that the Engineering Card is always fitted in the right-hand slot of the rack.
Engineering Key / Access Control: The front-panel engineering interface is not simply a general-purpose serial port. The Engineering Key is used to unlock functions that can change control-card operation, so verify that the required key and engineering accessories remain available at the site.

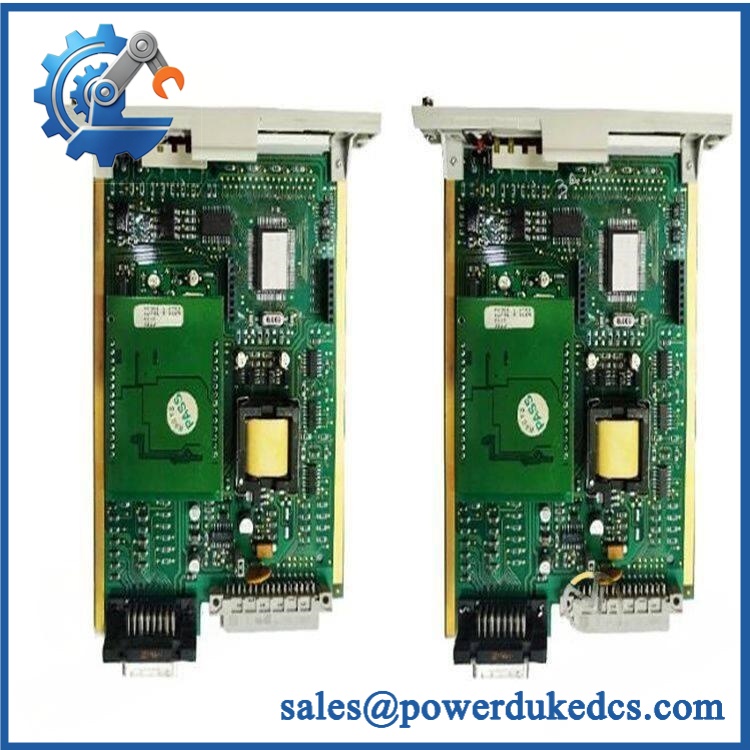

Honeywell 05701-A-0361
Module 5: Quality Assurance & Testing SOP
1. Part Identity Verification
Record the complete 05701-A-0361 part number, manufacturer markings, revision information, and serial or lot data where available. Confirm that the board corresponds to the System 57 Engineering Card configuration.
2. OEM Anti-Counterfeit Visual Inspection
Inspect the front panel, keypad, LEDs, mini-DIN interface, PCB markings, connectors, labels, card-edge contacts, and manufacturer identification. Compare construction details against known System 57 hardware.
3. Mechanical Inspection
Check the card PCB, front-panel assembly, mounting hardware, connector alignment, card-edge contacts, and enclosure clearances. Reject units with corrosion, cracked boards, bent contacts, liquid contamination, or evidence of unauthorized repair.
4. Electrical Safety and Continuity Checks
Inspect the 24 VDC supply path and verify continuity through relevant power and ground connections. Check for unintended shorts between supply, signal, and backplane communication circuits.
5. Power-On Self-Test
Install the card in a compatible System 57 test rack and apply controlled DC power. Verify expected rack-power indications, communication indications, keypad response, and absence of diagnostic faults. The Engineering Card also performs self-validation of circuit components, software operation, and backplane communications.
6. Engineering Interface Test
Test the RS232 external engineering interface through a controlled test connection. Verify serial communication, front-panel keypad operation, and response to authorized engineering commands.
7. Backplane Communication Test
Connect representative System 57 control cards and verify stable communication across the rack backplane. Confirm that the Engineering Card can interact with the installed control-card functions.
8. Functional Control Test
Where the test rack permits, verify representative alarm-setpoint checks, sensor signal adjustment functions, alarm inhibit operation, and clock functions. Do not alter customer-specific operating parameters during testing.
9. Extended Operating Test
Operate the card under representative rack conditions and monitor communication stability, supply behavior, keypad operation, LED status, and intermittent faults.
10. Final QC Record
Record part number, serial information, inspection results, measured supply conditions, interface-test results, rack-test outcome, and QC disposition. Package the card in ESD-safe protective material before shipment.
Module 6: Procurement & Lifecycle FAQ
Q1. Is Honeywell 05701-A-0361 genuinely in stock, and what is the cutoff for emergency shipping?
The part is a legacy System 57 spare. Honeywell’s current spare-parts pages still identify 05701-A-0361 as a System 57 Engineering Card, while Honeywell’s product guide states that the System 57 platform was phased out and planned spare support ended April 30, 2022. Physical inventory should therefore be confirmed before an emergency PO, with same-day dispatch based on the supplier’s actual stock location and order cutoff.
Q2. How do you guarantee the condition and authenticity of an obsolete or surplus engineering card?
Require exact part-number verification, manufacturer-marking inspection, PCB and connector inspection, controlled 24 VDC power-up, RS232 communication testing, keypad verification, and System 57 rack-level backplane testing. A traceable QC report should accompany the unit.
Q3. Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Yes, but the primary concern is the System 57 hardware and software environment, rather than treating the card as a standalone PLC CPU. Verify the installed rack type, control-card configuration, engineering-key requirements, and any site-specific System 57 software procedures. The Engineering Card includes its own software/self-validation functions and controls access to several configuration operations.
Q4. Is 05701-A-0361 interchangeable with other System 57 cards?
No. Honeywell lists 05701-A-0361 specifically as the Engineering Card, while other part numbers correspond to DC input cards, control cards, sensor-drive modules, analog-output modules, field-interface cards, and relay cards. These functions are not interchangeable.
Q5. What warranty and return terms should procurement require?
Specify a written functional warranty, inspection period, RMA procedure, and return conditions on the quotation and PO. Coverage should distinguish card failure from damage caused by incorrect 24 VDC supply, improper slot installation, unauthorized engineering-key operations, wiring faults, or customer-side rack problems.
