ICS Triplex T8111C | OEM Safety System Processor

1. ICS Triplex T8111C | OEM Safety System Processor

Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T8111C
• Product Family: ICS Triplex Trusted™ TMR Safety System.
• Product Type: Trusted Triple Modular Redundant (TMR) Processor Module used as the main processing unit within ICS Triplex safety controller systems.
• Primary Function: Executes safety logic, system diagnostics, communication management, and I/O data processing across the Trusted TMR architecture.
• Processor Architecture: Three independent processing channels operating with fault comparison and voting mechanisms.
• Approximate Physical Dimensions:
  • Height: 266 mm
  • Width: 93 mm
  • Depth: 303 mm
• Estimated Shipping Weight: Approximately 1.9–2.0 kg including ESD packaging.
• Mounting Style: Trusted Controller chassis slot mounting with rear backplane connection.
• Mechanical Construction:
  • Industrial multilayer PCB assembly
  • Front extraction handle
  • Status indicator LEDs
  • Rear backplane connector
  • Protective metal/plastic module enclosure
• Communication Interfaces:
  • RS-232 front service port
  • RS-422/RS-485 rear communication interfaces
  • Modbus RTU support
• Memory Resources:
  • Retained variable storage
  • Application memory capacity up to approximately 960 KB
  • Sequence of Events buffer support
• Cooling Hardware:
  • Internal processor electronics
  • Cabinet forced-air cooling required
• What’s in the Box:
  • ICS Triplex T8111C Trusted TMR Processor
  • Anti-static ESD shielding bag
  • Protective foam packaging
  • Documentation when supplied

Product Introduction

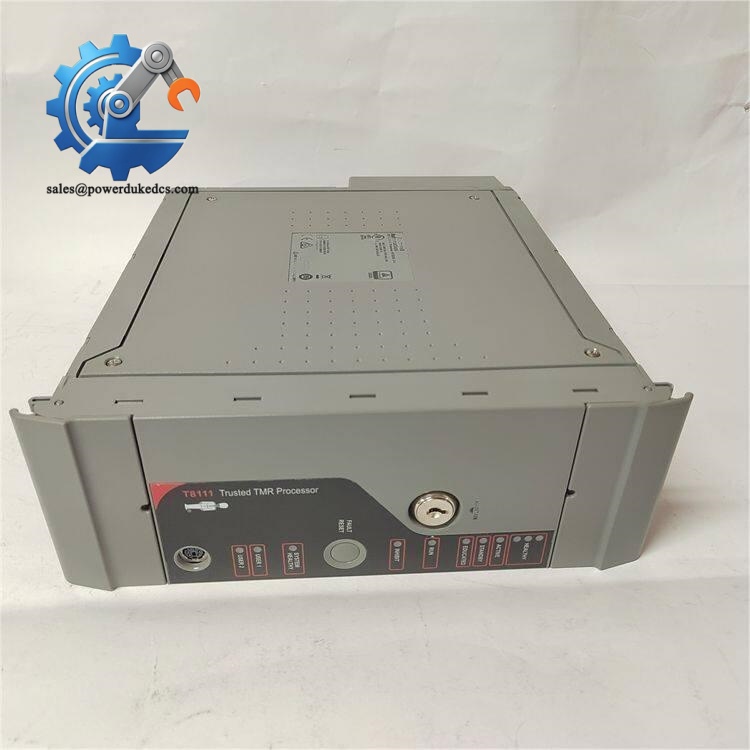

The ICS Triplex T8111C installs as the primary processor module inside a Trusted TMR safety controller chassis. Three processing channels execute identical control functions, while internal diagnostics continuously compare operation and identify faults without immediately interrupting the safety application (which is critical for emergency shutdown and high-consequence process protection systems).

Treat this processor as a controlled safety lifecycle asset. Inspect the extraction handle, rear connector, identification label, and enclosure condition before installation. Check the storage history. Long-term warehouse exposure can affect connector surfaces, internal battery-related components, and configuration records.

Core Technical Specifications

ICS Triplex T8111C

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex T8111C include:

• CE Mark — applicable when installed within a compliant Trusted safety system cabinet meeting EMC and low-voltage requirements.
• IEC 61508 SIL 3 Capability — supports safety instrumented functions when applied within an approved safety lifecycle and validated architecture.
• UL/cUL Recognition — normally evaluated as part of the complete Trusted controller system.
• ATEX/IECEx — hazardous-area deployment requires certified barriers, enclosure design, and complete system approval.
• Marine Approvals (DNV GL, ABS, LR) — applicable only when integrated into approved marine automation systems.
• EMC Compliance — depends on cabinet grounding, shielding, cable routing, and installation practices.

For safety audits, maintain the processor serial number, hardware revision, firmware records, and controller configuration documents together.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside its original anti-static (ESD) shielding bag. The processor assemblies and backplane interface require protection from electrostatic exposure.
• Maintain warehouse humidity below 60% RH. Moisture can increase oxidation risk on rear connector contacts and reduce long-term reliability.
• Store the module in a clean cabinet away from corrosive gases, conductive dust, and vibration sources.

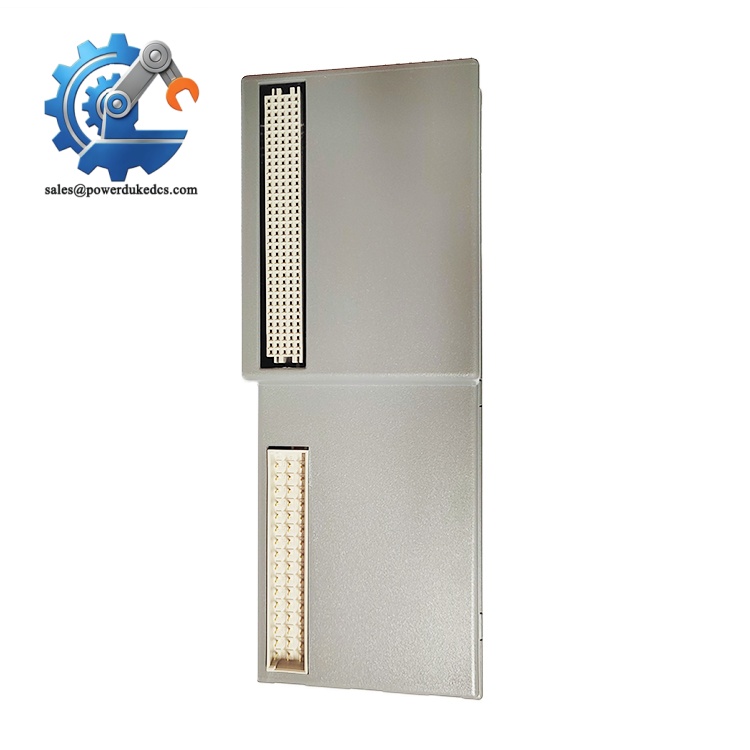

• Inspect the rear connector pins and extraction mechanism before installation. Do not use abrasive cleaning methods on connector surfaces.
• Record firmware version, hardware revision, serial number, and storage inspection date in the spare asset database.

ICS Triplex T8111C

Physical Installation Prerequisites

• Install the ICS Triplex only in the approved Trusted T8000 controller chassis.
• Verify chassis slot assignment and mechanical keying before insertion.
• Confirm redundant 24VDC supply wiring and cabinet protective earth bonding.
• Ensure controller rack cooling fans are operational before startup.
• Maintain airflow clearance around the chassis. Leave at least 50 mm above and below rack assemblies where cabinet cooling depends on convection paths.
• Inspect the rear backplane connector before insertion.
• Use ESD protection during handling.
• Verify controller firmware, application database, and safety configuration compatibility before returning the system to service.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the ICS Triplex ?

A: Industrial safety controller modules are commonly reviewed under electrical control equipment classifications, often within 8537 or 8538 categories. The final HS classification depends on the importing country, declared function, and customs interpretation.

Q: Why does Country of Origin (COO) documentation matter for the ?

A: COO records support customs clearance, supplier qualification, warranty tracking, and safety system traceability. Keep the module label, serial number, and commercial documents together.

Q: Should shipping insurance be purchased for this processor module?

A: Recommended. The contains processor electronics, communication interfaces, and precision backplane connectors. Transport shock or moisture exposure may not be visible until system diagnostics are performed.

Q: Does the include the latest firmware pre-loaded?

A: The module contains factory-installed firmware, but the final Trusted application depends on the approved controller configuration. Verify firmware revision, application compatibility, and safety documentation before replacement.
