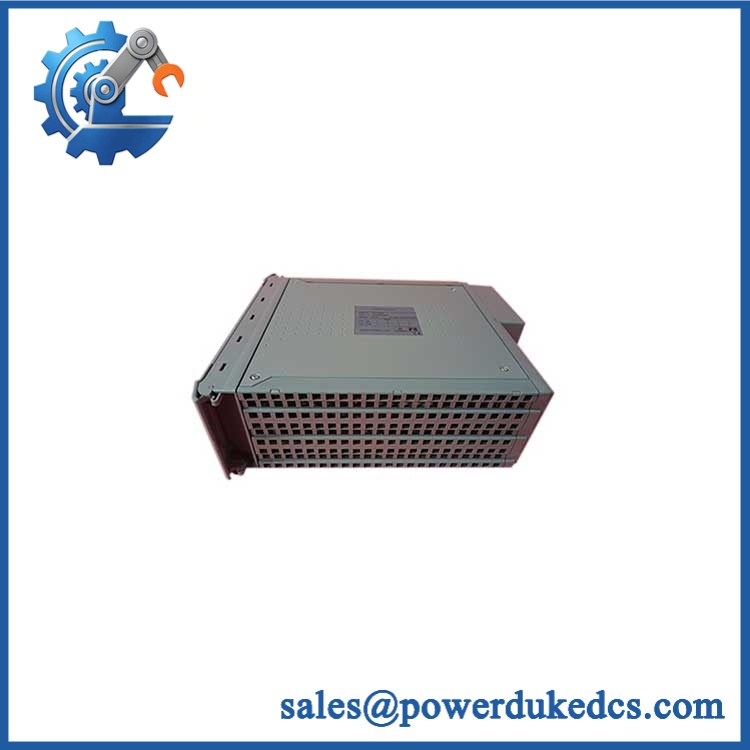

ICS Triplex T8231 | Trusted TMR Power Pack Module

• Brand: ICS Triplex
• Full Model Number: T8231
• Lifecycle Status: Legacy / Supported as spare inventory
• Core Function: Trusted TMR Power Pack
• Top 3 Technical Specs: 24 VDC output; 750 W rated power; universal AC input
• Input Voltage: 85–264 VAC class / universal mains input
• Output: 24 VDC, up to 750 W
• System Family: Trusted TMR Power System
• Architecture: Redundant / N+1 power configurations
• Hot Swap: Supported
• Weight: Approx. 2.7 kg
• Stock & Condition: New Surplus / Tested Refurbished — physical stock confirmation required

Rockwell Automation’s Trusted documentation lists T8231 as a 750 W, 24 VDC Power Pack used with the Trusted power shelf. The same migration documentation specifies two T8231 units for the recommended Trusted configuration.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed T8231 can disable one power path inside a Trusted safety-system cabinet even when the processors and I/O remain healthy. This is not a controller CPU. It is the power-conversion module used in the Trusted Power System, converting incoming mains power into the DC rail required by the safety-system hardware. Rockwell’s own migration documentation identifies T8231 as a 750 W, 24 VDC Power Pack, while current technical listings describe redundant and N+1 operating arrangements plus hot replacement capability. That makes exact replacement important: a generic industrial power supply may have the right nominal voltage yet still lack the required mechanical, diagnostic, load-sharing, and system-interface characteristics.

For an installed Trusted TMR system, replacing a failed T8231 is usually far less expensive than redesigning the entire power architecture. The economic benefit comes from retaining the existing T8240 power shelf, DC distribution, cabinet wiring, load-sharing arrangement, and safety-system validation. Rockwell’s migration material specifically uses modules with the Trusted power shelf, confirming its role as a system-level component rather than a standalone general-purpose supply. —The procurement challenge is lifecycle availability: current supplier records show long lead times and mixed stock positions, so tested spare inventory can materially reduce outage exposure.

ICS Triplex T8231

Module 4: Compatibility & Replacement Matrix

Rockwell’s Trusted migration documentation explicitly specifies T8240 as the power shelf and as the 750 W / 24 VDC Power Pack, providing the clearest basis for replacement approval.

Field Traps — Watch Out

• vs. T8231C: Do not automatically substitute the T8231C harsh-environment/conformal-coat variant for without checking the project BOM and environmental requirements. Current technical records distinguish the two variants.
• Power-shelf compatibility: is intended to operate as part of the Trusted Power System. Verify the installed shelf, slot arrangement, DC architecture, and load requirements before approving the spare.
• Hot-swap procedure: Although hot replacement is supported, the maintenance procedure must account for the resulting redundancy state. Do not remove a power pack without confirming that the remaining supply capacity is adequate for the actual cabinet load.

Module 5: Quality Assurance & Testing SOP

For a safety-system power pack, QA should prove both electrical performance and correct interaction with the redundant power architecture.

1. Identity & Authenticity Verification

• Verify ICS Triplex identification and exact part number .
• Record serial number, date code, hardware revision, and visible manufacturing information.
• Perform OEM anti-counterfeit visual inspection of labels, housing, connectors, latch mechanism, and PCB markings.
• Photograph the unit before energization.

2. Mechanical Inspection

• Inspect the chassis, front latch, connector interface, and power-shelf mating surfaces.
• Check for cracked insulation, corrosion, contamination, overheating, or unauthorized repair.
• Verify that the module seats and locks correctly in the compatible Power Shelf.

3. Electrical Bench Inspection

• Verify input terminals and output interfaces.
• Check protective grounding where applicable.
• Measure insulation resistance under an approved test procedure.
• Confirm there is no abnormal short circuit or leakage condition before applying power.

4. Power-On Test

• Install the in an approved Trusted test shelf.
• Apply controlled AC input within the specified operating range.
• Perform the module’s startup diagnostics.
• Verify AC OK / power-status / fault indications where provided.
• Measure regulated DC output and confirm it remains within the applicable tolerance.

5. Load Testing

• Apply controlled loads representative of the intended Trusted system application.
• Verify output regulation at light, nominal, and elevated load conditions.
• Monitor output voltage, current, ripple, temperature rise, and fault behavior.
• Confirm the supply does not enter unexpected current-limit or thermal-protection states.

6. Redundancy & Load-Sharing Test

• Operate multiple modules in the approved power shelf arrangement.
• Verify current sharing behavior.
• Simulate removal or failure of one power pack.
• Confirm the remaining power path carries the required load without unacceptable DC interruption.
• Verify diagnostic indication for the degraded redundancy state.

7. Extended Stability Test

• Run the module under representative load for an extended test period.
• Monitor temperature, output stability, diagnostic status, and restart behavior.
• Record test results against the exact serial number.

8. Final QC Release

• Match the tested hardware to the PO part number.
• Record input/output measurements and load-test results.
• Issue a serial-number-specific QC/Test Report.
• Apply a QC identification label.
• Use ESD and mechanical protection for shipment.

Current Trusted Power System references describe as a hot-replaceable power pack with current sharing, current limiting, diagnostic functions, and redundant/N+1 configurations.

Module 6: Procurement & Lifecycle FAQ

Q1. Is ICS Triplex genuinely in stock, and what is the emergency-shipping cutoff?
Physical stock must be verified against the exact part number and serial-numbered unit. Current supplier records are inconsistent: one lists an estimated 6–8 week lead time, while another reports the item as currently out of stock. For emergency procurement, obtain written confirmation of actual quantity, tested condition, dispatch date, and carrier cutoff.

Q2. How do you verify the condition and authenticity of a surplus ?
Require exact part-number and serial-number verification, OEM marking inspection, connector and latch inspection, controlled power-up, DC output measurement, load testing, and redundancy/load-sharing verification. A “new surplus” label should not replace electrical test evidence.

Q3. Are there firmware compatibility issues I should warn my engineers about?
Not in the same sense as a Trusted processor or communication interface. is a power-pack module, so the primary compatibility checks are the Trusted Power Shelf, output requirement, system load, redundancy arrangement, and exact hardware variant. Rockwell’s documentation identifies it specifically as a 750 W / 24 VDC power pack.

Q4. Can be hot-swapped?
Yes. Trusted Power System documentation identifies the Power Packs as hot replaceable, with current sharing and diagnostic functions. The maintenance procedure still needs to confirm sufficient remaining power capacity before removing a live module.

Q5. What warranty and return protection should apply to a surplus ?
The quotation should specify the exact variant, tested condition, warranty duration, return authorization process, and functional-failure coverage. For a safety-system power component, require a pre-shipment Test Report showing output-voltage and load-test results for the actual serial-numbered unit.
