ICS Triplex T8480 | Trusted TMR Analog Output Module 40 Channel

Description

• Brand: ICS Triplex
• Full Model Number: T8480
• Lifecycle Status: Active / Legacy Trusted Platform
• Core Function: Trusted TMR analog output module
• Top 3 Technical Specs: 40 isolated analog outputs; 0–20 mA and 4–20 mA ranges; 24 VDC nominal field supply
• Architecture: Triple Modular Redundancy (TMR)
• Power Groups: 5 isolated groups
• Backplane Supply: 20–32 VDC
• Field Supply: 18–32 VDC
• Accuracy: ±0.1% of full scale
• Resolution: 16-bit
• Response Time: <50 ms
• System Family: Trusted T8000
• Stock & Condition: New Surplus / Tested Refurbished — physical stock confirmation required

Rockwell Automation’s official Trusted documentation identifies T8480 as the Trusted TMR Analog Output Module – 40 Channel and lists publication PD-T8480 / ICSTT-RM284 for the product.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed T8480 can interrupt analog control loops while the rest of a Trusted TMR installation remains operational. This module provides 40 analog output channels and is specifically designed for the Trusted safety-system architecture; the associated Trusted 40-channel output FTA is designed to interface with the T8480 and provides five isolated groups of eight channels. That architecture makes substitution with an ordinary analog-output card inappropriate. Channel count alone is not enough—the replacement must match the Trusted backplane, field interface, redundancy architecture, and approved system configuration.

For a plant already using Trusted TMR hardware, a verified T8480 spare can avoid the engineering and outage exposure associated with changing the entire I/O architecture. The module’s documented specifications include 40 channels, 16-bit resolution, ±0.1% full-scale accuracy, 24 VDC nominal field operation, and five power groups. Keeping the installed architecture also preserves existing FTAs, field wiring, application configuration, and maintenance procedures. —For lifecycle planning, the stronger procurement strategy is to hold tested replacement inventory before a critical channel failure forces an emergency search.

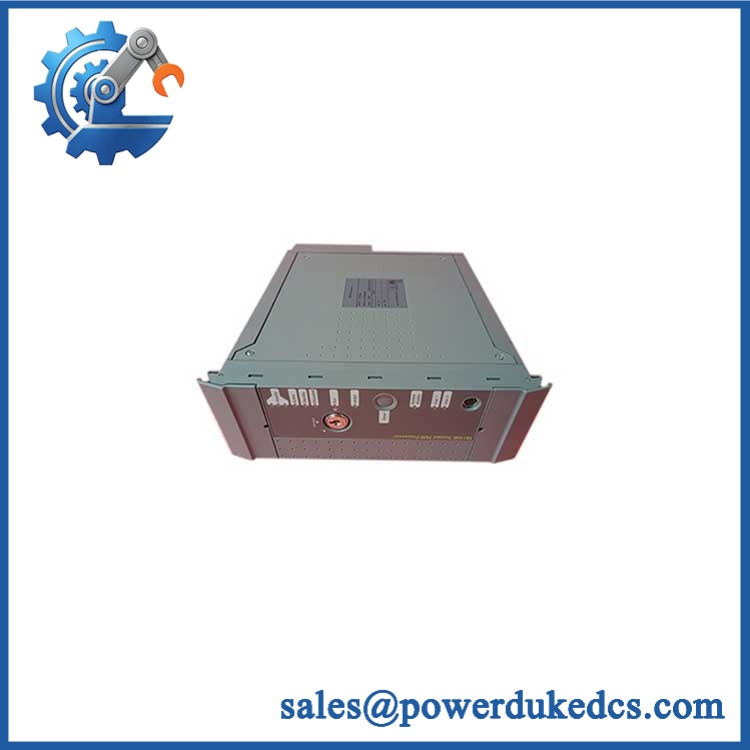

ICS Triplex T8480

Module 4: Compatibility & Replacement Matrix

Rockwell’s official product documentation confirms that is the Trusted TMR 40-channel analog output module. The associated T8850 FTA is explicitly designed to interface with field devices.

Field Traps — Watch Out

• FTA compatibility: The output module and field termination architecture must be treated as a matched system. The T8850 FTA documentation specifically identifies as a supported module.
• Signal-range mismatch: Verify whether the application uses 0–20 mA or 4–20 mA and confirm the configured channel behavior before commissioning.
• Power-group loading: uses five power groups. Confirm field supply distribution and load requirements rather than assuming every field circuit can be treated as one common group.
• Revision control: The official documentation has undergone multiple revisions, including updates for the Series C product and TUV certification. Record the hardware revision supplied and compare it with the site’s approved configuration.

Module 5: Quality Assurance & Testing SOP

A should be released only after electrical, I/O, and diagnostic verification. Its TMR architecture makes channel-level testing especially important.

1. Identity & Authenticity Verification

• Verify ICS Triplex Trusted identification.
• Confirm exact part number and visible hardware revision.
• Record serial number, date code, and manufacturing identifiers.
• Perform OEM anti-counterfeit visual inspection of labels, enclosure, connectors, PCB markings, and front-panel indicators.
• Photograph the module before testing.

2. Physical Inspection

• Inspect backplane connectors for bent, recessed, contaminated, or oxidized contacts.
• Check the PCB for corrosion, overheating, cracked components, contamination, or unauthorized rework.
• Inspect the module housing and extraction mechanism.
• Verify compatibility with the intended Trusted chassis.

3. Power-On Self-Test

• Install the in an approved Trusted test chassis.
• Apply the specified backplane and field-supply conditions through controlled equipment.
• Perform power-on self-test (POST).
• Check module status LEDs and diagnostic indications.
• Confirm normal initialization without module, slice, or communication faults.

4. Analog Output Testing

• Exercise all configured output channels using calibrated measurement equipment.
• Test representative 0–20 mA and/or 4–20 mA output points.
• Verify zero, mid-scale, and full-scale behavior.
• Measure output accuracy and repeatability.
• Check channel isolation and detect abnormal leakage or cross-channel interaction.

5. TMR Diagnostic Testing

• Verify operation of the three redundant circuit branches where the test system permits.
• Introduce controlled diagnostic conditions to verify fault detection.
• Confirm that a simulated single-channel or slice fault produces the expected diagnostic response.
• Verify output behavior remains within the approved safety architecture during a controlled fault test.

6. FTA & Field Interface Test

• Connect the module to a compatible T8850 40-channel Analog/Digital Output FTA where available.
• Verify the SmartSlot connection.
• Confirm field terminal mapping.
• Test representative two-wire field connections.
• Verify the five isolated power-group arrangements.

The official FTA documentation confirms that T8850 supports and provides 40 output channels in five isolated groups, while SmartSlot supports hot replacement of output modules.

7. Extended Stability Test

• Run representative analog loads for an extended period.
• Monitor output accuracy, temperature, supply stability, diagnostics, and unexpected status changes.
• Record minimum, nominal, and maximum tested output values.
• Retest selected channels after thermal stabilization.

8. Final QC Release

• Match the tested serial number to the sales documentation.
• Record hardware revision and test fixture used.
• Issue a serial-number-specific QC/Test Report.
• Apply QC identification.
• Package with ESD protection and mechanical protection for the backplane connector.

Module 6: Procurement & Lifecycle FAQ

Q1. Is ICS Triplex genuinely in stock, and what is the emergency-shipping cutoff?
Physical inventory should be verified against the exact part number and serial-numbered unit. For an emergency requirement, obtain written confirmation of quantity, condition, completed test status, dispatch date, and carrier cutoff. Current supplier records show different inventory positions, so a physical-stock confirmation is preferable to relying on a catalog status.

Q2. How do you verify the condition and authenticity of a surplus ?
Require OEM marking verification, serial-number recording, PCB and connector inspection, controlled Trusted-chassis power-up, POST/diagnostic checks, channel-by-channel analog-output testing, and an extended stability test. The test report should identify the actual serial-numbered module shipped.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Although is an I/O module rather than a controller, the installed Trusted system release, module hardware revision, configuration, FTA arrangement, output ranges, and safety application should be checked before replacement. The documentation has multiple product revisions, including Series C certification updates.

Q4. Can replace another Trusted analog-output module directly?
Not automatically. is specifically the 40-channel TMR analog output module. Its associated field interface is also architecture-specific. Confirm the installed chassis, FTA, channel configuration, field supply, and application requirements before approving substitution.

Q5. What warranty and return protection should apply to a surplus ?
The quotation should specify the exact condition, warranty period, return authorization process, and functional-failure coverage. For a safety-system I/O module, require pre-shipment test evidence covering analog output performance, diagnostics, and the actual serial number of the supplied unit.
