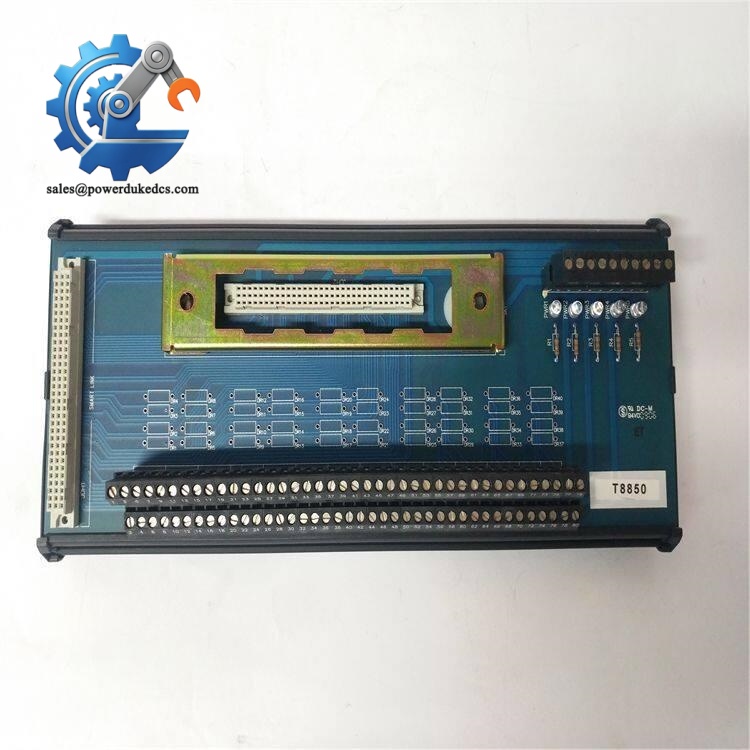

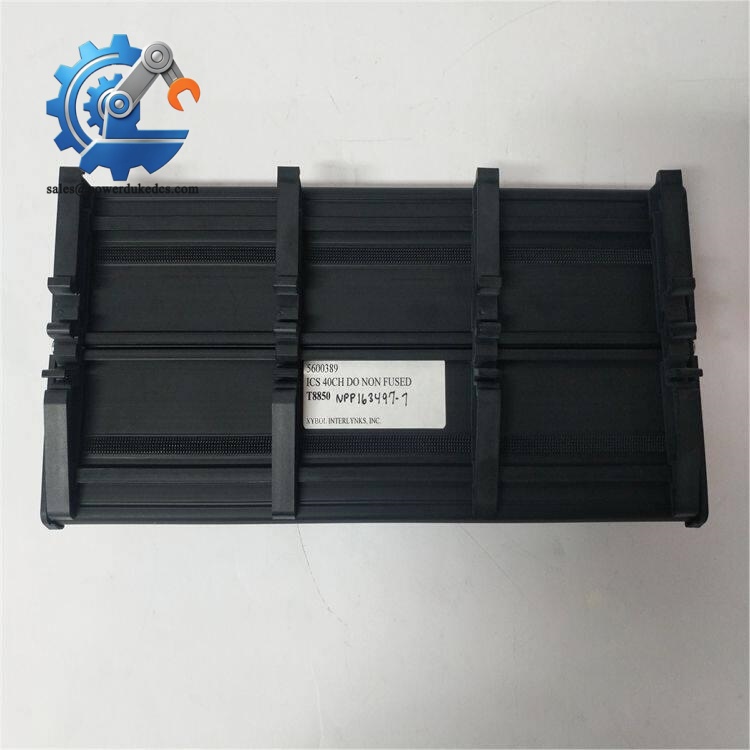

ICS Triplex T8850 | SIS Control Network Module

Description

1. ICS Triplex T8850 | SIS Control Network Module

Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T8850
• Product Type: Trusted TMR Expander Interface Module. The T8850 provides communication expansion capability within the ICS Triplex Trusted Safety System, connecting Trusted controller infrastructure with expansion chassis assemblies.
• Typical Applications: Safety instrumented systems (SIS), emergency shutdown systems (ESD), process safety applications, and distributed Trusted TMR architectures requiring additional I/O chassis connectivity.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 30 × 266 × 303 mm
  • Trusted chassis rack module format
• Estimated Shipping Weight: Approximately 1.1–2.0 kg including ESD packaging and protective export carton.
• What’s in the Box:
  • ICS Triplex T8850 Trusted Expander Interface Module
  • Front-panel assembly with status indicators
  • Trusted chassis backplane connector interface
  • Module retaining hardware
  • Anti-static (ESD) shielding bag
  • Protective packaging
  • Documentation when supplied

Product Introduction

Structure C — Compliance Hook

The ICS Triplex T8850 is installed where communication integrity between safety system chassis sections must be maintained under fault conditions. As part of the Trusted TMR platform, this interface module supports fault-tolerant expansion architectures used in safety-related industrial environments.

Mounted inside the Trusted chassis, the T8850 manages the link between controller infrastructure and expansion equipment while maintaining system diagnostics and communication supervision. Inspect the chassis connector, module keying features, and front-panel indicators before installation (—which is critical for SIS cabinets operating continuously without planned downtime).

Core Technical Specifications

ICS Triplex T8850

The is part of the Trusted 8000 Series hardware family. Verify chassis slot assignment, firmware compatibility, and system configuration records before replacing an installed safety component.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex include:

• CE Mark — applicable when installed within a compliant Trusted system assembly.
• UL/cUL Recognition — may apply depending on the complete system certification package.
• IEC 61508 Safety Compliance — relevant because the Trusted platform is designed for safety-related applications requiring fault detection and controlled failure behavior.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified module; suitability depends on the approved enclosure and complete installation design.
• Marine Approvals (DNV GL) — applicable only when installed as part of a certified marine automation system.

For SIS equipment, certification records must match the installed hardware revision and application configuration. A replacement module with different approval status may create an audit finding.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the ICS Triplex inside the original anti-static (ESD) shielding bag during warehouse storage. The rear connector pins and PCB assemblies require protection from airborne contaminants.

Maintain storage humidity below 60% RH. Moisture exposure can increase connector oxidation and create unreliable communication after installation.

Inspect stored modules every 12–24 months:

• Check the chassis connector condition.
• Inspect front-panel indicators and mechanical locking features.
• Verify the module identification label remains readable.
• Confirm no corrosion or physical impact marks are present.

Allow the sealed module to stabilize at room temperature after cold transport. Condensation inside the enclosure can damage electronic assemblies.

Physical Installation Prerequisites

• Install only in a compatible ICS Triplex Trusted chassis.
• Verify approved slot location before insertion.
• Confirm redundant 24 VDC system power availability.
• Maintain cabinet airflow for module heat removal.
• Leave at least 50 mm clearance around ventilation paths where cabinet construction permits.
• Verify protective earth grounding continuity.
• Secure module retaining screws or locking mechanisms before operation.

Do not exchange modules between safety systems without confirming hardware revision, firmware compatibility, and approved configuration records.

ICS Triplex T8850

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the ICS Triplex ?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and declared function. Safety system interface modules are generally reviewed under electronic control equipment categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect import documentation?

A: Yes. COO information can affect customs clearance, customer qualification files, and audit traceability. Keep the original module label, serial number records, supplier invoice, and receiving inspection documentation.

Q3. Should shipping insurance be purchased for this Trusted interface module?

A: Recommended. The contains precision electronic assemblies and chassis connectors that may be affected by shock, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight coverage.

Q4. Does the include the latest firmware pre-loaded?

A: Firmware depends on the installed module revision and the existing Trusted system configuration. Verify firmware version, chassis compatibility, and approved application documentation before installing the module into an operating SIS environment.
