ICS Triplex TB431 | Trusted TMR Interface Module for Safety Systems

Description

• Brand: ICS Triplex
• Full Model Number: TB431
• Lifecycle Status: Legacy / lifecycle-risk spare; exact manufacturer lifecycle designation could not be independently verified from current primary documentation
• Core Function: Trusted system interface hardware; exact functional role requires verification against the installed assembly documentation
• Top 3 Technical Specs: TB431 part designation | ICS Triplex Trusted-family hardware | Exact electrical/interface specifications not reliably established from accessible primary sources
• Stock & Condition: New surplus / tested used; current secondary listing reports new stock, 1–3 pcs, subject to physical verification

Module 3: Obsolescence & Supply Chain Deep Dive

A TB431 requirement presents a different procurement risk from well-documented Trusted I/O modules: the exact public technical record for this part number is sparse. Current inventory evidence confirms that ICS Triplex TB431 is actively offered as a discrete spare, with one current listing describing it as a new original module and reporting a 1–3 piece stock quantity. However, that source does not provide enough engineering detail to establish the TB431’s exact I/O role, electrical ratings, connector assignment, or approved chassis position. For a safety-system spare, that documentation gap matters.

The commercial advantage of locating an exact TB431 is the potential to preserve an installed legacy ICS Triplex architecture rather than replacing a functioning control system because one difficult-to-source component is unavailable. Rockwell Automation continues to maintain documentation for the wider Trusted platform, while legacy-system support providers specifically describe processor-only upgrade paths that retain existing I/O and field wiring.The TCO calculation should include panel modification, engineering validation, proof testing, shutdown exposure, and spare-parts replacement—not just the hardware price. —For in particular, exact-part verification should precede any substitution decision.

Module 4: Compatibility & Replacement Matrix

The broader Trusted platform uses defined module, chassis, interface and certification combinations, so the should not be treated as interchangeable with a similarly sized Trusted component merely because the manufacturer family is the same. Rockwell’s current Trusted documentation maintains separate product descriptions and manuals for individual modules and associated hardware.

Field Traps — Watch Out

Function mismatch: Do not approve a substitute based only on “ICS Triplex” and “TB” identification. The accessible current inventory page identifies but does not establish a complete engineering specification. Match the actual installed unit, drawing reference and chassis position before ordering. (plcmodel.com)

Documentation gap: For a safety-related application, do not infer voltage, channel count, connector pinout, SIL capability, or software compatibility from unrelated Trusted modules. Those values must come from the installed system documentation or a verified manufacturer document.

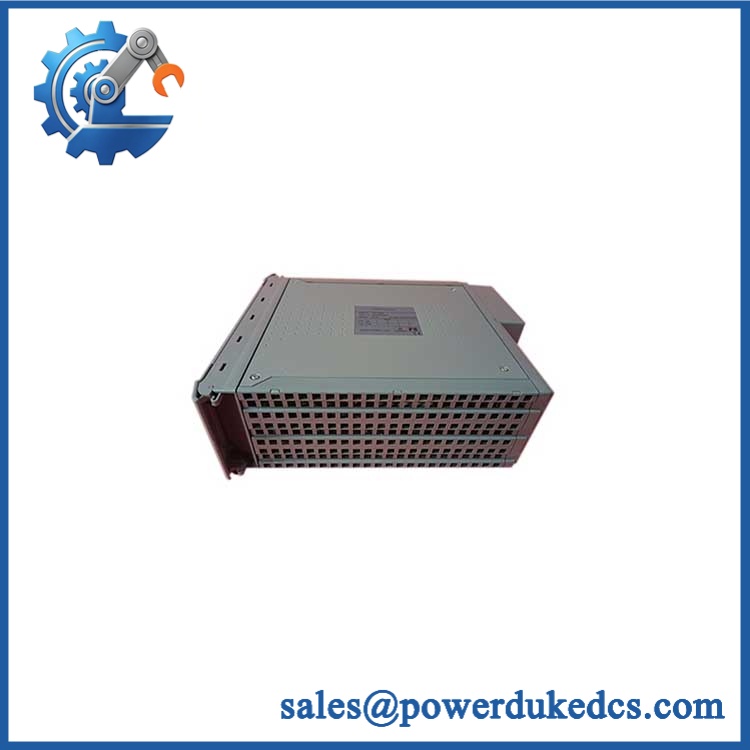

ICS Triplex TB431

Module 5: Quality Assurance & Testing SOP

Because accessible public documentation for is limited, the QA process should emphasize exact identification and system-level validation.

1. Part identity verification: Record the complete marking, manufacturer identification, serial number, revision and any additional assembly codes.
2. OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, component references, solder workmanship and evidence of unauthorized rework.
3. Mechanical inspection: Check mounting features, connector bodies, card guides, retaining hardware and enclosure surfaces for impact or corrosion damage.
4. Connector inspection: Examine all mating contacts under magnification for bent pins, oxidation, contamination or mechanical wear.
5. Continuity test: Verify accessible power, ground and interface paths against the approved drawing or known-good reference unit.
6. Power-on self-test (POST): Install the in a compatible test environment only after its voltage and interface requirements have been independently established.
7. Status indication test: Record all front-panel or module status indicators during startup and steady-state operation.
8. System communication test: Verify expected communication with the associated Trusted hardware using the approved maintenance/test procedure.
9. I/O or interface functional test: Exercise each applicable interface according to the actual function confirmed from site documentation.
10. Load testing: Where provides powered or switched interfaces, apply a controlled representative load and monitor current, voltage and temperature.
11. Fault-response test: Verify expected diagnostic behavior under controlled communication or interface fault conditions where supported by the installed system.
12. Final QC release: Document exact identity, test environment, measurements, communication results, photographs and serial traceability before ESD-safe protective packaging.

The wider Trusted platform is a safety-system architecture, and certified-module records distinguish individual module types and hardware/software revisions. That makes revision and configuration traceability particularly important for an undocumented or poorly indexed spare.

Module 6: Procurement & Lifecycle FAQ

1. Is ICS Triplex genuinely in stock, and what is the emergency-shipping cutoff?

One current commercial listing reports 1–3 pcs of in new condition and states shipment within three days after payment. This is secondary inventory information, not independent confirmation of current physical stock. For an emergency PO, require an actual-unit photograph, complete marking, quantity confirmation, condition, test status and same-day carrier cutoff.

2. How do you verify the condition and authenticity of a surplus ?

Require complete nameplate and PCB identification, serial traceability, connector inspection, mechanical examination, continuity testing and a controlled system-level functional test. Because the public technical record is limited, actual-unit photographs should form part of the acceptance package.

3. Are there firmware compatibility issues engineers should check before issuing the PO?

Potentially. The exact software role is not sufficiently documented in the accessible public sources, so engineers should verify the installed Trusted system revision, associated module, configuration database and approved replacement procedure before commissioning. Do not infer compatibility from another Trusted module.

4. Is a standalone Trusted controller?

This should not be assumed from the part number alone. Available sources identify as an ICS Triplex product but do not provide enough reliable technical information to classify it as a controller, I/O module, interface adapter, or termination assembly with confidence. The installed system drawing and physical nameplate should control the identification.

5. What warranty and return terms should procurement require?

The PO should specify ICS Triplex exactly, define the accepted condition, require actual-unit identification, state the functional-test scope, establish warranty duration, define DOA criteria and specify the return window. For this particular part, identification accuracy should be a contractual acceptance requirement because the publicly available engineering documentation is limited.
