Metso HPM-RM1 VAL0122850 SKC9068256 | Hydraulic Monitor

Description

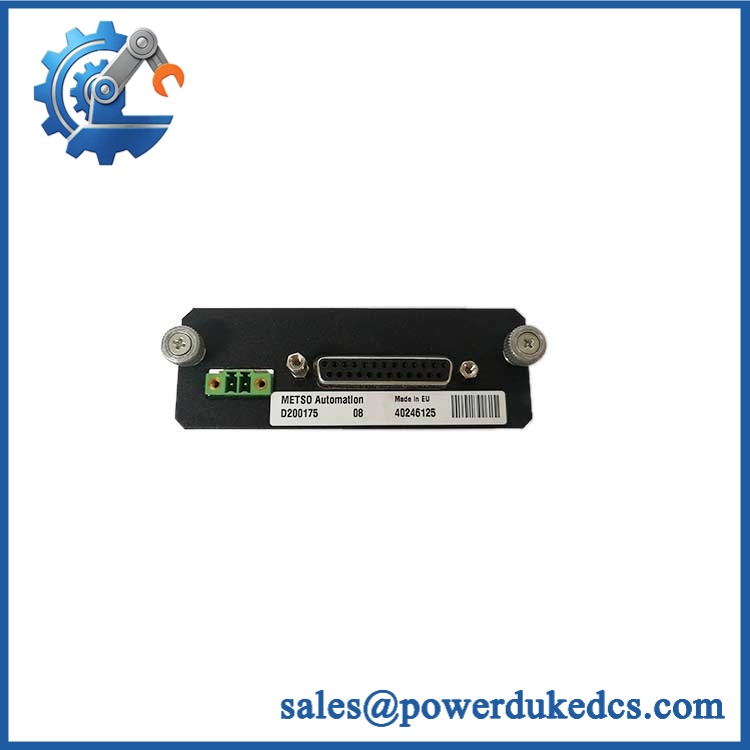

• Model: HPM-RM1
• Brand / Equipment Reference: Metso; Dametric Refiner Monitor System hardware
• Metso VAL Number: VAL0122850
• SKC Number: SKC9068256
• Part Type: Hydraulic Pressure Monitor
• System: RMS-EX1 Refiner Monitor System
• Physical Envelope: Internal plug-in monitor card; exact HPM-RM1 W × H × D dimensions are not stated in the accessible technical documentation
• Estimated Shipping Weight: Approximately 0.5–1.0 kg packed, planning estimate only; verify actual packed weight before freight booking
• Installation: Internal RMS-EX1 rack position; backplane-mounted
• External Connections: HPM transducer and analog/digital signal connections through the RMS rack interface
• What’s in the Box: HPM-RM1 module; protective ESD packaging; accessories, mating connectors, or manuals only when expressly included on the PO
• Handling Class: ESD-sensitive electronic assembly; protect PCB contacts and connector hardware during storage and transport

The RMS-EX1 manual explicitly maps HPM-RM1 → Metso VAL0122850 → SKC9068256 and identifies it as the hydraulic-pressure monitoring unit in the rack.

Product Introduction

Architecture Hook

Inside the RMS-EX1 expandable refiner-monitor rack, the HPM-RM1 occupies an internal monitoring position and handles hydraulic-pressure measurement associated with the refiner’s hydraulic system. Its stated function is to excite and measure pressure transducers on both the A-chamber and B-chamber sides. The specified sensor type is a 2-wire 4–20 mA pressure transducer; the module then provides two analog outputs, one for each monitored chamber, together with four pressure-limit digital outputs.

This is not a general-purpose analog input card. The hardware is tied to the RMS refiner-monitoring architecture, including its rack backplane and dedicated HPM signal connections (which is critical when replacing a field-worn card). The broader RMS-EX1 rack operates from +24 VDC ±10%, with a documented operating range of 0 to 55°C, storage range of -40 to +70°C, and IP00 protection.

Core Technical Specifications

The published documentation provides the functional I/O arrangement and system-level environmental specifications, but it does not provide a reliable standalone dimensional or weight specification for the card.

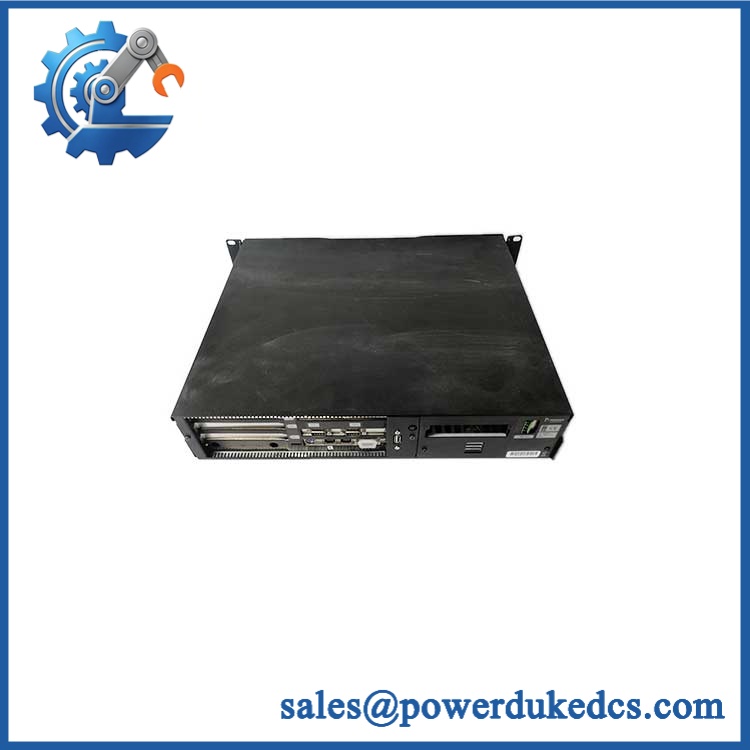

Metso TVD-RM3 VAL0123117 SKC9251496

🚨 Global Compliance & Industry Certifications

• CE: The system documentation cites CE approval against EN 50081-2:1993, EN 50082-2:1995, and 89/336/EEC, with test report reference Enator TR976011. This is system-level evidence and should not be interpreted as a standalone certificate.
• UL / cUL: No standalone UL or cUL listing for was established in the documentation reviewed. Do not add a UL claim to the asset record without certificate evidence.
• ATEX / IECEx: No standalone hazardous-area certification was established for . The documentation reviewed specifies IP00, so the module should not be treated as a field-exposed hazardous-area device.
• Marine / DNV: No -specific marine approval was verified. A marine certification should only be recorded when the exact assembly and installation configuration are covered.
• EMC: The system’s historical CE/EMC reference is relevant when auditing the installed system, particularly where a replacement card is being introduced into an existing certified cabinet.

Audit requirement: Verify specific lot certifications with OEM. Preserve any declaration, test report, or certificate with the serialized asset record rather than relying on a generic product listing.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the inside ESD shielding material. The module is a rack-mounted electronic assembly with PCB contacts and internal signal-conditioning circuitry. Do not store loose cards in ordinary plastic bags; maintain the original antistatic packaging where possible.

Control moisture even though the system manual permits broad humidity during operation. The documented humidity range is 15–95% non-condensing, while the rack itself is rated IP00. For warehouse storage, a practical target below 60% RH is preferable, with desiccant used when the card is sealed for long periods.

Avoid repeated thermal cycling. The published system storage range is -40 to +70°C, but stable indoor storage is preferable to moving the card between hot machinery areas and cold warehouses. Before installation, inspect connector contacts for oxidation and allow a cold-soaked module to reach cabinet ambient temperature before energization.

Physical Installation Prerequisites

Install the only in its compatible refiner-monitor rack architecture. The rack uses internal PCB connectors for its monitoring units and separate screw-terminal interfaces for external signals.

The rack itself is designed for mounting inside a protective cabinet and is grounded through the rack ground connection. Keep the cabinet dry and protected because the system-level IP00 rating provides no dust or water protection at the rack level.

No universal 50 mm clearance requirement could be verified specifically for . Do not invent a clearance value in an installation drawing; instead, preserve the manufacturer’s cabinet arrangement and allow enough space for connector access, card insertion, wiring bend radius, and cabinet heat removal.

Before removal, identify the A-chamber and B-chamber pressure connections. Label the four limit outputs and two analog outputs before disconnecting the cabinet wiring (this prevents a surprisingly common A/B channel reversal during maintenance).
