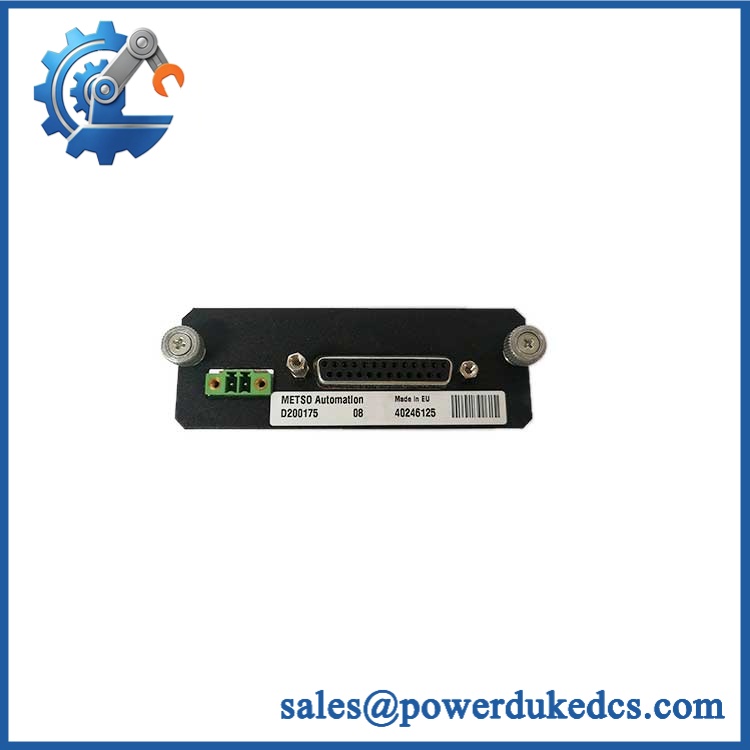

METSO LDU-RM1 VAL0122977 | Original 24 VDC Display Unit

Description

• Model & Brand: METSO LDU-RM1
• Metso Part Number: VAL0122977
• SKC Part Number: SKC9068232
• Product Family: RMS / RMS-EX1 Refiner Monitoring System
• Part Type: Limit Display Unit / RMS Display and Monitoring Module
• Physical Dimensions: 220 × 100 × 35 mm (L × W × T)
• Rack Width: 7TE
• Estimated Net Weight: Approximately 0.3–0.5 kg; the referenced LDU-RM1 technical documentation does not state a component weight.
• Estimated Shipping Weight: Approximately 0.6–0.9 kg, depending on ESD protection and export carton.
• Power Requirement: +24 VDC ±10%, maximum 0.12 A
• Display: Two 4-digit LED rows
• Front Controls: 5 pushbutton switches
• What’s in the Box: LDU-RM1 module only unless the purchase order specifically includes rack accessories, documentation, or mating hardware.
• System Cross-Reference: The RMS-EX1 parts list explicitly maps LDU-RM1 / VAL0122977 / SKC9068232.

The identification is important for receiving inspection. The documented number is VAL0122977, not “VALO122977”; retain the exact numeric format on the ERP record and commercial documentation.

Product Introduction

The LDU-RM1 mounts inside the RMS refiner-monitor rack and acts as the central display and limit-monitoring interface for signals generated by other RMS modules. It reads selected process values, displays channel and limit information on two LED rows, and communicates selected POM, TVD, MPM, and VIM values to a remote PDU-RM3 or operator panel through a serial interface.

This is older dedicated control hardware, not a general-purpose PLC display. The unit also interfaces with PLC signals and can execute feedguard protection functions; units with software version 3.0 and later include the optional Rotor Position Control (RMC) functionality. Version 4.0 introduced a new processor on the sub-board for operator-panel communication (a meaningful distinction when evaluating old shelf stock).

Core Technical Specifications

The electrical specifications, dimensions, display format, interfaces, and revision history come from the technical manual.

Global Compliance & Industry Certifications

For this legacy Metso/Dametric RMS component, certification records should be maintained at the system level unless the individual nameplate or certificate explicitly identifies the module.

• CE Mark: RMS documentation identifies CE compliance for the RMS system against EN 50081-2:1993, EN 50082-2:1995, and 89/336/EEC. Do not automatically transfer the complete-system CE claim to a loose card without supporting documentation.
• EMC: The cited EN 50081-2 and EN 50082-2 requirements are relevant to electromagnetic emissions and immunity for the documented RMS installation.
• UL/cUL: No reliable evidence establishes a standalone UL/cUL listing for VAL0122977. Record “not verified” rather than making an unsupported certification claim.
• ATEX / IECEx: No reliable evidence establishes an individual ATEX or IECEx certification for the . Hazardous-area applicability must be assessed from the complete refiner installation, enclosure, barriers, and field interface.
• Marine / DNV: No reliable evidence was found for an individual DNV approval for this module.
• System Safety: Feedguard and rotor-position functions are control/protection features, but they should not be represented as an independent functional-safety certification without an applicable safety certificate.

For audit purposes, keep the module identity, system certification, declaration of conformity, and installation-specific approvals as separate records.

Verify specific lot certifications with OEM.

METSO LDU-RM1 VAL0122977

Long-Term Storage & Asset Preservation Guide

Keep the in ESD shielding material whenever it is not installed. The front-panel display and PCB assembly are both vulnerable to mishandling; repeated insertion onto metal shelving is not an acceptable preservation method. Protect the edge connectors and front controls from impact.

Control warehouse humidity. Although the associated RMS documentation permits a broad non-condensing humidity range, long-term spare storage should be maintained below 60% RH where practical. Use desiccant for multi-year storage and avoid temperature cycling that can produce condensation inside sealed packaging.

Record the software revision before release to stock. This matters more than it may appear. The history identifies a software 3.0 milestone for RMC and a version 4.0 processor change for operator-panel communication. Two visually similar cards can therefore have different functional capability (record the installed revision as part of the asset record).

Physical Installation Prerequisites

The is a 7TE, 220 × 100 × 35 mm rack module intended for the RMS refiner-monitor cabinet. It is not a standalone DIN-rail display device.

Rack integration: Preserve the original RMS rack guides, retaining hardware, PCB connectors, and specified module position. Do not modify the chassis to force-fit another width or connector arrangement.

Power: Provide +24 VDC ±10% and allow for the LDU’s maximum 0.12 A consumption. The parent RMS-EX1 rack is itself specified for an external 24 VDC ±10%, maximum 2.0 A supply.

Cooling: Do not impose an arbitrary 50 mm clearance around the card. Maintain the rack’s engineered airflow and keep ventilation openings unobstructed. Cabinet thermal conditions still need to remain within the applicable RMS installation limits.

Grounding: Preserve the RMS cabinet’s protective-earth and cable-shielding arrangement. The rack documentation uses dedicated grounding and shield connections, so signal-return wiring should not be repurposed as a protective-earth conductor.

Signal interfaces: Check the internal RMS connectors and external PLC connections before insertion. The LDU communicates with several other RMS units, so a single connector fault can present as a system-level symptom rather than an obvious display failure.

Buyer’s FAQ — Logistics & Compliance Focus

Q: What HS tariff code should be used for an ?
A: A classification under HS 8537 or 9031 may be considered depending on how the unit is described and how the importing country interprets its function, but neither code should be treated as universally correct. Because the is a dedicated measurement/display and protection interface, provide the customs broker with the full functional description, voltage, interfaces, and application before finalizing the national tariff code.

Q: What should I use for Country of Origin?
A: Declare the actual manufacturing origin, supported by the nameplate, manufacturer records, or traceable supplier documentation. Do not use the warehouse location or shipping origin as a substitute for COO. For an audit file, retain the commercial invoice, COO statement, packing list, and serial/lot evidence together.

Q: Is shipping insurance necessary for this part?
A: Yes, particularly for international shipments of scarce legacy RMS hardware. The module is relatively small, but replacement cost and refiner downtime can be disproportionate to its physical freight value. Use ESD shielding, rigid cushioning, moisture protection, tracking, and cargo insurance based on the declared commercial value.

Q: Does the replacement include the latest firmware pre-loaded?
A: Do not assume that. The is a dedicated RMS electronic unit with documented software revisions, including 3.0 for RMC functionality and 4.0 for a processor/operator-panel communication change. Before accepting a spare, record its software or processor revision where accessible and compare it with the installed system requirements.
