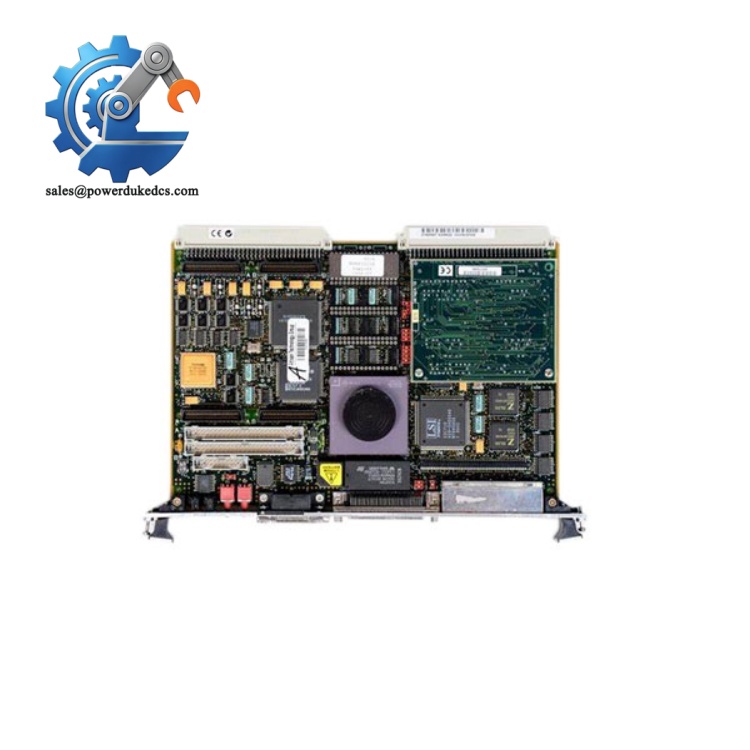

1. Motorola MVME162-213 | Traceable Embedded Controller Spare

Unboxing & Physical Snapshot

• Model & Brand: Motorola MVME162-213
• Product Type: VMEbus Embedded Controller / Single Board Computer (SBC)
• Application: Industrial embedded computing platform used in VME-based automation, data acquisition, scientific systems, telecommunications, and legacy control applications. The MVME162-213 configuration includes an MC68LC040 processor, 4 MB DRAM, two IndustryPack interfaces, four serial channels, SCSI interface, and Ethernet capability.
• Approximate Physical Dimensions (W × H × D):
  • Board only: approximately 233 × 160 × 17 mm
  • With front panel/connectors: approximately 262 × 188 × 20 mm
  • Double-height VME format
• Estimated Shipping Weight: Approximately 1.0–1.5 kg including ESD protection and export packaging.
• What’s in the Box:
  • Motorola MVME162-213 embedded controller board
  • Front panel assembly
  • Installed processor and memory components
  • VMEbus edge connectors
  • ESD shielding bag
  • Protective packaging
  • Documentation when supplied with controlled inventory

Product Introduction

Built for the VMEbus backplane environment, the Motorola MVME162-213 installs as a double-height controller board inside industrial chassis systems where deterministic embedded processing is required. The board connects directly through the VME backplane, providing processor control, memory access, serial communication, SCSI storage support, and IndustryPack expansion capability (important for legacy automation systems still operating under validated hardware configurations).

This controller belongs to an older generation of industrial computing hardware, where replacement compatibility depends heavily on firmware images, memory configuration, and installed mezzanine modules. Inspect the VME edge connectors, battery-backed memory components, socketed devices, and front-panel hardware before installation. The backup battery condition deserves attention because aging cells can affect retained configuration data after decades of service.

Core Technical Specifications

Motorola MVME162-213

Global Compliance & Industry Certifications

Expected compliance considerations for this class of industrial embedded computer hardware may include:

• CE Mark for applicable EMC requirements when installed within a compliant system enclosure.
• UL/cUL Listed or Recognized status depending on the complete equipment assembly.
• ATEX/IECEx consideration only when incorporated into a certified hazardous-area system with approved enclosure and protection methods.
• Marine approvals such as DNV GL where the complete equipment package is certified for vessel or offshore use.

For hazardous-area applications, the board itself does not provide explosion protection. The complete chassis, enclosure, power system, and installation method determine whether the equipment meets the required safety classification.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the inside an original anti-static (ESD) shielding bag. Protect the VME edge connectors from oxidation and mechanical contact damage.
• Inspect and document the battery-backed memory components before long-term deployment. Legacy controller boards commonly require battery evaluation after extended warehouse storage.
• Maintain warehouse humidity below 60% RH to reduce corrosion risk on connector contacts and prevent degradation of PCB protective coatings.

Check the date code. A preserved spare with complete traceability is significantly easier to qualify during a reliability audit.

Physical Installation Prerequisites

• Install only into a compatible VMEbus chassis with the correct backplane configuration.
• Confirm slot assignment, VME addressing, and system controller settings before powering the rack.
• Maintain adequate airflow clearance around the chassis. Forced-air cooling is required for operation within specified temperature limits.
• Verify backplane power rails:
  • +5 VDC
  • +12 VDC
  • -12 VDC
• Ensure chassis grounding and protective earth bonding are completed before insertion.
• Use ESD protection when handling the board.
• Confirm EPROM/Flash image, boot parameters, and application software compatibility before returning the system to service.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Motorola ?
A: Embedded controller boards are commonly reviewed under HS 8471 or related electronic processing equipment classifications, depending on declared function and customs interpretation. Final classification must be confirmed with the importing country’s customs authority.

Q: Does Country of Origin (COO) documentation matter for this legacy controller board?
A: Yes. COO records support customs clearance, lifecycle tracking, and replacement justification for aging automation systems. Retain original labels, serial numbers, and receiving inspection records.

Q: Should shipping insurance be purchased for the ?
A: Yes. Although compact, this controller contains irreplaceable legacy components, socketed devices, and battery-backed memory. Use ESD packaging, shock protection, moisture barriers, and declared-value insurance.

Q: Does the Motorola include the latest firmware pre-loaded?
A: Not necessarily. Firmware depends on the installed PROM/Flash image and the original application environment. Verify the boot image, operating system requirements, and system configuration before installation.
