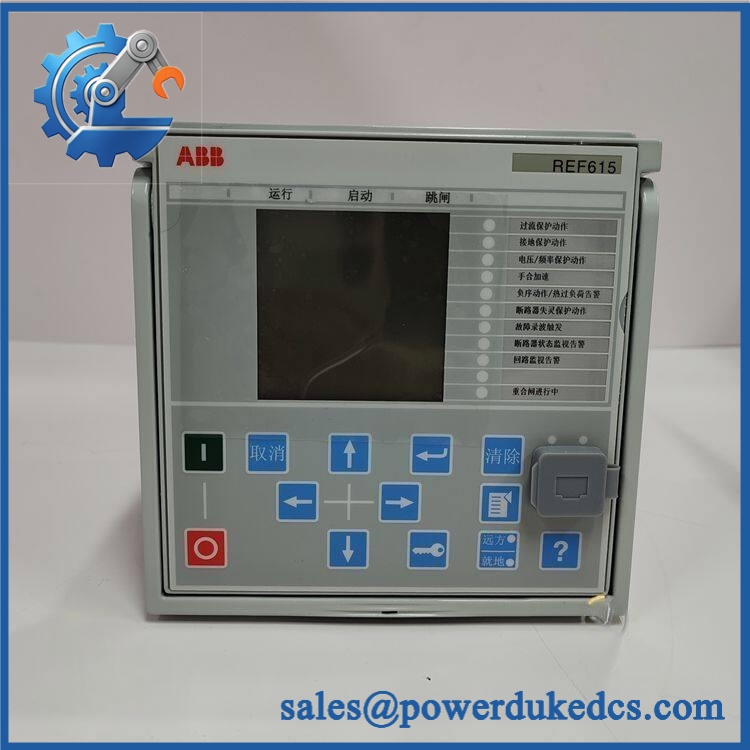

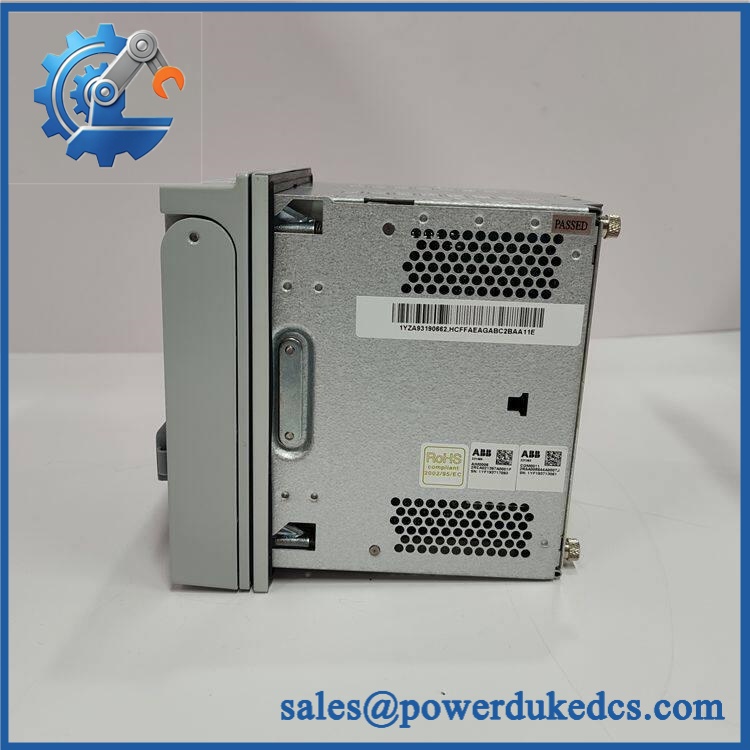

ABB REF615C_E HCFFAEAGABC2BAA11 | REF615 Series Protection and Control Device

• Model: ABB REF615C_E
• Configuration Code: HCFFAEAGABC2BAA11
• Brand: ABB
• Series: Relion 615
• Part Type: Feeder Protection and Control IED
• Core Function: Protects, controls, measures, and supervises medium-voltage feeders and associated distribution equipment.
• Key Specs: Relion 615 platform, configurable protection functions, feeder-oriented protection logic, disturbance/event recording, communication capability, and substation automation integration.
• Procurement Note: HCFFAEAGABC2BAA11 is a configuration identifier, so the complete code should be matched rather than sourcing a generic REF615 by model family alone.

Product Introduction

A feeder protection relay has to make the right decision under abnormal network conditions within a very short time. When an installed REF615 develops a hardware fault, replacing it with a different configuration can create unexpected protection-function or communication mismatches.

The ABB REF615C_E HCFFAEAGABC2BAA11 belongs to ABB’s Relion 615 series of protection and control IEDs. REF615 is designed specifically for feeder protection, control, measurement, and supervision in medium-voltage distribution systems.

The suffix C_E and the configuration string HCFFAEAGABC2BAA11 are important purchasing identifiers. REF615 devices are available in multiple hardware and application configurations (the protection function set, I/O arrangement, communication interfaces, and application configuration can differ).

Configuration Warning

The exact code HCFFAEAGABC2BAA11 could not be independently verified in the publicly indexed sources searched for this specific request. Therefore, it should be treated as the user-supplied configuration identifier, not as a specification from an unrelated REF615 variant.

This is particularly important for:

• CT/VT input configuration
• Binary I/O count
• Protection function package
• Communication protocol
• Ethernet/serial interface arrangement
• Auxiliary supply
• Hardware revision

Do not assume every REF615 has the same I/O or protection-function configuration.

ABB REF615C_E HCFFAEAGABC2BAA11

Application Scenarios & Pain Points

At a medium-voltage distribution substation, can act as the feeder protection and control IED, monitoring feeder conditions and initiating breaker operations when configured protection elements detect abnormal conditions.

For industrial power distribution, the relay can combine protection, measurement, control, and communication functions in one device. This reduces the number of separate monitoring components required in the protection panel.

During substation modernization, the platform is useful where legacy electromechanical or earlier electronic protection devices are being replaced with IEC 61850-capable IED architecture.

In feeders exposed to 50°C+ cabinet temperatures, verify the actual relay environmental rating and panel thermal conditions. Excessive temperature can shorten electronic component life even when protection settings remain correct.

Common Error Codes & Diagnostic Symptoms

No reliable public source establishes dedicated fault-code numbers for the exact REF615C_E HCFFAEAGABC2BAA11 configuration. Use the relay’s own diagnostic/event information rather than assigning generic codes.

• Self-Supervision / Internal Fault Alarm → Diagnosis: The IED has detected an internal hardware, software, memory, power, or communication-related problem. → Action: Review the relay diagnostic log and hardware status; replace the IED if an internal hardware fault is confirmed.
• Protection Trip Not Operating as Expected → Diagnosis: Incorrect settings, CT/VT input problems, binary I/O configuration, application mismatch, or internal relay failure may be involved. → Action: Verify the protection configuration and measured quantities before replacing the relay.
• Communication Failure / IEC 61850 Link Down → Diagnosis: Possible Ethernet interface, network, configuration, SFP/interface, or device communication fault. → Action: Check physical links and station configuration; replace the relay only after external network causes are excluded.

Cross-Reference & Lifecycle Migration

Cross-Reference

Compatibility

For an exact replacement, compare the complete installed device against the replacement:

1. model suffix
2. Configuration string
3. Hardware revision
4. Auxiliary supply
5. CT/VT input arrangement
6. Binary input/output arrangement
7. Communication interfaces
8. IEC 61850 configuration
9. Protection application
10. Firmware revision
11. PCM600 project configuration
12. Protection-setting file

Direct Replacement

The safest replacement target is another REF615C_E with the same configuration, provided the hardware revision and firmware are compatible.

A generic should not be treated as an automatic drop-in replacement.

Firmware and Configuration

A replacement protection IED normally requires more than physical installation. The correct application configuration, protection settings, communication parameters, and station integration data must be restored.

Do not perform firmware upgrades during an emergency replacement without first checking compatibility with the existing PCM600 project and substation configuration.

Lifecycle

Recommended classification: Established / Legacy-Generation Protection IED.

For an operating substation, maintaining a tested spare with the same configuration code is preferable to keeping only a generic chassis in inventory.

ABB REF615C_E HCFFAEAGABC2BAA11

Field Engineer’s Tech Notes

1. Never copy protection settings blindly.
Before replacing the IED, save the existing configuration and record CT/VT ratios, protection curves, trip logic, binary I/O mapping, communication addresses, and time synchronization settings. A physically correct relay with an incorrect application configuration can be more dangerous than a failed relay.

2. Verify the configuration code against the actual terminal layout.
The family contains multiple hardware/application variants. Compare the rear-terminal arrangement and communication interfaces with the replacement before energizing it.

Strict QA & Testing SOP

1. Inbound identification — Verify ABB, REF615C_E, and .
2. Nameplate inspection — Record serial number, hardware revision, order/configuration information, and manufacturing data.
3. Housing inspection — Check the enclosure, HMI, terminals, mounting hardware, and communication interfaces.
4. Terminal inspection — Compare CT, VT, binary I/O, auxiliary-power, and communication terminals with the expected configuration.
5. Power-supply test — Apply only the correct auxiliary supply specified for the actual device.
6. Self-supervision test — Confirm normal startup and absence of internal diagnostic alarms.
7. HMI test — Check display, keypad, LEDs, and local control functions.
8. Measurement test — Inject appropriate simulated current/voltage signals and verify measured values.
9. Protection test — Perform secondary-injection testing for the protection elements required by the target application.
10. Trip-output test — Verify binary output and breaker-control logic using an isolated test arrangement.
11. Communication test — Check the configured communication interface and required station protocol.
12. IEC 61850 test — Where applicable, verify communication, logical nodes, reports, and required data exchange.
13. Event/disturbance recording test — Confirm correct recording and retrieval.
14. Configuration verification — Compare the loaded application against the approved PCM600 configuration.
15. Final QA documentation — Record serial number, firmware, configuration code, test results, and actual-unit photographs.
16. ESD and protective packaging — Package the IED using suitable antistatic and impact protection.

Test videos can be provided when available, showing the actual relay identification, startup, HMI status, diagnostic condition, and functional testing.

Buyer’s FAQ

Q1: What is ABB REF615C_E?
A: is an ABB Relion 615 feeder protection and control IED designed for medium-voltage distribution applications.

A: It is a detailed configuration identifier supplied for this particular REF615C_E unit. It should be retained when sourcing a replacement because devices can differ in hardware and application configuration.

Q3: Can any replace this unit?
A: No. The replacement should match the hardware configuration, I/O arrangement, communication interfaces, protection functions, firmware, and application configuration.

Q4: Can I hot-swap the ?
A: Do not assume hot-swapping is permitted. Protection relays are connected to CT/VT circuits and breaker-control circuits; follow the site’s approved isolation and commissioning procedure.

Q5: Is this an IEC 61850 relay?
A: The platform supports IEC 61850-based substation communication, but the exact communication configuration should be verified against and the installed hardware.

Q6: How do I verify a New Original ABB REF615C_E?
A: Request clear photographs of the ABB nameplate showing REF615C_E and , plus the serial number, hardware revision, rear-terminal layout, and communication interfaces. For a protection IED, functional-test evidence is strongly recommended before shipment.
