REXROTH DKC02.3-040-7-FW | CNC Motion Control Spare

Description

1. REXROTH DKC02.3-040-7-FW | CNC Motion Control Spare

Unboxing & Physical Snapshot

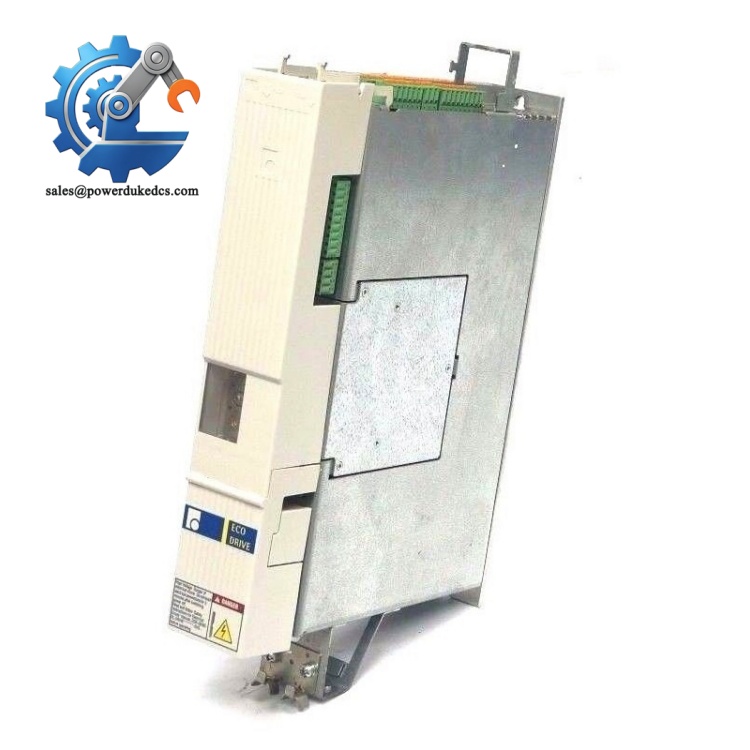

• Brand & Model: Bosch Rexroth DKC02.3-040-7-FW
• Product Family: Rexroth ECODRIVE03 Drive Controller Series
• Product Type: Digital servo drive controller for AC servo motors. The DKC02.3 series is part of the ECODRIVE03 family used for industrial motion control applications.
• Primary Application: CNC machines, packaging equipment, robotics, machine tools, handling systems, and automated production lines.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 140 × 260 × 220 mm
  • Compact cabinet-mounted servo drive format.
• Estimated Shipping Weight: Approximately 5–7 kg including protective packaging and export carton.
• What’s in the Box:
  • Rexroth DKC02.3-040-7-FW servo drive controller
  • Front display/interface area
  • Power and motor connection terminals
  • Control signal connectors (configuration dependent)
  • Product identification label
  • Anti-static protective packaging
  • Shock-resistant export carton

Product Introduction

Structure B — Architecture Hook

The Rexroth DKC02.3-040-7-FW functions as the power conversion and motion-control element between a machine controller and an AC servo motor. Installed inside an electrical cabinet, it receives command signals, regulates motor current, and manages servo positioning within the ECODRIVE03 automation architecture.

This drive controller must be matched with the correct motor type, firmware revision, and machine parameters before operation. Check the rating label. Verify the motor feedback interface, mains supply configuration, and parameter backup before replacement (—which is critical for CNC and production machinery where incorrect servo tuning can create mechanical damage or positioning errors).

Core Technical Specifications

REXROTH .3-040-7-FW

The .3-040-7-FW is a configurable servo drive rather than a plug-and-run replacement. Existing machine parameters, motor data, and firmware versions must be verified before commissioning.

? Global Compliance & Industry Certifications

Expected regulatory considerations for the Rexroth .3-040-7-FW include:

• CE Mark — applicable for compliant machine installations within European markets.
• UL/cUL Recognition — may apply for industrial equipment installations requiring North American approval.
• RoHS Compliance — dependent on production revision and regional requirements.
• ATEX/IECEx — not a standalone hazardous-area drive; suitability depends on the complete certified machine system.
• Marine Approvals (DNV GL) — not standard unless installed within approved marine automation equipment.

Servo drives directly control electrical energy delivered to motors. Proper certification and installation prevent hazards related to overcurrent, overheating, and unintended machine movement.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store the .3-040-7-FW in a dry indoor environment inside protective packaging. Keep dust away from cooling channels, terminal areas, and connector openings.

Maintain warehouse humidity below 60% RH. Moisture exposure can affect power terminals, PCB coatings, and internal capacitors during long storage periods.

Before installation:

• Inspect the DC bus capacitors for aging signs or leakage.
• Check power terminals and connectors for oxidation.
• Verify firmware version and stored parameters against machine records.
• Perform insulation and visual checks before applying mains power.

For drives stored for several years, controlled power-up procedures may be required to reform electrolytic capacitors.

Physical Installation Prerequisites

• Mount vertically inside a suitable electrical cabinet.
• Maintain airflow clearance around cooling vents.
• Leave at least 50 mm clearance above and below the drive for convection and exhaust airflow.
• Verify cabinet ventilation and ambient temperature limits.
• Connect protective earth before power wiring.
• Confirm motor cable shielding and grounding practices.
• Use correct torque settings for power terminals.
• Separate motor power cables from sensitive signal wiring.

Do not energize the drive before verifying motor compatibility and parameter configuration.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Rexroth .3-040-7-FW?

A: The final Harmonized System classification depends on customs interpretation and the declared function of the servo drive. Motion controllers and motor drives are commonly reviewed under electrical power control equipment categories. Confirm the final HS code with your customs broker.

Q2. Does Country of Origin affect Rexroth .3 import clearance?

A: Yes. COO documentation supports customs processing, warranty records, and machine asset traceability. Keep the OEM label, invoice, packing list, and inspection documents together.

Q3. Is shipping insurance recommended for this servo drive?

A: Recommended. Servo drives contain power electronics, capacitors, and precision control circuits. Impact, moisture, or improper handling during transport can cause failures that are not immediately visible.

Q4. Does the .3-040-7-FW include the latest firmware pre-loaded?

A: The drive contains internal firmware, but the correct version depends on the machine configuration and application. Verify firmware revision, motor data, and stored parameters before commissioning.
