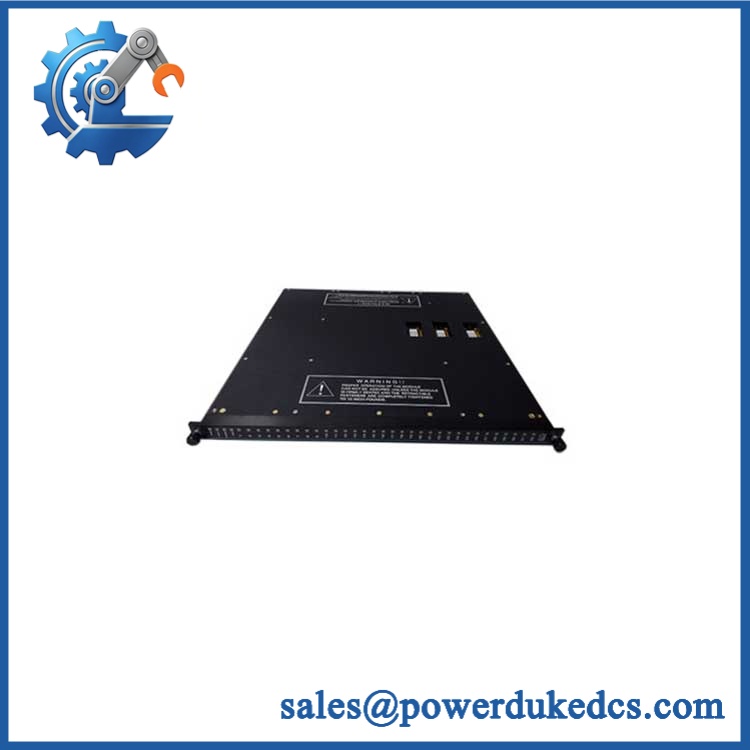

TRICONEX 3611E | 8 Point 115VAC TMR Supervised Output Module

Description

• Brand: Triconex / Invensys
• Full Model Number: 3611E
• System/Series Family: Tricon v9–v11
• Core Function: 8-point galvanically isolated TMR supervised digital output switching for 115 VAC field loads
• Top 3 Hardcore Specs: 8 commoned outputs; 90–155 VAC operating range; 2 A maximum per point
• Frequency Range: 47–63 Hz
• Maximum Switching Power: 2,000 VA resistive
• Minimum Required Load: 50 mA
• Off-State Load Leakage: 4 mA maximum
• Chassis Leakage: 1 mA maximum at 60 Hz
• Output Protection: 2.5 A fast-acting fuse per output on field termination
• Point Isolation: 1,500 VDC minimum
• Output Diagnostics: Voltage and current loopback supervision
• Status Indication: POINT, PWR, LOAD; module PASS, FAULT, ACTIVE
• Logic Power: <15 W
• Hot Spare: Supported
• Stock Status: New Surplus or Fully Tested Refurbished; exact revision to be confirmed

Tricon documentation identifies Model 3611E as an 8-point TMR Supervised Digital Output Module for nominal 115 VAC service. Its supervised architecture is intended to detect field-circuit problems such as loss of power, blown fuse, open load, and certain field-side faults.

Module 3: Technical Product Introduction

A supervised digital output has a different maintenance requirement from an ordinary AC output card. The TRICONEX 3611E is an 8-point commoned TMR supervised digital output module designed for 115 VAC field circuits. It uses redundant internal output circuitry and supervision of the field circuit, allowing the Tricon system to identify conditions such as loss of field power, a blown output fuse, or a missing/open load. Each output point is rated for up to 2 A under the specified conditions, while the module communicates its status through dedicated POINT, PWR, and LOAD indicators.

The operating envelope is specific. The 3611E accepts 90–155 VAC at 47–63 Hz, supports up to 2,000 VA resistive switching power, and requires a minimum load of 50 mA. Off-state load leakage is specified at 4 mA maximum, while chassis leakage is limited to 1 mA at 60 Hz. The field termination uses one 2.5 A fast-acting fuse per output, and point isolation is rated at a minimum of 1,500 VDC. Published Tricon specifications also limit the maximum output cycle rate to below 20 cycles per second and specify an expected life above 10,000 cycles at maximum rated load.

TRICONEX 3611E

Module 4: Application Scenarios & Field Realities

• For 115 VAC solenoids, contactors, and shutdown actuators where field-circuit supervision matters, 3611E provides both the output command and diagnostic coverage of the associated field loop. The Tricon supervised-output architecture is specifically intended to detect loss of power, blown fuse, open/missing load, and related field faults.
• In ESD or process shutdown cabinets, the 3611E’s POINT, PWR, and LOAD indications provide technicians with more information than a simple energized/de-energized output status. A missing-load alarm, for example, can direct troubleshooting toward the actuator circuit instead of immediately replacing the output module.
• Where AC inductive loads are switched repeatedly, the maximum cycle rate and rated switching power become relevant. Tricon documentation specifies <20 output cycles per second and an expected life of more than 10,000 cycles at maximum rated load. Actual contactor or solenoid behavior still needs to be evaluated for inrush, suppression, and thermal duty.
• During online maintenance, 3611E supports hot-spare operation and uses a separate external termination panel connected to the Tricon backplane. The replacement therefore needs to be qualified with the associated termination arrangement rather than as a standalone PCB.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement classification: Drop-in Replacement when the installed Tricon system already uses the 3611E architecture with compatible external termination, 115 VAC field wiring, and the same documented system configuration.

Software compatibility: Configuration verification required. The 3611E is an I/O module, but output assignments, supervision settings, alarm handling, and active/spare configuration remain part of the overall Tricon application.

Cross-model replacement: Hardware and engineering verification required. The closely related 3617E is a supervised 48 VDC module, not a direct equivalent. Other Tricon output models may use different voltages, point counts, commoning, supervision schemes, or termination hardware.

Field Traps — Watch Out

1. The minimum-load requirement is real. The 3611E specifies a 50 mA minimum required load. A very small PLC relay, indicator, or high-impedance test load may not provide the electrical conditions required for the supervision circuit to recognize the field loop correctly.

2. Do not interpret LOAD and PWR alarms as ordinary output-state indicators. The supervised architecture checks the field circuit itself. A healthy command signal with an open actuator coil can therefore produce a load-related diagnostic even though the processor and output command are functioning normally.

3. Check the 2.5 A field fuse before replacing the module. Each output uses a 2.5 A fast-acting fuse on the field termination. An open fuse interrupts the load path and can create a supervised fault while the 3611E electronics remain operational.

4. Respect the commoned output arrangement. The 3611E provides 8 commoned outputs. Field wiring must follow the intended common reference and termination scheme; treating the eight points as fully independent circuits can defeat the designed architecture.

5. Do not substitute 3601E simply because both modules use 115 VAC. 3601E is a 16-point opto-isolated non-commoned digital output, while 3611E is an 8-point supervised, commoned output module. Their field diagnostics, termination requirements, and load behavior are materially different.

Module 6: Quality Assurance SOP

Pre-Shipment Inspection Protocol for TRICONEX 3611E

• OEM identity inspection: Verify Triconex/Invensys markings, exact 3611E designation, hardware revision, serial number, front-panel identification, and additional assembly numbers.
• Variant verification: Confirm the unit is 3611E, not 3617E, 3601E, 3613E, 3614E, or another supervised digital-output model.
• Mechanical inspection: Examine the enclosure, module guides, locking hardware, connectors, status indicators, PCB surfaces, and mounting interfaces for corrosion, contamination, deformation, cracked components, or unauthorized repair.
• Connector inspection: Check all module and termination interfaces for oxidation, bent contacts, damaged housings, contamination, or loose hardware.
• Power-on self-test: Install the module in a compatible Tricon test chassis and verify PASS, FAULT, ACTIVE, POINT, PWR, and LOAD indications during startup and normal operation.
• 8-channel verification: Exercise all eight output points independently; one successful channel is not sufficient to qualify the complete module.
• AC voltage test: Apply calibrated 115 VAC test power within the documented 90–155 VAC operating range and verify stable output operation.
• Frequency test: Where the laboratory setup permits, test representative conditions within the specified 47–63 Hz range.
• Load test: Connect representative resistive and approved inductive loads and record output voltage, current, voltage drop, switching behavior, and thermal response.
• Minimum-load verification: Confirm supervised operation using a representative load above the documented 50 mA minimum required load.
• Field-power supervision test: Remove or vary the field supply under controlled conditions and verify that the expected PWR diagnostic indication is generated.
• Fuse-fault test: Where the test fixture permits, simulate an open 2.5 A field fuse and verify the appropriate supervised response.
• Load-supervision test: Simulate a missing/open load and verify the LOAD diagnostic behavior.
• Voltage-loopback verification: Exercise the module’s output voltage/current supervision circuitry and confirm correct diagnostic response under controlled conditions.
• Leakage measurement: Measure off-state load leakage and confirm compliance with the documented 4 mA maximum under applicable test conditions.
• Isolation verification: Perform an approved controlled isolation test against the 1,500 VDC minimum point-isolation requirement.
• TMR verification: Where the test environment permits, validate the three internal processing paths and verify correct voted output behavior.
• Hot-spare test: Use a compatible active/spare Tricon configuration and verify transfer behavior according to the approved maintenance procedure.
• Cycle-life functional test: Where practical, run representative output cycles and confirm stable operation without diagnostic drift or abnormal heating. The published maximum output cycle rate is below 20 cycles per second.
• Thermal observation: Operate multiple outputs under representative loads for an extended interval and monitor the module, termination interface, and fuse areas for abnormal temperature rise.
• Final QC record: Record exact model, revision, serial number, termination hardware, supply voltage/frequency, all eight output results, load values, supervision results, leakage, isolation test, hot-spare result where applicable, test duration, and inspector approval.
• ESD-controlled packaging: Place the module in an ESD-safe package and protect connectors, LEDs, locking features, and PCB surfaces against impact, moisture, contamination, and electrostatic discharge.

Procurement note: The technically supported identity is TRICONEX 3611E — Tricon 8-point, 115 VAC TMR Supervised Digital Output Module. Published specifications define 90–155 VAC operation, 47–63 Hz, 2 A maximum per point, 2,000 VA resistive switching power, 50 mA minimum load, 4 mA maximum load leakage, 2.5 A fast-acting output fuses, 1,500 VDC minimum point isolation, and POINT/PWR/LOAD supervision. The module is commoned in 8 points and should be matched to the correct external termination panel and existing Tricon cabinet architecture.
