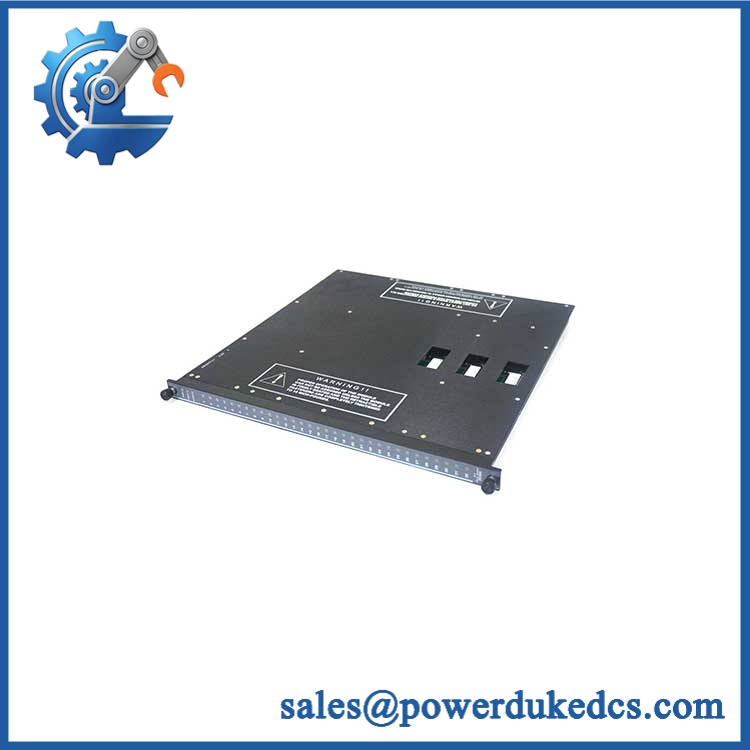

TRICONEX 3703E | TMR 16 Point Isolated Analog Input Module

Description

• Brand: TRICONEX
• Full Model Number: 3703E
• System/Series Family: Tricon v9–v11 TMR safety system
• Core Function: 16-channel isolated TMR analog input acquisition for configurable 0–5 VDC or 0–10 VDC field signals
• Top 3 Hardcore Specs: 16 differential isolated inputs; 12-bit resolution; <50 ms input update rate
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

A conventional analog input card can become difficult to use when field instruments sit at different electrical potentials or when channel-to-channel isolation is required. TRICONEX 3703E is a 16-point isolated TMR analog input module for Tricon safety systems. Triconex documentation defines each input as differential and isolated, with the signal range configurable in TriStation for 0–5 VDC or 0–10 VDC. Three independent input legs process each field signal, allowing the Tricon architecture to maintain its TMR diagnostic and voting model. The 3703E also supports hot-spare replacement within the approved Tricon architecture.

The important numbers are the isolation and measurement characteristics. The module provides 12-bit resolution, an input update rate of less than 50 ms, and accuracy of less than 0.15% of full-scale range from 0°C to 60°C. Input resistance is at least 30 MΩ DC, while common-mode voltage is specified at up to ±200 VDC channel-to-channel or channel-to-ground. The input circuit provides continuous over-range protection to 150 VDC or 115 VAC; with the appropriate 250 Ω or 500 Ω shunt, the voltage input architecture can also represent a 0–20 mA current signal.

Module 4: Application Scenarios & Field Realities

• For process transmitters with voltage outputs, the 3703E is suited to instrumentation that provides 0–5 VDC or 0–10 VDC. The range is configured in TriStation, so the software scaling must match the actual transmitter range rather than simply the nominal card capability.
• Where field potentials differ between instruments, the isolated input structure is the key reason to select 3703E. Each point is differential and isolated, with a specified common-mode limit of ±200 VDC. That makes the card materially different from the non-isolated 3700A and 3701 architectures.
• During brownfield replacement of a 3700-series module, verify whether the existing application actually requires isolation. A 32-channel 3700A may appear attractive because it offers twice the point count, but it uses differential DC-coupled inputs rather than the 16-channel isolated topology of the 3703E.
• For 4–20 mA instrumentation, do not assume the 3703E is a native current-input module. Triconex documentation describes current measurement through an external shunt resistor, with 250 Ω for the 5 V configuration and 500 Ω for the 10 V configuration. The resistor and field termination therefore become part of the signal-conversion calculation.

TRICONEX 3703E

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact 3703E with matching Tricon configuration: Drop-in Replacement
When the installed system uses Model 3703E with the approved Tricon chassis, external termination panel, field wiring, project configuration, and compatible firmware, the module can normally be exchanged as a like-for-like replacement.

3703E hardware revision change: Software Compatible / Configuration Verification Required
Verify the hardware revision, TriStation configuration, configured input range, open-detect setting, scaling, and termination arrangement before returning the replacement to service.

3700A or 3701 substituted for 3703E: Hardware Modification Required
These modules are not electrically equivalent. The 3700A and 3701 provide 32 differential DC-coupled inputs, while 3703E provides 16 differential isolated inputs. The isolation architecture and point count must match the original application.

3708E substituted for 3703E: Hardware Modification Required
3708E is the thermocouple-oriented isolated analog-input module. It has a different signal interface and application purpose and should not be selected simply because it shares the 16-point isolated architecture.

⚠️ Field Traps (Watch Out)

Input-range configuration trap: The 3703E can be configured for 0–5 VDC or 0–10 VDC in TriStation. A replacement with the same model number can still produce incorrect engineering values when the configured range or application scaling does not match the transmitter.

Common-mode trap: Triconex specifies a ±200 VDC maximum common-mode range and warns that exceeding it can compromise proper operation and accuracy of other channels. Measure field-to-field and field-to-ground potentials before commissioning unfamiliar wiring.

Current-loop shunt trap: When a 4–20 mA device is connected through a shunt resistor, the resistor value directly changes the voltage presented to the input. A 250 Ω shunt produces 1–5 V for a 4–20 mA loop, while a 500 Ω shunt produces 2–10 V. Verify the selected resistor against the configured voltage range and field loop burden.

Open-detect trap: Open-circuit detection is configurable as upscale or downscale. Preserve the original configuration because changing this setting can alter how an open transmitter circuit is interpreted by the safety application.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for TRICONEX 3703E

• Step 1 — Identity Verification: Confirm TRICONEX marking, 3703E model number, serial number, hardware revision, manufacturing information, and associated termination-panel identification.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Inspect labels, barcodes, PCB markings where accessible, module color, connector geometry, retaining hardware, front-panel indicators, and evidence of unauthorized component replacement.
• Step 3 — Mechanical Inspection: Check the housing, card-edge connector, alignment/keying features, field connector interface, retaining mechanism, and enclosure for cracks, corrosion, contamination, or deformation.
• Step 4 — Analog Test Fixture Verification: Prepare calibrated 0–5 VDC and 0–10 VDC sources, with appropriate isolation, and verify that the test setup does not exceed the documented common-mode or over-range limits.
• Step 5 — Power-On Self-Test: Install the module in an approved Tricon test chassis and verify PASS, FAULT, and ACTIVE indications, module recognition, and absence of diagnostic faults.
• Step 6 — Sixteen-Channel Input Test: Exercise all 16 differential isolated channels at representative low-scale, mid-scale, and full-scale voltages. Record measured values and channel diagnostics.
• Step 7 — Range and Scaling Test: Verify both configurable input ranges where the test fixture and approved procedure permit, confirming correct 0–5 VDC and 0–10 VDC interpretation.
• Step 8 — Isolation Verification: Measure the approved channel-to-channel and channel-to-ground isolation characteristics using a controlled laboratory procedure appropriate for the module and test equipment.
• Step 9 — Diagnostic and Open-Detect Test: Verify configured upscale/downscale open detection and monitor diagnostic behavior under controlled signal-loss conditions.
• Step 10 — Final QC Record: Record model, serial number, hardware revision, all 16 channel measurements, selected input range, isolation results, diagnostic status, visual condition, test date, and final QC disposition.

Technical Verification Note: Triconex documentation identifies 3703E as a 16-point differential isolated TMR analog input module supporting 0–5 VDC or 0–10 VDC input ranges. The documented specifications include 12-bit resolution, <50 ms input update rate, <0.15% FSR accuracy from 0°C to 60°C, ≥30 MΩ DC input resistance, ±200 VDC maximum common-mode range, 150 VDC/115 VAC continuous input protection, configurable open detection, and current measurement through external 250 Ω or 500 Ω shunts.
