TRICONEX 3805E 9853-610 | TMR 8 Point Analog Output Module

Description

• Brand: TRICONEX / Invensys
• Full Model Number: 3805E / 9853-610
• System/Series Family: Tricon v9–v11
• One-Sentence Core Function: Eight-channel TMR 4–20 mA analog output module paired with the 9853-610 basic current-output termination panel
• Top 3 Hardcore Specs: 8 analog outputs; 4–20 mA signal range; 12-bit resolution with approximately 0.25% FSR accuracy
• Stock Status: Stock condition and hardware revision to be confirmed

Module 3: Technical Product Introduction

A failed analog output can leave a control valve, positioner, drive reference, or other regulating device without a valid command. TRICONEX 3805E is an 8-point TMR analog output module for Tricon safety systems, providing controlled 4–20 mA signals to field devices. The associated 9853-610 is the basic current-output termination panel used with the 3805E/3805H family. Together, the module and termination panel form the field interface required for the analog output circuit. The 3805E uses triplicated output processing and diagnostics to support the Tricon fault-tolerant architecture.

The 3805E provides 12-bit digital-to-analog resolution across its 4–20 mA output range, with a published accuracy characteristic of approximately less than 0.25% of full-scale range under specified conditions. The 9853-610 termination panel provides 8 OUT terminals, 8 RTN terminals, and redundant 24 VDC power connections. The termination panel is designed for commoned-return, DC-coupled analog output service, so the panel part number is not merely a wiring accessory—it is part of the complete field-interface specification.

Module 4: Application Scenarios & Field Realities

• For control-valve positioners, the 3805E converts the Tricon application command into a standard 4–20 mA signal. Before replacement, verify the positioner’s input burden, cable resistance, external loop supply, and configured output scaling; checking the module alone does not prove that the complete loop will regulate correctly.
• On variable-speed drive reference loops, the analog output can provide a continuous speed or capacity command where the safety application requires controlled analog intervention. Confirm the drive’s input scaling and any signal isolator or barrier between the 9853-610 termination panel and the field device.
• Within turbine, compressor, and process-control cabinets, eight analog channels can serve multiple final-control devices from one module position. The 9853-610 uses common-return wiring, so the field common arrangement must agree with the cabinet drawings before applying power.
• During maintenance of an existing Tricon cabinet, treat 3805E and 9853-610 as a matched module-and-termination combination when that is how the installed system was engineered. A correct 3805E fitted to an incompatible termination panel can still produce an unusable field circuit.

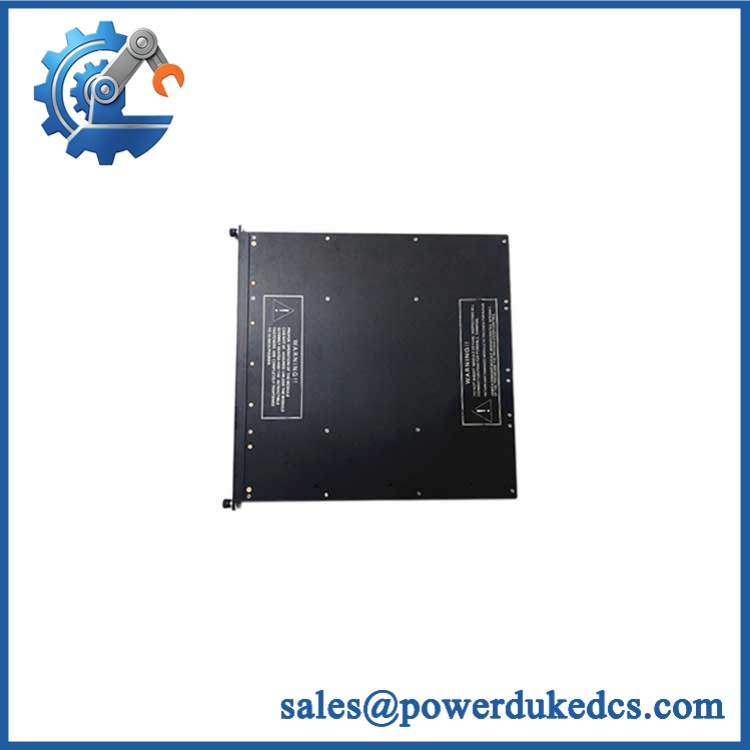

TRICONEX 3805E 9853-610

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Within the Matching Tricon 3805E / 9853-610 Configuration

A like-for-like 3805E replacement is appropriate when the installed Tricon system uses the same 8-point TMR analog-output architecture and the field wiring is terminated through a compatible 9853-610 panel. The module and termination panel should be checked together because the panel establishes the physical field terminals, current-return arrangement, and external loop-power connections.

3805E → 3805H: Configuration Review Required. Both belong to the 8-point 4–20 mA analog-output family and use compatible current-output termination arrangements, but the exact application, hardware revision, and approved system documentation should be checked before substitution.

3805E → 3806E: Hardware Modification Required. The 3806E uses a different analog-output configuration, including six 4–20 mA outputs and two higher-current outputs. Its termination arrangement is different from the standard 3805E interface.

3805E → 3807: Hardware Modification Required. Model 3807 provides bipolar current outputs rather than the standard 4–20 mA interface. The field wiring and receiving-device requirements therefore differ substantially.

⚠️ Field Traps — Watch Out

1. Termination-panel mismatch: The 9853-610 is specifically associated with 3805E/H 4–20 mA output service. Do not substitute a visually similar Tricon analog termination panel without confirming the module compatibility table.

2. Common-return topology: The 3805E/9853-610 arrangement uses commoned-return output wiring. This differs from individually isolated output architectures. Verify the field return arrangement and cabinet grounding before energization.

3. External loop power: The 9853-610 includes terminals for redundant 24 VDC power supplies. Confirm the actual loop-power source, polarity, distribution, and available current at the termination panel before connecting a field positioner.

4. Load resistance: The receiving instrument, cable, barriers, and other series devices all contribute to loop burden. A measured 4–20 mA signal at the termination panel does not guarantee that the final field device receives the required signal under operating load.

5. Module and panel identification: Keep 3805E and 9853-610 as separate inventory identifiers even when supplied together. The 3805E is the electronic analog-output module; 9853-610 is the field termination panel.

Module 6: Quality Assurance SOP

Each TRICONEX 3805E / 9853-610 assembly should undergo a documented module and termination-panel inspection before shipment.

• OEM identification visual inspection: Verify TRICONEX / Invensys markings, 3805E model designation, serial number, hardware revision, connector condition, and module identification labels.
• Termination-panel identification: Verify the 9853-610 part number, revision, terminal markings, cable interface, and physical condition. Keep the panel identifier separate from the electronic-module identifier.
• Mechanical inspection: Examine the 3805E housing, PCB, connectors, ejectors, mounting surfaces, and status indicators. Inspect the 9853-610 terminal panel for damaged terminals, cracked insulation, loose hardware, corrosion, or contamination.
• Power verification: Install the 3805E in an approved Tricon test chassis and verify stable module initialization under the specified system supply.
• Power-on self-test (POST): Confirm expected PASS, FAULT, and ACTIVE indications before beginning analog-output testing.
• Eight-channel analog-output test: Exercise all eight outputs independently using calibrated current-measurement equipment and record representative low-, mid-, and high-range results.
• 4–20 mA verification: Test representative channels around 4 mA, 12 mA, and 20 mA and compare the measured current with the commanded output.
• Resolution and accuracy verification: Verify representative digital-to-analog response against the applicable 12-bit resolution and documented accuracy specification.
• Load simulation: Connect representative resistive loads and verify output regulation under controlled loop-burden conditions.
• Termination-panel continuity test: Check every OUT and RTN path from the module interface through the 9853-610 panel and verify correct point-to-point wiring.
• Redundant power-path test: Where supported by the test arrangement, verify both 24 VDC power-input paths on the 9853-610 and confirm correct operation with each approved supply path.
• Output isolation and fault test: Exercise the authorized analog-output diagnostic procedure and verify expected fault reporting and safe behavior.
• TMR verification: Confirm correct participation of the three processing paths and verify consistent voted analog-output behavior using the approved Tricon test setup.
• Field-loop simulation: Connect representative positioner or actuator interface loads and verify stable 4–20 mA transmission under realistic burden conditions.
• Extended stability test: Operate all eight outputs under controlled loads while monitoring output current, supply stability, diagnostic status, and module temperature.
• Final QC record: Retain photographs of the 3805E and 9853-610 identification labels, hardware revisions, termination-panel condition, eight-channel output measurements, load-test data, diagnostic results, TMR verification, power-path results, and final QC approval.

The TRICONEX 3805E / 9853-610 combination is an 8-point TMR 4–20 mA analog-output interface for Tricon systems. The 3805E provides the electronic analog-output function, while the 9853-610 provides the corresponding basic current-output termination interface with eight OUT terminals, eight RTN terminals, and redundant 24 VDC power connections.

For spare-parts control, keep the two identifiers separate but linked in the warehouse record. The replacement check should cover the 3805E hardware revision, 9853-610 termination-panel compatibility, common-return wiring, external loop power, load burden, output scaling, and TMR configuration before the assembly is released for production use.
