TRICONEX 3900064-003 | Trident I/O Bus Terminator Kit

Description

• Brand: Triconex / Invensys
• Full Model Number: 3900064-003
• System/Series Family: Trident
• Core Function: I/O bus termination for Trident I/O expansion and interconnect architecture
• Top 3 Hardcore Specs: Set of 3 terminators; Trident I/O bus application; used with I/O extender/interconnect assemblies
• Kit Type: I/O Bus Terminator Kit
• Quantity: 3 terminating elements per kit
• Associated Module: 3000678-100 I/O Extender Module
• Associated I/O Interconnect: 2921
• Kit Applications: 2291 I/O Bus Termination Kit for I/O Baseplate; 2292 I/O Bus Termination Kit for MP Baseplate
• Electrical Role: End-of-bus termination / signal integrity control
• Stock Status: New Surplus or Fully Tested Refurbished; exact kit condition to be confirmed

Trident technical documentation identifies 3900064-003 as the I/O Bus Terminator Kit, consisting of a set of three terminators. It is used as part of the 2291 and 2292 I/O bus termination kits.

Module 3: Technical Product Introduction

A Trident I/O bus cannot simply be extended by adding cable. Once the bus reaches an endpoint, proper termination is required to control signal reflections and maintain reliable communication across the three-channel architecture. TRICONEX 3900064-003 is a passive I/O Bus Terminator Kit consisting of three terminating elements for the Trident I/O bus. It is not an active I/O module, processor, or communication controller. Triconex documentation lists the part directly as the terminator component within the 2291 and 2292 termination assemblies.

The relationship with the rest of the Trident hardware is the important specification. The 3900064-003 set of three terminators is combined with the 3000678-100 I/O Extender Module and either the 2921 I/O Interconnect Assembly or 2920 MP Interconnect Assembly, depending on whether the termination point is associated with an I/O baseplate or MP baseplate. The completed 2291 or 2292 assembly therefore provides the actual system-level bus termination function; the 3900064-003 itself should not be marketed as a complete extender module.

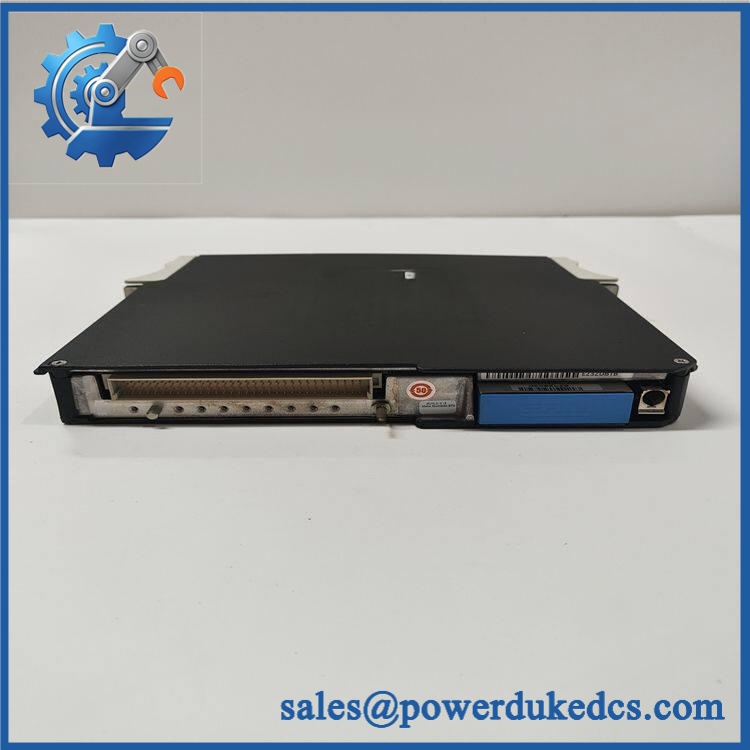

TRICONEX 3900064-003

Module 4: Application Scenarios & Field Realities

• When a Trident I/O column is extended to another cabinet location, the 3900064-003 terminator set forms part of the physical bus-end termination scheme. The objective is not to add functionality, but to preserve correct signal behavior at the end of the extended I/O bus.
• For 2291 installations on an I/O baseplate, the terminator kit works with the 3000678-100 extender and 2921 interconnect assembly. Replacing only the terminator set without verifying the extender and interconnect can leave the overall bus architecture incorrect.
• When terminating an MP-baseplate-side bus through a 2292 arrangement, the same 3900064-003 set is used with the 2920 MP interconnect assembly. That means the terminator part itself is common to both arrangements, while the surrounding assembly determines where it is installed.
• During intermittent remote-I/O troubleshooting, technicians should inspect the terminators alongside the extender modules and interconnect assemblies. A missing, damaged, incorrectly seated, or poorly connected termination element can produce communication instability that looks like an I/O module problem.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement classification: Drop-in Replacement when replacing the same 3900064-003 terminator set within a compatible Trident I/O bus architecture.

Software compatibility: Not applicable. The 3900064-003 is a passive bus-termination component with no programmable firmware or application configuration.

Cross-model replacement: Hardware verification required. Do not replace the set with arbitrary resistor networks or unrelated communication-bus terminators. The electrical characteristics and physical interface must correspond to the Trident I/O bus design.

Field Traps — Watch Out

1. Do not confuse the terminator kit with the complete 2291 or 2292 assembly. The 2291 and 2292 kits contain the 3000678-100 I/O Extender Module, an interconnect assembly, and the 3900064-003 terminator set. Ordering only 3900064-003 does not provide the complete bus-termination assembly.

2. All three terminators are part of the kit. The documented configuration is a set of three terminators, corresponding to the three-channel Trident architecture. A single installed termination element is therefore not equivalent to the complete 3900064-003 kit.

3. Install termination at the correct bus endpoint. Termination belongs at the designated end of the I/O bus. Adding terminators at arbitrary intermediate points can change the electrical characteristics of the bus and create communication problems.

4. Inspect the entire interconnect chain. The bus architecture uses the I/O extender, cable/interconnect assemblies, and terminators as a connected system. If a replacement does not resolve the communication fault, inspect connector integrity, cable condition, extender-module status, and the physical bus topology before replacing additional Trident modules.

5. Do not substitute generic RS-485 termination components. Although the system uses a digital bus, the Trident I/O bus has its own defined hardware architecture. A generic resistor selected only by apparent resistance value does not establish mechanical or electrical equivalence.

Module 6: Quality Assurance SOP

Pre-Shipment Inspection Protocol for TRICONEX 3900064-003

• OEM identity inspection: Verify Triconex/Invensys marking, exact 3900064-003 part number, packaging identification, and kit quantity.
• Kit-content verification: Confirm that the shipment contains three terminating elements, as specified for the 3900064-003 kit.
• Mechanical inspection: Check each terminator for cracks, deformation, damaged leads or contacts, corrosion, contamination, and evidence of unauthorized modification.
• Identification inspection: Record all visible markings and compare the component identity against the Trident parts documentation before release.
• Electrical inspection: Measure each terminating element using an appropriate calibrated instrument and compare the result against the applicable Trident engineering specification for the exact termination component.
• Channel-set verification: Confirm that all three components are electrically consistent with one another; do not release a kit containing one materially different component.
• Interconnect compatibility check: Where the kit is being supplied as part of a 2291 or 2292 assembly, verify compatibility with the 3000678-100 extender module and the appropriate 2921 or 2920 interconnect assembly.
• Visual contamination check: Inspect contact surfaces and connection points for oxidation, oil residue, dust, moisture, or foreign material.
• Fit verification: Where a suitable Trident test assembly is available, install the terminator set at the designated bus endpoint and verify correct mechanical seating.
• Bus integrity test: Operate the complete Trident I/O bus with the terminator set installed and check for stable communication, bus errors, intermittent resets, or diagnostic faults.
• Extended communication test: Run representative I/O traffic for an extended period and monitor for communication degradation attributable to marginal termination.
• Topology verification: Confirm that termination is installed at the intended bus endpoint and that no unauthorized additional termination is present elsewhere on the segment.
• Assembly verification: For a complete 2291 or 2292 kit, confirm that the extender, interconnect assembly, and three terminators correspond to the documented assembly configuration.
• Final QC record: Record part number, kit quantity, individual component inspection results, measured electrical values, associated assembly configuration, bus-test result, test date, and inspector approval.
• ESD and mechanical packaging: Secure all three components against impact, contamination, moisture, and electrostatic exposure during packing and shipment.

Procurement note: TRICONEX 3900064-003 is a passive Trident I/O Bus Terminator Kit, not an I/O module. Triconex technical documentation defines it as a set of three terminators used within the 2291 I/O Bus Termination Kit for an I/O baseplate and the 2292 I/O Bus Termination Kit for an MP baseplate. Both assemblies also incorporate the 3000678-100 I/O Extender Module and the appropriate interconnect assembly.
