ABB UNS0007A-P,V1 HIEE305098R0001 | ABB Unitrol P Firing Board Spare

Description

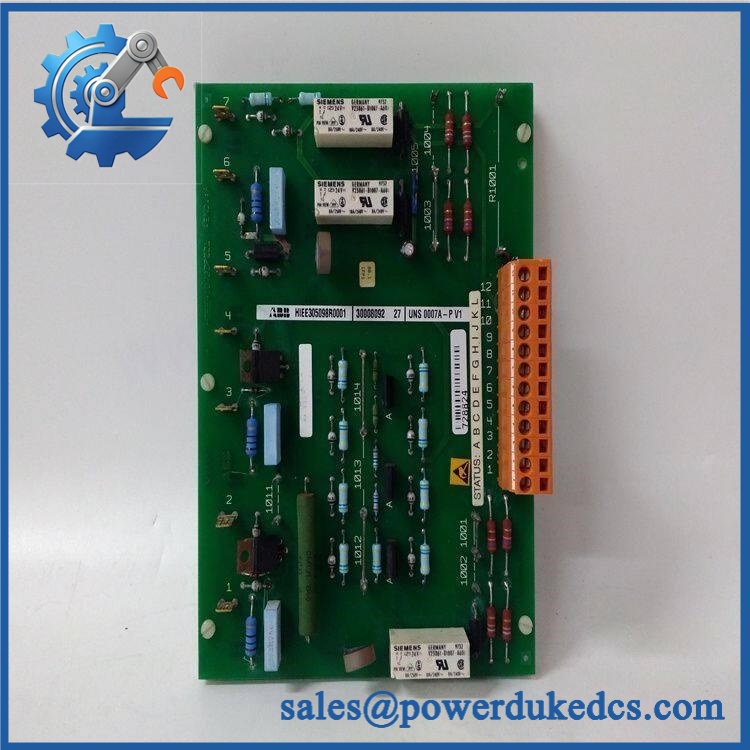

• Model: ABB UNS0007A-P,V1
• Part Number: HIEE305098R0001
• Related Reference: HIEE410730P201
• Brand: ABB
• Series: ABB UNITROL P Excitation System
• Part Type: Firing Board / Excitation System Control Board
• Core Function: Generates and controls the firing signals used by the excitation power-converter stage.
• Key Specs: 1400 V firing-board designation, ABB UNITROL P application, board-level excitation control, and high-voltage thyristor/controlled-rectifier firing application. Multiple industrial listings identify HIEE305098R0001 specifically as the UNS 0007A-P,V1 Firing Board 1400V.

Product Introduction

A firing-board failure in a generator excitation system can have a much larger consequence than a conventional control-board fault. If the firing pulses reaching the power thyristors are lost or distorted, the excitation converter may no longer regulate field current correctly.

ABB UNS0007A-P,V1 HIEE305098R0001 is identified by multiple industrial sources as a 1400 V firing board for ABB’s UNITROL P excitation system. The exact catalog description associates HIEE305098R0001 with UNS 0007A-P,V1: Firing Board 1400V.

This is therefore a specialized excitation-system firing/control board, not a generic PLC digital I/O module. Some reseller pages incorrectly classify the same part as a safety controller, ignition controller, or generic digital I/O card. Those descriptions conflict with the stronger product identification from multiple sources and should not be used for engineering selection.

The 1400 V designation is directly supported by product descriptions for this exact part number.

Weight information varies substantially between suppliers: one listing gives 0.26 kg, while another reports 2 kg shipping weight. The latter is best treated as packaging/shipping information rather than confirmed net board weight.

Application Scenarios & Pain Points

In generator excitation equipment, the UNS0007A-P,V1 functions within the firing-control portion of the power-conversion architecture. A defective firing board can prevent the converter from delivering the commanded excitation current.

For UNITROL P installations, maintaining an exact spare is particularly useful because the board interfaces with the excitation power stage rather than functioning as a standalone general-purpose PLC card. Industrial listings specifically classify it as a UNITROL P Excitation System Firing Board 1400V.

During excitation-system troubleshooting, abnormal field-current regulation, missing firing pulses, or converter faults can point toward the firing circuit after the upstream control and power supplies have been verified.

In power-generation environments with cabinet temperatures above 50°C, thermal conditions should be checked before blaming the firing board. Heat, contamination, and poor cabinet ventilation can accelerate failures in older power-electronics control assemblies.

ABB UNS0007A-P,V1 HIEE305098R0001

Common Error Codes & Diagnostic Symptoms

No verified public source provides dedicated numerical UNS0007A-P,V1 HIEE305098R0001 fault codes, so the following are practical diagnostic symptoms rather than official ABB error codes:

• Missing or Abnormal Thyristor Firing Pulses → Diagnosis: Possible firing-board output-stage failure, control-signal loss, or board power problem. → Action: Verify the firing circuit using the approved UNITROL test procedure; replace the board if the failure follows the module.
• Excitation Converter Not Responding to Control Command → Diagnosis: A firing circuit problem can prevent the controlled-rectifier stage from responding correctly even when the upstream controller is functioning. → Action: Check firing signals, gate-circuit interfaces, and associated power electronics before replacing the board.
• Unstable Field Current / Excitation Regulation → Diagnosis: Distorted, intermittent, or missing firing pulses can produce abnormal converter output and field-current regulation. → Action: Review converter diagnostics and firing-waveform measurements; replace the firing board when board-level failure is confirmed.

Cross-Reference & Lifecycle Migration

Cross-Reference

The relationship between and HIEE410730P201 is reported by several industrial product databases, but the available evidence does not establish that HIEE410730P201 is a direct replacement ordering number. Treat it as a related reference until ABB documentation confirms equivalence.

Direct Replacement

The safest purchasing reference is:

,V1 →

Do not substitute a generic digital I/O card or safety controller simply because some aftermarket websites classify the part that way. The stronger product evidence identifies it as a 1400 V firing board for ABB UNITROL P excitation equipment.

Firmware

A specific user-programmable firmware requirement has not been established for this exact firing-board reference. Configuration compatibility should nevertheless be checked against the host excitation system.

Do not flash firmware or modify board configuration unless the applicable ABB UNITROL procedure explicitly requires it.

Lifecycle

Recommended classification: Legacy / Specialized Limited-Availability Spare.

The part remains visible in aftermarket inventories, but its specialized excitation-system function makes long-term buffer-stock planning worthwhile.

Field Engineer’s Tech Notes

1. Do not diagnose the firing board from the excitation fault alone.
A missing firing pulse can originate upstream in the controller, synchronization circuit, power supply, gate interface, or protection logic. Confirm the signal path before condemning the PCB.

2. Treat the 1400 V designation seriously.
This board belongs to a high-energy excitation power-conversion environment. Never probe or handle the associated firing/power circuitry without following the site’s high-voltage isolation, discharge, and measurement procedures.

Strict QA & Testing SOP

1. Inbound identification — Verify ABB, , and .
2. Reference inspection — Record any HIEE410730P201 marking if present.
3. Nameplate photography — Capture serial number, revision, date code, and all labels.
4. PCB inspection — Check components, solder joints, connectors, traces, and signs of overheating.
5. Connector inspection — Examine firing/control interfaces for oxidation, contamination, or mechanical damage.
6. ESD handling — Use appropriate antistatic protection throughout inspection.
7. Low-energy electrical inspection — Verify applicable board-level supply and continuity parameters using the approved test procedure.
8. Test-rig installation — Install only in a compatible UNITROL P test environment.
9. Control-signal test — Verify the board receives the expected control/synchronization signals.
10. Firing-signal test — Where the approved test setup permits, verify firing outputs using properly rated measurement equipment.
11. Functional test — Confirm correct response within the simulated excitation-control environment.
12. Extended test — Monitor for intermittent firing-signal loss or thermal abnormalities.
13. Final documentation — Record test results, serial number, revision, and actual-unit photographs.
14. ESD packaging — Package in antistatic protection with suitable shock and moisture protection.

Test videos can be provided when available, showing the actual board identification, physical condition, test-rig startup, diagnostic status, and applicable firing-signal test.

Buyer’s FAQ

Q1: What exactly is ABB ,V1 ?
A: It is identified by multiple industrial sources as a 1400 V firing board for an ABB UNITROL P excitation system.

Q2: Is this a PLC safety controller?
A: No. Some reseller pages incorrectly describe it as a SIL 3 safety controller, but that classification conflicts with the more consistent identification of as a UNITROL P 1400 V firing board.

Q3: What is HIEE410730P201?
A: It is reported as a related reference for the ,V1 assembly by several industrial listings. However, direct interchangeability has not been established from authoritative ABB documentation, so it should not be treated as an automatic replacement.

Q4: Can this firing board be hot-swapped?
A: Do not assume so. The board belongs to a high-energy excitation system. Follow the UNITROL P shutdown, isolation, discharge, and replacement procedure.

Q5: What does the 1400 V designation mean?
A: Product listings specifically describe the unit as a “Firing Board 1400V.” This is associated with its excitation power-stage application and should not be interpreted as a generic 1400 V supply rating for the PCB itself.

Q6: How do I verify a New Original ABB unit?
A: Check the actual board for , , ABB markings, serial/traceability information, PCB revision, and physical construction. For a specialized excitation board, request actual-unit photographs plus a functional test report or test video before shipment.
