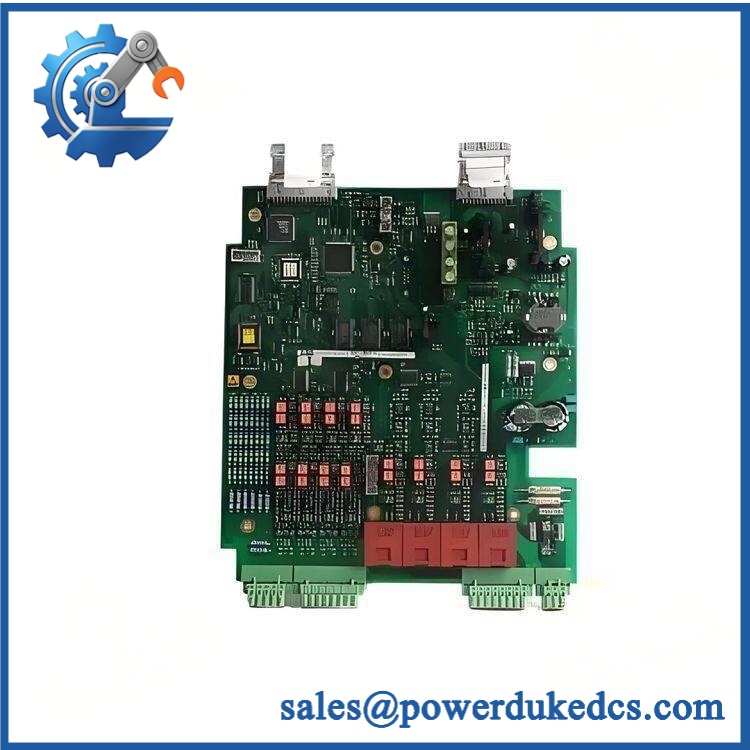

ABB UNS2881B-P,V1 3BHE009319R0001 | MUB PCB

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Part Number: 3BHE009319R0001
• ABB Type Designation: UNS 2881B-P,V1
• Product Type: Measurement Unit Board (MUB) PCB
• Application: UNITROL 5000 excitation systems
• Lifecycle Status: Legacy / stock-dependent
• Core Function: Measurement signal acquisition and processing
• Top 3 Technical Specs: 255 mm length; 31 mm width; 28 mm height
• Net Weight: 0.59 kg
• Country of Origin: Switzerland
• Stock & Condition: New surplus / tested stock, subject to physical inventory

Part-number verification warning: the supplied combination “UNS2880B-P,V1 3BHE009319R0001” does not match ABB’s published identification. ABB’s official product record identifies 3BHE009319R0001 as UNS 2881B-P,V1, MUB PCB completed. ABB documentation separately identifies UNS 2880 B-P V2 with identification number 3BHE014967R0002.

Module 3: Supply Chain & Technical Deep Dive

A wrong identification number can create a much bigger problem than a long lead time. For this spare, procurement should not treat UNS2880B-P,V1 and 3BHE009319R0001 as one confirmed part number. ABB’s own product data identifies 3BHE009319R0001 as a UNS 2881B-P,V1 Measurement Unit Board (MUB) PCB completed, while ABB’s UNITROL 5000 spare-parts documentation lists the UNS 2880 B-P control board under different identification numbers.

For the exact 3BHE009319R0001 reference, ABB’s published data gives a compact PCB format of 255 × 31 × 28 mm and a net weight of 0.59 kg. The board is associated with the UNITROL 5000 family and is identified as a Measurement Unit Board. That makes exact part-number matching important for TCO: keeping one correctly identified MUB as buffer stock can avoid extended generator-excitation downtime, whereas stocking the wrong UNS2880/UNS2881 variant simply ties up capital without solving the failure.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1: UNS2880 vs UNS2881 Identification

This is the main procurement risk.

ABB’s official record says:

• 3BHE009319R0001 → UNS 2881B-P,V1
• Product description → MUB PCB completed
• UNITROL family → UN 5000

By contrast, ABB’s UNITROL 5000 spare-parts document lists UNS 2880 B-P V2 → 3BHE014967R0002 and UNS 2880 B-P V1 → 3BHE014967R0001.

Do not approve the purchase using “UNS2880B-P,V1” as the only identification.

⚠️ Field Trap 2: Verify the Physical PCB

Before removal, photograph:

1. Complete ABB label
2. 3BHE part number
3. Type designation
4. PCB revision
5. Connector arrangement
6. Cabinet slot and wiring

A similar-looking UNITROL board is not sufficient evidence of compatibility.

⚠️ Field Trap 3: ESD

Use a grounded ESD wrist strap and static-safe work surface. Keep the PCB inside its ESD bag until installation.

Module 5: Quality Assurance & Testing SOP

1. Incoming Identity Inspection

• Verify ABB marking.
• Check 3BHE009319R0001.
• Check the type designation printed on the physical board.
• Compare the label against the PO.
• Record serial number and revision where available.
• Inspect PCB edges and connectors.
• Check for corrosion, contamination, burn marks, or repair traces.
• Perform OEM marking and anti-counterfeit visual inspection.

Important: if the physical board says UNS2880B-P,V1 while the identification label says 3BHE009319R0001, stop the inspection and resolve the discrepancy before shipment.

2. Electrical Inspection

• Inspect connector condition.
• Check for visible PCB damage.
• Check for abnormal component discoloration.
• Verify continuity where covered by the approved test procedure.
• Confirm the board is suitable for the intended UNITROL configuration.

Do not invent electrical acceptance limits. Use the applicable ABB service documentation.

3. Power-On Functional Test

On a compatible UNITROL 5000 test setup:

1. Install the board in the approved test position.
2. Apply the specified system power.
3. Observe diagnostic indicators.
4. Verify system recognition.
5. Check communication with the associated control electronics.
6. Record the test result.

4. Measurement Function Test

For the MUB version identified by ABB:

• Verify measurement signal paths.
• Apply approved simulated input signals.
• Check signal acquisition.
• Compare readings against the test reference.
• Monitor diagnostic status.
• Record measurements in the Test Report.

ABB’s documentation explicitly identifies 3BHE009319R0001 as a Measurement Unit Board, so a simple power-on test should not be treated as sufficient functional verification.

5. Final QA and Packaging

• Record part number.
• Record type designation.
• Record board revision.
• Photograph the tested PCB.
• Complete the Test Report.
• Apply QC status.
• Seal in an ESD shielding bag.
• Add shock protection.
• Mark the carton with the exact ABB reference.

For critical excitation-system spares, provide the available inspection photographs before dispatch.

ABB UNS2881B-P,V1 3BHE009319R0001

Module 6: Procurement-Driven FAQ

1. Is ABB 3BHE009319R0001 actually in stock?

Current supplier records show this reference being offered as available, including listings describing it as new and in stock. However, supplier inventory is not the same as ABB factory stock and should be confirmed before issuing an urgent PO.

For overnight or emergency shipping, confirm physical quantity, warehouse location, condition, and carrier cutoff.

2. Why does my request say UNS2880B-P,V1 while ABB identifies this part as UNS2881B-P,V1?

Because the two identifiers appear to have been combined incorrectly.

ABB’s official product record identifies 3BHE009319R0001 as UNS 2881B-P,V1 MUB PCB completed. ABB’s UNITROL 5000 spare-parts document assigns different 3BHE numbers to the UNS 2880B-P control-board versions.

For purchasing, use the complete ABB 3BHE part number plus the physical board designation.

3. How do you verify the condition of this legacy MUB board?

Inspection should cover the ABB label, PCB revision, connectors, PCB surface, component condition, and signs of previous repair.

For tested stock, perform a compatible power-on and functional test. New surplus and tested used units should be identified separately on the quotation.

4. Could I substitute a UNS2880B-P board for this MUB?

Not without engineering confirmation.

The available ABB documentation distinguishes the UNS 2880 B-P control board from the UNS 2881B-P,V1 MUB. Their system roles are different.

If the installed BOM specifies 3BHE009319R0001, match that reference rather than selecting a board based on the UNS2880/UNS2881 naming alone.

5. Are there firmware or configuration issues my engineers should check?

Yes, but the immediate concern is system configuration and exact hardware identity.

Before replacement, record the existing board designation, 3BHE part number, revision, cabinet position, connectors, and associated UNITROL control hardware. If the replacement carries a different revision or type designation, obtain engineering approval before installation.

Procurement Note

Do not publish or quote “UNS2880B-P,V1 3BHE009319R0001” as a confirmed single ABB identity. Based on ABB’s own published records, the safer product title is ABB UNS2881B-P,V1 3BHE009319R0001 MUB PCB.
