Vibro-Meter SIM-275A 200-582-500-013 | VM600 Rack Power Supply

Description

• Brand: Vibro-Meter
• Full Model Number: SIM-275A / 200-582-500-013
• System/Series Family: VM600 Machinery Monitoring System / RPS6U
• One-Sentence Core Function: Rack power supply module providing regulated DC rails for VM600 machinery-monitoring cards
• Top 3 Hardcore Specs: 110/230 VAC nominal input; +5 VDC and ±12 VDC outputs; 330 W maximum output
• Stock Status: New Surplus / Fully Tested Refurbished — actual module configuration verified before shipment

Module 3: Commercial-Technical Deep Dive

A VM600 rack can lose multiple monitoring channels when its common rack supply fails, even though individual MPC4 or I/O cards remain serviceable. The Vibro-Meter SIM-275A, part number 200-582-500-013, is identified in the VM600 documentation as an RPS6U power supply for the 110/230 VAC version. It feeds the VM600 rack’s internal DC rails, with published references identifying +5 VDC and ±12 VDC outputs. The safety-manual reference table distinguishes this unit from the 24 VDC, 48 VDC, 72 VDC, and 110 VDC RPS6U variants, so the suffix is not a cosmetic ordering detail.

For maintenance planning, the key number is the rack-level power budget. Current technical listings specify 330 W maximum output, approximately 84% typical efficiency, an input frequency range of 47–63 Hz, and operating temperature of 0 to 70°C for this 110/230 VAC configuration. Ripple and noise are listed below 50 mV peak-to-peak across the outputs under the cited test conditions. This gives the replacement team concrete acceptance points: confirm the correct input variant, verify all supplied DC rails, and check the rack’s actual load before returning it to service. A power supply that starts normally under light load can still expose a marginal output rail once the full VM600 card complement is energized.

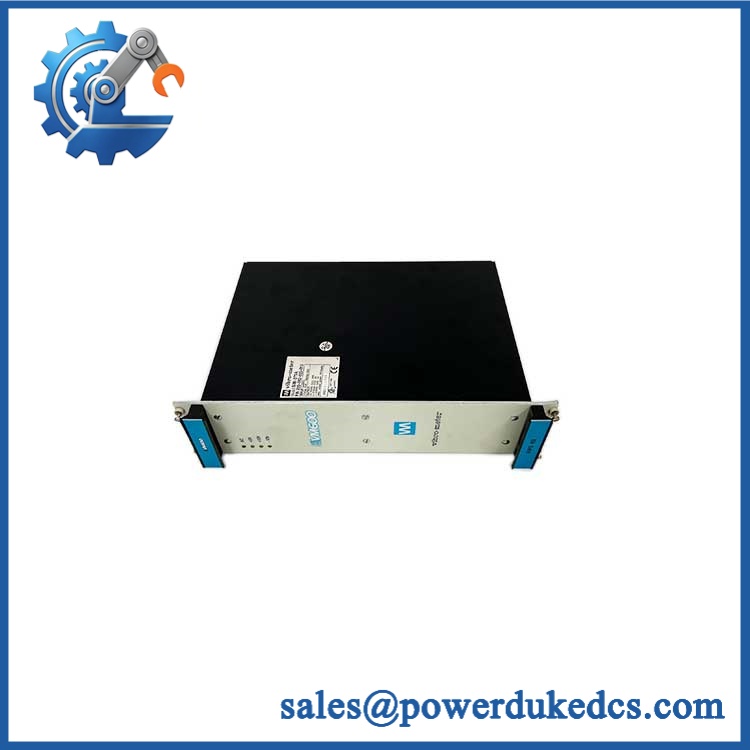

Vibro-Meter SIM-275A 200-582-500-013

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific RPS6U replacement for the rack. Match 200-582-500-013 / SIM-275A rather than ordering an RPS6U by family name only.
• Input variant: The cited safety documentation identifies 200-582-500-013 as the 110/230 VAC version. It is not the same input configuration as the 24, 48, 72, or 110 VDC RPS6U variants.
• Firmware requirement: None for the power-supply module itself. Firmware resides in the monitoring/control cards and associated system components.
• Logic rewrite: Not required for a like-for-like replacement. The rack’s module configuration and downstream protection/monitoring functions should still be checked after power restoration.
• Rack compatibility: Verify the mechanical position, connector/keying arrangement, and exact variant against the installed rack.

⚠️ Field Traps (Watch Out)

• Input-voltage mismatch: Do not assume every uses the same supply. Applying DC to a unit configured for the 110/230 VAC version, or applying an incorrect AC source, is a serious installation error. The 200-582-500-013 designation is specifically associated with the 110/230 VAC version in the safety documentation.
• Output-rail verification: A correct input reading does not prove the supply is healthy. Check the +5 VDC and ±12 VDC rails under appropriate load conditions before declaring the rack operational.
• Rack-load issue: If the rack contains a high number of monitoring cards, measure actual startup and steady-state loading. A supply can pass an unloaded bench check yet show voltage sag when the complete rack is powered.
• Hot-swap assumption: Some third-party descriptions associate units with redundant or hot-swap arrangements, but that does not authorize live withdrawal of this exact configuration without checking the rack architecture and applicable Vibro-Meter procedure. Treat AC input isolation and stored energy as mandatory considerations.

Module 5: Quality Assurance SOP

Our pre-shipment inspection for a Vibro-Meter SIM-275A 200-582-500-013 focuses on exact variant identification and DC-rail performance:

1. OEM anti-counterfeit visual inspection — verify Vibro-Meter identification, SIM-275A designation, full part number, serial/label information, connector construction, PCB condition, and enclosure markings.
2. Variant verification — confirm 200-582-500-013 against the physical nameplate and verify the unit corresponds to the 110/230 VAC configuration.
3. Mechanical inspection — inspect the rack interface, rear connector, locking hardware, ventilation openings, and signs of impact or overheating.
4. Input-stage inspection — inspect AC input terminals, protection components, fuse arrangement where accessible, and signs of insulation damage.
5. Power-on self-test (POST) — apply the appropriate controlled AC input and monitor startup behavior, status LEDs, inrush behavior, and abnormal noise or heating.
6. Output-voltage verification — measure the expected +5 VDC and ±12 VDC rails against the applicable technical reference.
7. Load test — apply a controlled load progressively and monitor output stability, ripple, temperature rise, and abnormal current draw. Do not rely on a no-load voltage check alone.
8. Output protection test — where the test fixture permits, verify protective behavior against representative overload conditions without exceeding the manufacturer’s permitted test limits.
9. Rack handshake verification — install in a compatible test rack where available and verify that powered monitoring cards initialize normally.
10. System-level communication check — confirm that powered rack modules establish their expected controller or monitoring communication after supply activation.
11. Thermal observation — monitor the supply during extended operation; record temperature and output behavior under representative rack loading.
12. Final QC record — retain photographs, part number, serial number, input measurements, output-rail measurements, load-test results, and final inspection status.
13. ESD and mechanical packaging — protect the module against electrostatic discharge, connector impact, moisture, and vibration before shipment.

The cited technical references identify 330 W maximum output, 84% typical efficiency, and less than 50 mV peak-to-peak ripple/noise under the stated conditions. These are useful laboratory checkpoints when evaluating a surplus unit instead of accepting a simple “powers on” result.

Module 6: CRO-Driven Buyer FAQ

1. Is the Vibro-Meter SIM-275A 200-582-500-013 obsolete, and how do I verify the correct unit?

The 200-582-500-013 designation is a power-supply part number. The most important verification point is the complete part number and input variant: documentation identifies this number as the 110/230 VAC supply. Do not substitute another voltage version simply because the mechanical module appears similar.

2. Can the be hot-swapped?

Do not assume that it can be safely withdrawn under power. Whether live replacement is permissible depends on the specific rack architecture, redundancy arrangement, and applicable maintenance procedure. For a single-supply installation, isolate the AC input and follow the approved electrical safety procedure before removal.

3. What outputs does 200-582-500-013 provide?

Current references identify the output rails as +5 VDC and ±12 VDC, with a maximum output rating of approximately 330 W for this configuration. Verify the actual unit’s label and applicable technical documentation before using those values for cabinet design.

4. Can I replace 200-582-500-013 with another module?

Not automatically. documentation distinguishes multiple variants by input voltage, including 24 VDC, 48 VDC, 72 VDC, 110 VDC, and 110/230 VAC versions. The replacement must match the installed rack’s electrical input requirement and physical configuration.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical unit supplied. Technical support should cover part-number verification, variant identification, input/output checks, rack-load assessment, and documented pre-shipment test results. It should not substitute for qualified electrical commissioning or machinery-protection engineering.
