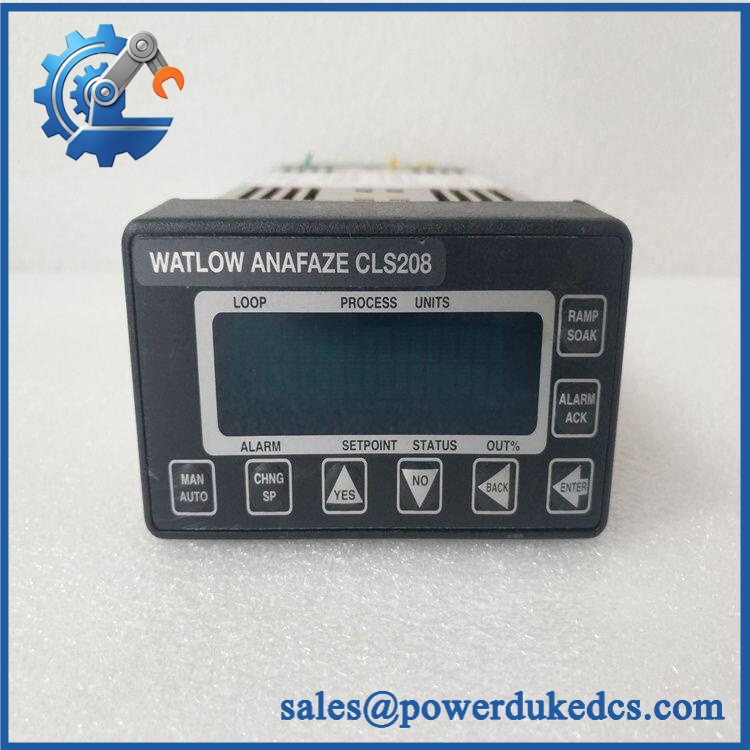

1. WATLOW ANAFAZE CLS208 | Factory Tested Process Module

2. At-A-Glance Executive Brief

• Model: CLS208
• Brand: WATLOW ANAFAZE
• Series: CLS200 Process Control Series
• Part Type: Multi-Loop Temperature Controller
• Core Function: Provides multi-zone PID temperature regulation, sensor monitoring, and process control for industrial heating applications.
• Key Specs:
  • Supports up to 8 control loops plus 1 pulse loop.
  • Provides 8 analog inputs with full-range input capability plus one pulse input.
  • Supports thermocouple, RTD, voltage, current, and pulse input configurations depending on setup.
  • Includes PID control, ramp/soak functions, alarms, and serial communication options.
  • Designed for industrial thermal processing equipment.

3. Product Introduction

Structure A — Pain-point Hook

A failed temperature controller can stop an entire production section when multiple heating zones depend on the same control platform. In thermal processing equipment, an unstable CLS208 can create overshoot alarms, uneven heating profiles, or prevent recipes from completing correctly.

Installed as part of the Watlow Anafaze CLS200 control family, the CLS208 manages multiple independent temperature loops through centralized sensor measurement and PID regulation. The controller is frequently found in ovens, semiconductor equipment, plastics machinery, and laboratory process systems (—where temperature uniformity directly affects product quality). Verify sensor types, output modules, communication settings, and stored parameters before replacement. A controller with the same model number still requires correct configuration data to return to service.

4. Core Technical Specifications

5. Application Scenarios & Pain Points

With vs. Without comparison:

Without a functioning CLS208, multi-zone thermal equipment may lose independent temperature regulation, causing process instability and production interruptions. With a correctly configured replacement, operators can restore loop monitoring and PID control after parameter verification.

• Semiconductor Processing Equipment: Maintains chamber and heater zone temperatures where small thermal deviations can affect wafer process results.
• Industrial Ovens and Furnaces: Controls multiple heating zones requiring stable ramp and soak profiles.
• Plastics Processing Machines: Regulates barrel, nozzle, and mold temperatures during manufacturing cycles.
• Laboratory Equipment: Supports controlled heating applications requiring repeatable temperature profiles.
• Packaging and Manufacturing Lines: Maintains thermal process stages where production speed depends on accurate temperature control.

For cabinets installed near continuous heat sources, check internal temperatures above 50°C. Excessive heat can accelerate aging of display components, power electronics, and internal memory devices.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Sensor Input Failure / Temperature Display Error
→ Diagnosis: Open thermocouple circuit, incorrect RTD wiring, damaged input channel, or incorrect sensor configuration may prevent accurate measurement.
→ Action: Verify sensor wiring and configuration, then replace the CLS208 if the input hardware is defective.

Symptom/Code: Control Output Not Switching
→ Diagnosis: Failed output driver, incorrect PID settings, or external SSR/relay failure may prevent heater activation.
→ Action: Check external switching devices and replace the controller if output channels fail testing.

Symptom/Code: Communication Loss / RS-232 or RS-485 Fault
→ Diagnosis: Incorrect communication parameters, cable issues, or serial interface failure may interrupt host communication.
→ Action: Verify baud rate and wiring, then replace the controller if the interface hardware fails.

7. Cross-Reference & Lifecycle Migration

• Compatible Platform: Watlow Anafaze CLS200 temperature control family.
• Related Models:
  • CLS204 — lower loop-count version.
  • CLS216 — higher loop-count version.
• Configuration Transfer: Store loop parameters, PID values, alarm limits, and input scaling before replacement.
• Firmware Requirement: Verify firmware compatibility when replacing older CLS200 controllers.
• Migration Consideration: Modern Watlow control platforms may require engineering changes because wiring, communication methods, and configuration tools can differ.
• Lifecycle Status: Legacy / Limited Availability

For spare inventory planning, keep a tested CLS208 unit with saved configuration files. A replacement controller without the original loop settings may require complete process retuning.

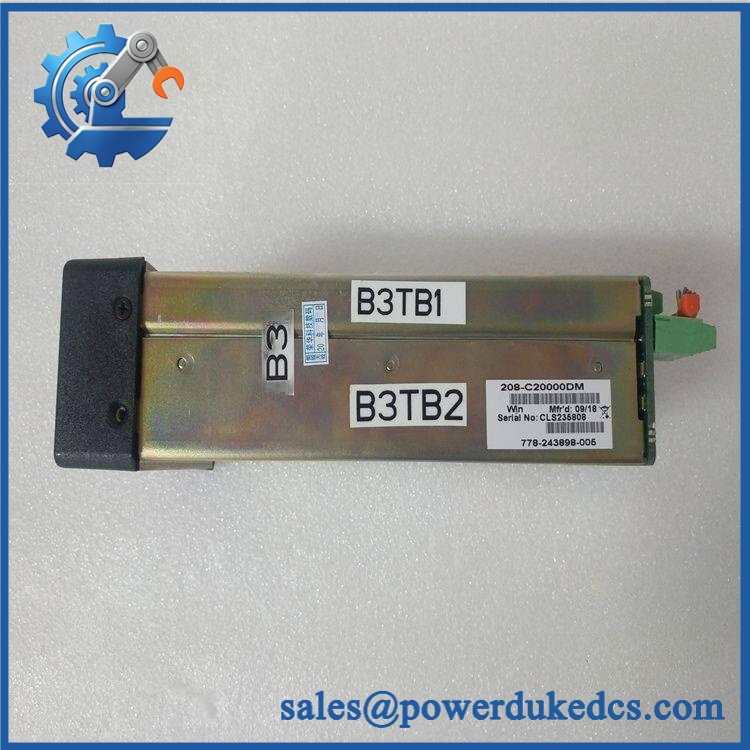

WATLOW ANAFAZE CLS208

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not assume every temperature input uses the same wiring method.
   Thermocouple polarity, RTD wiring arrangement, and input scaling must match the original configuration. Incorrect wiring can look like a failed controller.
2. Check the output hardware before replacing the controller.
   Heater failures are often caused by external SSRs, contactors, or wiring faults. Confirm the CLS208 output signal first.

9. Strict QA & Testing SOP

A professional inspection process for WATLOW ANAFAZE CLS208 should include:

Step 1 — Incoming Inspection

• Verify model marking: CLS208.
• Record serial number and hardware revision.
• Inspect terminal blocks, connectors, enclosure, and display area.
• Check for corrosion or physical damage.

Step 2 — Electrical Verification

• Confirm power supply operation.
• Verify input channel response.
• Check output channel activation.

Step 3 — Functional Testing

• Connect to a compatible temperature simulation test system.
• Apply simulated thermocouple/RTD signals.
• Verify PID response.
• Test alarm functions.

Step 4 — Communication Testing

• Verify RS-232/RS-485 communication.
• Confirm protocol response.
• Check parameter read/write functions.

Step 5 — Packaging Control

• Place controller in anti-static protective packaging.
• Protect terminal connections.
• Attach inspection documentation.

Test videos, parameter records, and inspection photographs are available for quality verification.

10. Buyer’s FAQ (Dynamic Q&A)

Q1. Can the WATLOW ANAFAZE CLS208 be hot-swapped?

A: No. Temperature controllers should normally be replaced after equipment shutdown and heater isolation. Removing the controller during operation may interrupt active thermal processes.

Q2. “How do I confirm this is a genuine CLS208?”

A: Verify the WATLOW ANAFAZE label, model number, serial information, terminal configuration, and supplier inspection records.

Q3. Does the CLS208 include the original temperature profiles and PID parameters?

A: The hardware does not automatically contain the machine process settings. Loop tuning values, alarms, and ramp/soak profiles should be restored from the original backup.

Q4. Is the CLS208 still manufactured?

A: The CLS200 family is considered a legacy control platform. Availability is generally through existing inventory, repair channels, and specialized industrial spare suppliers. Replacement planning should include configuration backups and tested spare units.
