Description
- Model: XV C769 AE101
- Brand: ABB
- Part Number: 3BHE006373R0101
- Part Type: OEI Board / Optical Electrical Interface Board
- Host Systems: ABB ACS5000 / ACS6000 drive systems; ABB documentation also lists the board in ACS2000 spare-parts documentation.
- Net Weight: Approximately 0.1 kg according to an ABB product listing.
Technical Introduction
When an OEI board fails, replacing the correct board-level assembly is generally preferable to making uncontrolled changes elsewhere in the drive cabinet.
ABB 3BHE006373R0101, designated XV C769 AE101, is an OEI-Board, Coated. ABB documentation identifies it as an Optical Electrical Interface (OEI) Board used as a spare component in medium-voltage drive equipment; ABB’s ACS2000 spare-parts documentation lists one unit per cabinet in the relevant filter assembly. ABB-indexed product information also identifies applications in the ACS5000 and ACS6000 families. A documented product listing gives approximate dimensions of 173 × 109 × 25 mm and a net weight of 0.1 kg.
Engineer’s Takeaway: Treat 3BHE006373R0101 / XV C769 AE101 as a board-level drive spare, and verify the exact drive model, cabinet position, revision, and mating connections before installation.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE006373R0101 |
| Type Designation | XV C769 AE101 |
| Product Type | OEI Board / Optical Electrical Interface Board |
| Description | OEI-Board, Coated |
| Approx. Dimensions | 173 × 109 × 25 mm |
| Product Net Weight | 0.1 kg |
| Applicable Drive Families | ACS5000 / ACS6000; also documented in ACS2000 spare-parts documentation |
| Country of Origin | Switzerland (CH) in ABB-indexed product data |
| Customs Tariff Number | 85049099 in ABB-indexed product data |
| Selling Unit | 1 piece |

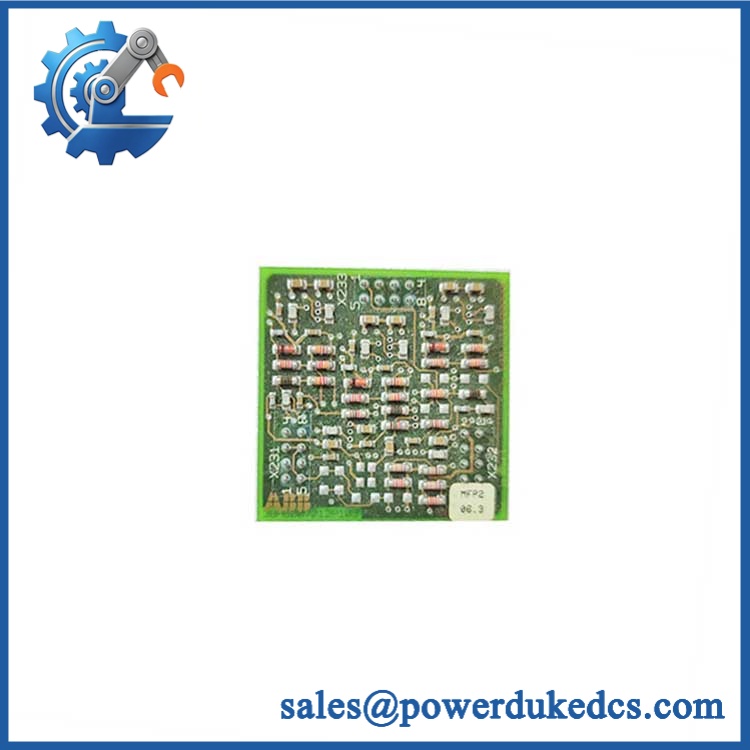

ABB XV C769 AE101 3BHE006373R0101
The ACS2000 spare-parts manual specifically lists 3BHE006373R0101 as an Optical Electrical Interface (OEI) Board with a cabinet quantity of one. ABB-indexed product information identifies the item as OEI-BOARD, COATED and records a 0.1 kg product net weight.
Field Engineer’s Tech Notes
- Check the optical/electrical interface before powering the drive. Do not force connectors or rely on cable routing from memory. Photograph the original board and connector arrangement before removal, then verify the replacement against the drive documentation.
- Confirm the drive family and board revision. The same-looking PCB is not automatically interchangeable across different medium-voltage drive configurations. The ABB spare-parts documentation places this OEI board within specific drive assemblies, so verify the cabinet BOM and installed hardware before substituting.
Adaptive QA & Testing Protocol
Incoming QA starts with 3BHE006373R0101 / XV C769 AE101 part-number verification, visual inspection, PCB coating inspection, connector inspection, and comparison with the buyer’s existing board.
For an approved test setup, functional checks should focus on the board’s role in the drive interface rather than generic PLC I/O testing. The replacement can be checked for correct physical connections, diagnostic behavior, and communication/interface operation within the applicable ABB drive test environment.
ABB’s spare-parts documentation confirms the board’s placement within the drive assembly. Test reports, inspection photographs, and available test videos can be supplied upon request.
ABB XV C769 AE101 3BHE006373R0101
Buyer’s FAQ
Q: What equipment is 3BHE006373R0101 used with?
A: ABB documentation and indexed product data identify the OEI board with ACS5000 and ACS6000 medium-voltage drive systems, while ABB’s ACS2000 spare-parts documentation also lists it as an OEI board. Verify the exact drive configuration before ordering.
Q: Is XV C769 AE101 the same part as 3BHE006373R0101?
A: Yes. XV is the ABB type designation associated with product ID 3BHE006373R0101.
Q: Is the replacement available new or refurbished?
A: Availability depends on current stock. New Surplus (NSFP), new OEM, and refurbished units should be quoted as separate conditions, with the condition clearly stated on the PO.
Q: What should I provide when requesting a replacement?
A: Provide the complete 3BHE006373R0101 part number, XV designation, host drive model, cabinet or assembly reference, and photographs of the existing board label and connectors. This reduces version and compatibility errors.
