Description
- Model: XVC769 AE101
- ABB Part Number: 3BHE006373R0101
- Part Type: OEI Board / PC Board
- System Association: ABB AC800M-related automation architecture
- Lifecycle: Legacy ABB hardware; verify system revision before replacement
Technical Introduction
When an XVC769 board fails, replacing the exact assembly is often preferable to changing the surrounding control architecture.
The ABB 3BHE006373R0101 XVC769 AE101 is identified in industrial automation references as an XVC769 AE101 OEI board / PC board. Some secondary references associate the board with ABB AC800M and related automation architectures. Publicly available documentation for this exact board is limited, so compatibility should be checked against the installed cabinet documentation, board revision, connector arrangement, and host equipment before approving a replacement.
Best Suited For
- ABB legacy control-system maintenance
- Replacement of failed XVC769 AE101 assemblies
- Spare inventory for planned shutdowns and corrective maintenance
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | XVC769 AE101 |
| Part Number | 3BHE006373R0101 |
| Part Type | OEI Board / PC Board |
| Product Family | |
| Application | Industrial automation / control systems |
| Associated Architecture | ABB AC800M-related systems |
| Condition | New surplus or refurbished availability should be confirmed by lot |

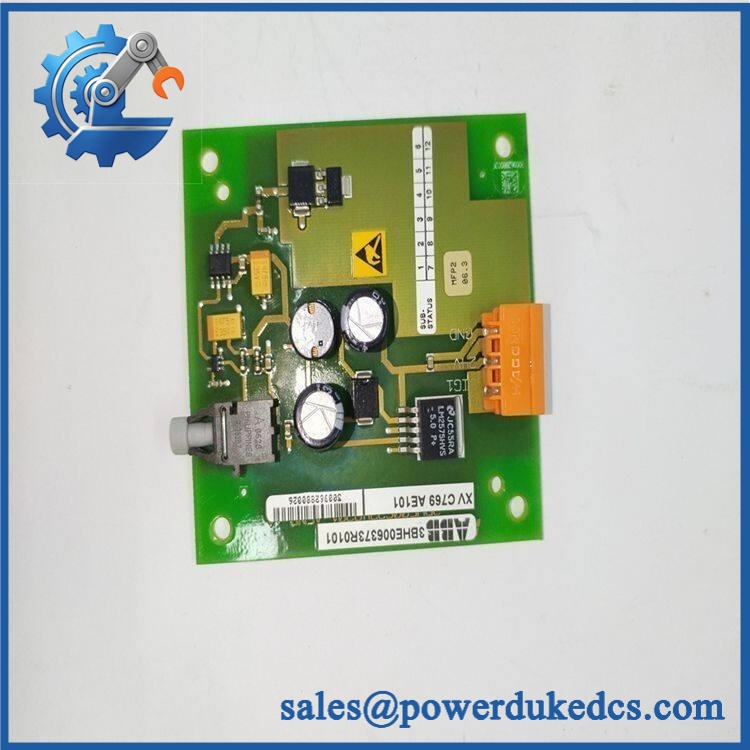

ABB XVC769 AE101 3BHE006373R0101
The AE101 is specifically listed as 3BHE006373R0101 in multiple industrial automation references. One source identifies it as an OEI board, while another identifies it as an ABB PC board.
Please refer to the OEM datasheet for complete electrical ratings, environmental tolerances, connector pin assignments, dimensions, firmware requirements, and approved system combinations.
Field Engineer’s Tech Notes
- Check the complete board identification. Confirm and 3BHE006373R0101, including any revision or suffix markings, against the installed board. Do not approve an -family substitution solely because the board looks physically similar.
- Verify the host system before installation. Secondary-market listings associate this part with ABB AC800M-related systems, but exact system compatibility can depend on the installed hardware and revision. Capture the existing board label and cabinet identification before removing the failed unit.
Adaptive QA & Testing Protocol
For an board, incoming QA starts with identification and PCB-level inspection. We check the part number, board revision markings, connectors, mounting points, PCB condition, corrosion, component damage, and evidence of overheating or previous repair.
Where a suitable ABB test environment is available, the board is powered and checked within the applicable host architecture. Functional verification is focused on the board’s actual interface/control role rather than relying on a generic power-up test.
Test records are retained against the unit identification where testing is performed.
Inspection photographs, test reports, and available test videos can be provided upon request.

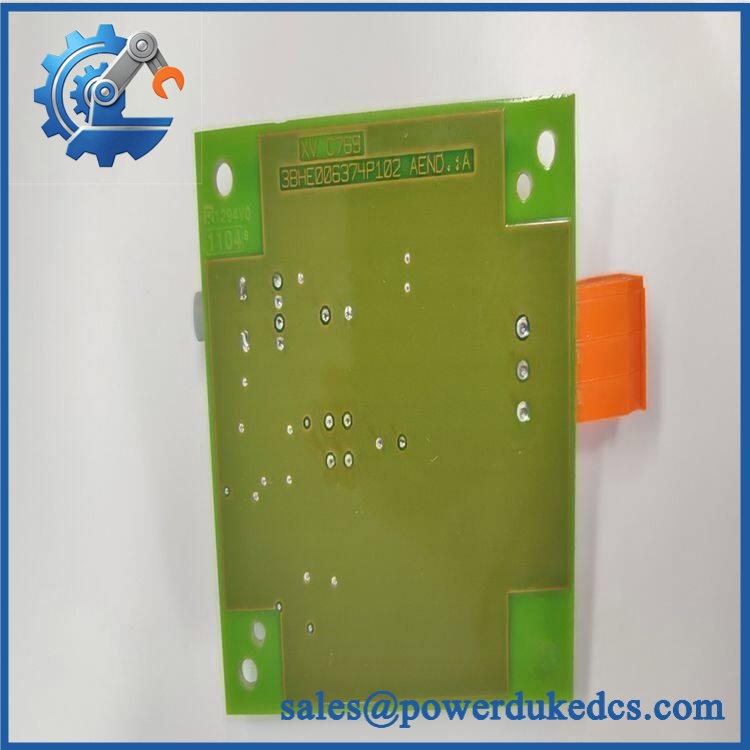

ABB XVC769 AE101 3BHE006373R0101
Buyer’s FAQ
Is ABB 3BHE006373R0101 a direct replacement?
It can be used as a replacement where the installed equipment is specified for the same assembly. Confirm the complete part number, revision, host system, and cabinet documentation before installation.
Is the board available new or refurbished?
Condition depends on current stock. New surplus, new old stock, and refurbished units may be available. Confirm condition and test status when requesting a quotation.
Can you provide a test report?
Yes. When functional testing is available for the specific unit, inspection records and test documentation can be supplied upon request.
What information should I provide for a compatibility check?
Provide the existing board’s 3BHE006373R0101 / label photo, revision information, host controller or system model, and cabinet/application details. This is more reliable than matching the model number alone.
