- Bently Nevada 3500/05-01-02-00-00-01 | Certified Machinery Monitor Spare
2. Unboxing & Physical Snapshot
- Model & Brand: Bently Nevada 3500/05-01-02-00-00-01 System Rack for the 3500 Machinery Condition Monitoring platform. This configuration identifies a full-size 19-inch EIA rack with 14 module positions and CE compliance option.
- Approximate Physical Dimensions: Approximately 19.0 × 13.75 × 10.47 in. (482.6 × 349.2 × 265.9 mm).
- Estimated Shipping Weight: Approximately 10–14 lb (4.5–6.3 kg), depending on packaging and included accessories.
- What’s in the Box:
- Bently Nevada 3500/05 system rack assembly
- Rack backplane
- Front rack frame
- Rear wiring access area
- Mounting hardware
- CE identification label
- Protective packaging materials
- Documentation when supplied
3. Product Introduction
The 3500/05-01-02-00-00-01 is the mechanical foundation of a Bently Nevada 3500 monitoring system. Installed in a standard 19-inch EIA rack environment, it provides the physical backplane, module alignment, and power distribution structure required for 3500 monitoring modules, rack interface modules, and power supplies. The far-left rack positions are reserved for power supply and rack interface functions, while remaining positions accept compatible 3500 Series modules. (This arrangement is critical during outage replacements because incorrect slot planning can delay restoration.)
This rack is not an active measurement device by itself. It is the infrastructure that allows vibration monitoring modules to communicate and receive power. Inspect the rear connectors, mounting rails, and backplane surfaces before installation. Mechanical damage to the rack can create intermittent module communication issues that resemble failed monitoring cards.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/05-01-02-00-00-01 |
| Product Type | 3500 System Rack |
| Rack Size | Full-size 19-inch EIA rack |
| Module Capacity | 14 available module slots |
| Mounting Configuration | Rack mount for 19-inch EIA rails |
| Compliance Option | CE |
| Application | Machinery condition monitoring systems |
| Compatible Modules | Bently Nevada 3500 Series monitor modules |
| Backplane Type | 3500 Series system backplane |
| Power Distribution | Supports 3500 power supply modules |
| Communication Support | Internal module communication bus |
| Approximate Dimensions | 48.26 × 34.92 × 26.59 cm |
| Approximate Weight | 4.5 kg shipping reference |
| Operating Environment | Industrial control cabinet installation |
| Cooling Method | Cabinet airflow / convection-assisted cooling |

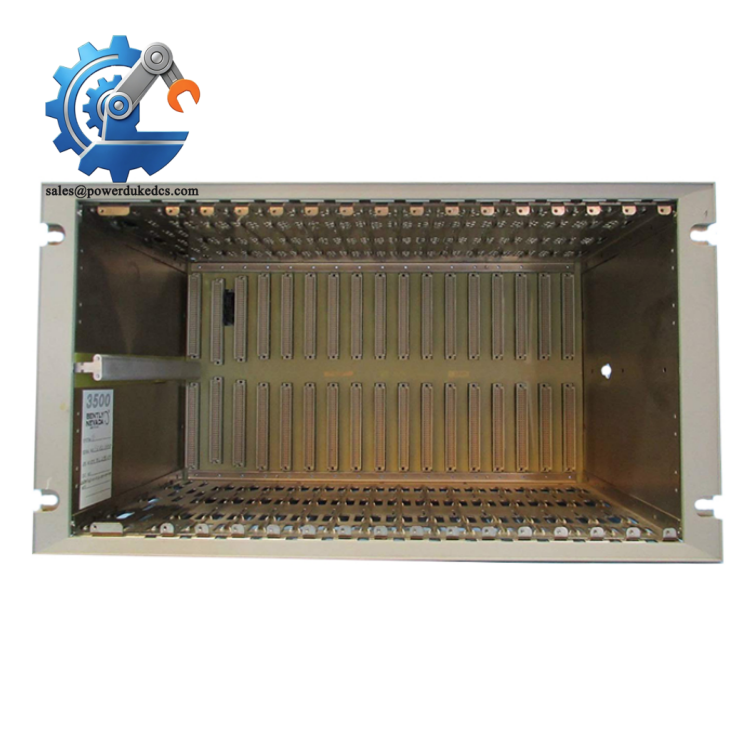

Bently Nevada 3500/05-01-02-00-00-01
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the Bently Nevada 3500/05-01-02-00-00-01 include:
- CE Mark compliance option for applicable European installations
- UL/cUL evaluation may apply to the complete monitoring system installation
- RoHS compliance depending on manufacturing revision
- IEC industrial equipment requirements through the installed monitoring system
- ATEX/IECEx suitability only when installed as part of a certified hazardous-area monitoring package
- Marine approvals such as DNV GL only when specifically qualified for marine service
The CE marking option indicates that the rack configuration was prepared for applicable European conformity requirements. This matters during audits because installed machinery monitoring systems often require documented evidence that hardware matches the approved equipment configuration.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the 3500/05 rack in its original protective packaging whenever possible. The rear backplane connectors and internal signal paths should remain covered because dust contamination can create poor contact conditions after years in storage.
Maintain warehouse humidity below 60% RH. Avoid storing the rack near welding areas, battery rooms, or chemical storage zones where airborne contaminants can affect metal surfaces.
Inspect the rack before deployment. Check the mounting flanges, connector pins, rack screws, and backplane condition. A visual inspection now is cheaper than troubleshooting intermittent vibration-monitoring faults during a turbine shutdown.
7. Physical Installation Prerequisites
- Install the rack in a standard 19-inch EIA equipment frame.
- Verify cabinet structural support before mounting the full rack assembly.
- Maintain approximately 50 mm minimum clearance around ventilation paths to support cabinet airflow.
- Ensure the rack chassis is bonded to protective earth according to site electrical standards.
- Confirm rear wiring access requirements before selecting rack location.
- Inspect module guides and retaining hardware before inserting monitoring modules.
- Verify power supply and rack interface module placement on the left side of the rack.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Bently Nevada 3500/05 rack?
A: Industrial monitoring racks are commonly evaluated under HS classifications for electrical control equipment or rack-based control assemblies. Some suppliers classify similar equipment under HS 8537 categories, but the final Harmonized System code depends on the importing country’s customs interpretation. Confirm the tariff code with your customs broker before export.
Q: Why is Country of Origin important for this spare rack?
A: Country of Origin affects customs declarations, contractual documentation, and regulated industrial project records. The 3500/05 rack is commonly identified as manufactured in the USA, but the actual COO should be verified against the physical label and commercial documents.
Q: Should shipping insurance be included for this rack assembly?
A: Recommended. The rack frame is mechanically durable, but the backplane and connector assemblies are precision components. Use impact-resistant packaging, moisture protection, and insured freight for critical plant spares.
Q: Does the 3500/05-01-02-00-00-01 include firmware pre-loaded?
A: No. This component is a passive system rack and does not contain application firmware like active monitoring modules or communication processors. Firmware compatibility depends on the installed 3500 Series modules, rack interface module, and system configuration
