Bently Nevada 3500/22 288055-01 | Industrial Machinery Module

2. Unboxing & Physical Snapshot

Model & Brand: Bently Nevada 3500/22 Transient Data Interface (TDI), Part Number 288055-01
Product Type: Standard Transient Data Interface Module with USB configuration cable support for the Bently Nevada 3500 machinery protection platform. The module provides rack interface functions and machinery data communication capability.
Approximate Physical Dimensions (W × H × D): Approximately 24.4 × 241.3 × 241.8 mm (0.96 × 9.50 × 9.52 in.) for the module assembly.
Estimated Shipping Weight: Approximately 3 kg (6.6 lb) for a packaged module assembly; the module itself is approximately 0.91 kg before accessories and packing materials.
What’s in the Box:
- Bently Nevada 3500/22 TDI module
- Part number 288055-01 standard transient data interface assembly
- USB configuration cable (when supplied as complete spare package)
- Front panel with status indicators
- Protective ESD shielding bag
- Conductive foam support
- Documentation package when available

3. Product Introduction

The Bently Nevada 3500/22 288055-01 installs into the dedicated Rack Interface Module position of a 3500 machinery protection rack. It occupies Slot 1 beside the power supplies and provides the communication bridge between monitoring modules and host software systems. (Incorrect slot placement or poor backplane contact condition can create avoidable commissioning issues.)

This TDI module collects steady-state and transient machinery data from compatible 3500 monitoring modules and transfers information to condition monitoring software through supported communication interfaces. It is commonly maintained as a critical spare in turbine, compressor, and rotating equipment protection systems where configuration matching is mandatory. The 3500/22 is not part of the primary protection trip path, but it remains important for diagnostics, data collection, and system visibility.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Bently Nevada
Part Number	288055-01
Model	3500/22 Standard Transient Data Interface
Product Type	Rack Interface / Machinery Data Communication Module
Platform Compatibility	Bently Nevada 3500 Machinery Protection System
Installation Position	Slot 1, adjacent to power supplies
Main Function	Collects and transfers machinery monitoring data
Configuration Interface	USB configuration port
Host Communication	Requires compatible 3500 communication I/O configuration
Supported Data	Steady-state and transient machinery data
Rack Interface Function	Replaces 3500/20 Rack Interface Module functions
Power Source	Supplied through 3500 rack backplane
Typical Power Consumption	Approximately 10 W class (system dependent)
Operating Temperature	Approximately -20°C to +65°C (configuration dependent)
Storage Temperature	Approximately -40°C to +85°C
Humidity	Up to 95% RH, non-condensing
Module Width	Approximately 24.4 mm
Module Depth	Approximately 241.8 mm

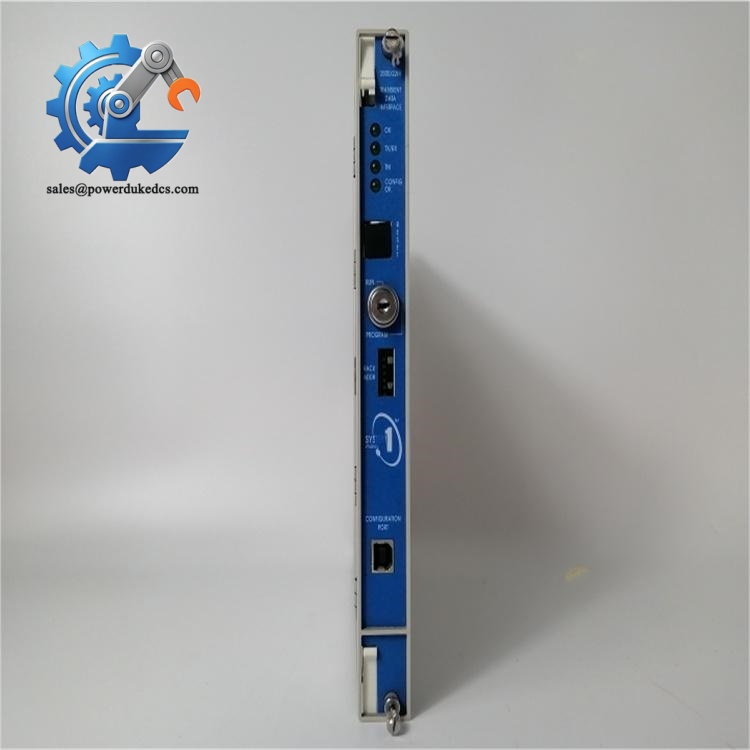

Bently Nevada 3500/22 288055-01

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for the Bently Nevada 3500/22 288055-01 include:

CE Mark: Applicable for supported configurations meeting electromagnetic compatibility requirements.
UL/cUL Recognition: May apply depending on the complete 3500 rack assembly approval.
ATEX / IECEx: Available only for specific certified system configurations and installation conditions.
CSA/NRTL Approval Options: Certain complete 3500/22 assemblies may include agency approval variants.
Marine Approvals (DNV GL): Applicable only when supplied as part of an approved marine or offshore machinery monitoring package.
RoHS Compliance: Depends on manufacturing revision and production date.

For rotating equipment protection systems, certification control extends beyond the individual module. The rack configuration, enclosure, wiring practices, and hazardous-area installation requirements must remain consistent with the approved design.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the 3500/22 288055-01 inside its original anti-static shielding bag during storage. The rear connector interface and internal electronics are vulnerable to ESD exposure and airborne contamination.

Maintain warehouse humidity below 60% RH and avoid storage locations near chemical processing areas or battery rooms. Corrosive environments can damage connector plating and reduce long-term reliability.

Inspect stored modules every 12-24 months. Examine the connector pins, front-panel indicators, retaining hardware, and PCB condition. Before installation, verify the module revision and compatibility with the existing 3500 rack configuration (legacy systems are sensitive to exact hardware matching).

7. Physical Installation Prerequisites

Install the 3500/22 288055-01 only in a compatible Bently Nevada 3500 rack.
Mount the module in Slot 1 directly beside the rack power supplies.
Maintain approximately 50 mm clearance around cabinet airflow paths where enclosure design permits.
Confirm rack grounding before insertion.
Inspect the backplane connector for dust, oxidation, or damaged contacts.
Use the ejector handles to seat the module evenly.
Verify communication wiring and network interface hardware before startup.
Confirm configuration software compatibility before loading parameters.

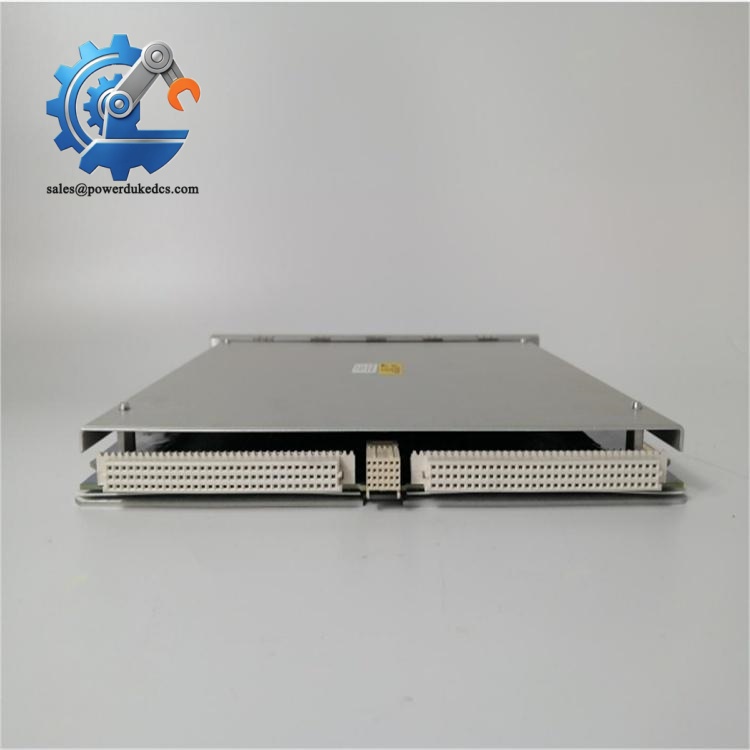

Bently Nevada 3500/22 288055-01

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for a Bently Nevada 3500/22 288055-01 shipment?

A: Classification depends on the declared function and importing country’s customs interpretation. Electronic monitoring and communication modules are often reviewed under HS headings related to data-processing equipment or industrial control assemblies. Confirm the final Harmonized System code with your customs broker.

Q: Does Country of Origin affect purchasing approval?

A: Yes. COO documentation supports import clearance, customer audit records, and asset traceability. The supplier should provide origin information matching the product label and shipment documentation.

Q: Should this module be shipped with insurance coverage?

A: Recommended. The 3500/22 288055-01 contains specialized electronic assemblies used in critical machinery monitoring systems. Protect shipments against impact, moisture exposure, and loss during international transportation.

Q: Does the 3500/22 288055-01 include the latest firmware pre-loaded?

A: Not necessarily. Firmware and configuration status depend on the module revision, previous service history, and supplier inventory condition. Verify firmware compatibility, rack configuration, and installed software versions before commissioning.
