Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: GCC960C102 3BHE033067E0102
• Related Part Number: 3BHE033067R0102
• Lifecycle Status: Legacy / availability dependent
• Core Function: Phase interface and drive control signaling
• Product Type: Phase Interface / Logic Board
• Top 3 Technical Specs: 24 VDC nominal supply; fiber-optic interface; ABB drive and power-conversion applications
• Typical Platform: ABB power electronics / drive systems
• Stock & Condition: New Surplus / Tested Refurbished; confirm actual inventory

Available product references identify GCC960C102 with both 3BHE033067E0102 and 3BHE033067R0102 identifiers, while another source associates the assembly with ABB UNITROL 6000 and MEGADRIVE-LCI platforms.

Module 3: Supply Chain & Technical Deep Dive

When a phase-interface board fails inside a power-conversion cabinet, the replacement is not a generic PCB swap. The board sits close to the power-electronics control chain, where timing, isolation, and communication are important. GCC960C102 is identified by suppliers as a phase-interface, logic, or gate-control board, with references to ABB drive and power-electronics systems.

For TCO planning, keeping one tested spare can make sense when a cabinet supports a high-value production process. One published source identifies a 24 VDC nominal input and fiber-optic communication, while also describing FPGA-based timing control; these details should be treated as application-specific until confirmed against the ABB documentation for the exact hardware revision. The key procurement point is simple: match the complete part number, board revision, installed drive platform, and optical interface before approving the spare.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

Part-number suffixes matter. GCC960C102 is associated with more than one ABB part-number reference in supplier documentation. Confirm the exact identifier printed on the installed board before ordering.

Fiber-optic connections: Inspect every optical connector before commissioning. One source specifically warns that dirty or damaged optical fibers can cause communication problems in the power-semiconductor control path.

24 VDC supply: Do not assume the cabinet supply is correct. Verify the actual input requirement against the applicable ABB documentation before energizing.

Configuration records: Photograph connector positions, optical-fiber routing, DIP switches, jumpers, and cabinet location before removal.

ESD: Use a grounded antistatic wrist strap and ESD-safe work surface. Handle the PCB by its edges.

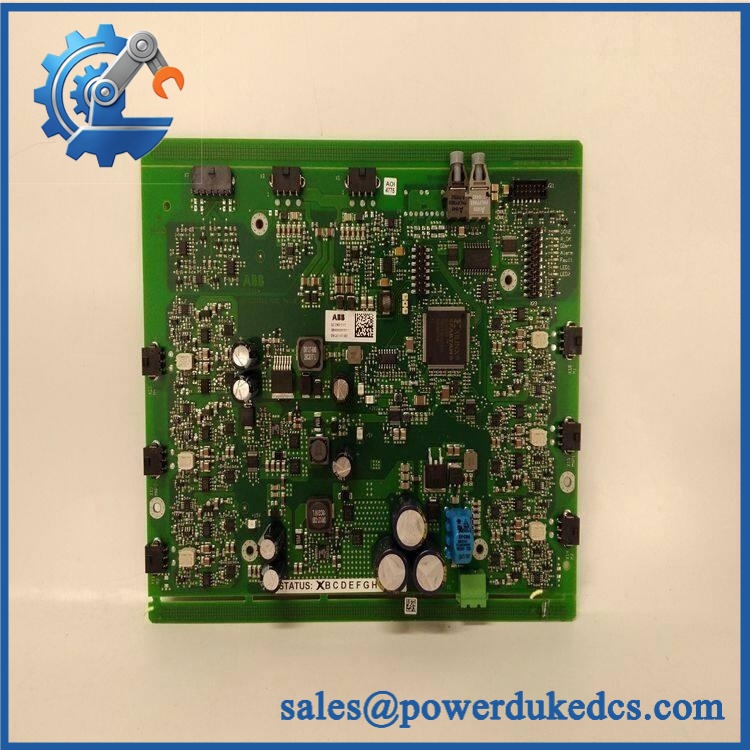

ABB GCC960C102

Module 5: Quality Assurance & Testing SOP

1. Incoming Inspection

• Verify ABB identification.
• Confirm GCC960C102 marking.
• Confirm 3BHE033067E0102.
• Record any related board or revision number.
• Inspect PCB and connectors.
• Check optical interfaces for contamination or damage.
• Look for corrosion, burn marks, cracks, or repair evidence.
• Photograph the complete nameplate.

2. OEM Authenticity Inspection

• Inspect ABB labels and markings.
• Compare PCB layout against an approved reference.
• Verify connector arrangement.
• Check board revision information.
• Inspect optical interface hardware.
• Review available traceability information.

3. Power-On Self-Test

Using the correct ABB drive or power-electronics test environment:

• Apply the manufacturer’s specified supply.
• Monitor startup behavior.
• Check available RUN / FAULT / LINK / diagnostic indicators.
• Confirm module initialization.
• Monitor supply behavior.
• Record diagnostic information.

The exact LED meanings must be taken from the applicable ABB manual for the installed revision.

4. Interface Testing

Where a compatible test setup is available:

• Verify controller recognition.
• Check fiber-optic communication.
• Inspect optical link status.
• Verify command and feedback signaling.
• Check diagnostic communication.
• Confirm stable interface operation.

A published product reference describes the board as a phase-interface / logic board and identifies fiber-optic communication for isolation.

5. Extended Run Test

Where the appropriate ABB test environment permits:

• Run the board continuously.
• Monitor communication stability.
• Check optical-link status.
• Monitor temperature.
• Record diagnostic events.
• Verify restart behavior where applicable.

The Test Report should contain the complete part number, serial number, board revision, test equipment, firmware information where applicable, test duration, and measured results.

6. Final QC & Packaging

• QC inspection completed and signed.
• ESD-safe bag sealed.
• Optical connectors protected with suitable caps.
• Shock protection added.
• QC label attached.
• Test documentation retained with the inventory record.

Test photographs or video can be supplied when available.

Module 6: Procurement-Driven FAQ

1. Is ABB GCC960C102 physically in stock, and can it ship immediately?

Physical inventory should be confirmed against the actual warehouse unit. For an urgent drive or power-conversion application, request the complete part number, revision, condition, test status, quantity, and dispatch cutoff before releasing the PO.

2. How do you verify a surplus GCC960C102?

Inspection should cover the ABB identification, PCB condition, connectors, optical interfaces, and board revision. Where the correct ABB test environment is available, power-up and communication testing should be completed before shipment.

3. What warranty should I request for this legacy board?

Request written warranty terms before purchase. They should specify the warranty period, failure evidence, return procedure, and replacement or refund conditions.

4. Are 3BHE033067E0102 and 3BHE033067R0102 interchangeable?

Do not assume they are interchangeable. Current supplier references associate both numbers with GCC960C102, but the exact relationship between the E0102 and R0102 references should be confirmed against ABB documentation or the installed equipment BOM before substitution.

5. What should engineers check before installing the replacement?

Record the existing board identification, revision, optical-fiber routing, connector positions, configuration settings, and system firmware. Clean and inspect the optical interfaces before reconnection. For this type of board, a correct electrical connection alone does not prove that the communication path is ready for service.
