Description
- BENTLY 330104-00-06-10-02-00 | Genuine Machinery Spare
2. Unboxing & Physical Snapshot
- Brand & Model: Bently Nevada 330104-00-06-10-02-00
- Product Type: 3300 XL 8 mm Proximity Probe for rotating machinery vibration and shaft displacement monitoring.
- Physical Dimensions (Approximate W × H × D):
- Probe diameter: 8 mm
- Overall case length: 60 mm
- Total system cable length: 1.0 meter (3.3 ft)
- Thread specification: M10 × 1
- Estimated Shipping Weight: Approximately 0.3–0.5 kg for the probe assembly; packaged shipping weight may increase with protective tubing and documentation.
- What’s in the Box:
- Bently Nevada 330104-00-06-10-02-00 proximity probe
- Integrated 1-meter standard cable
- Miniature coaxial ClickLoc connector
- Factory identification label
- Protective packaging
- OEM documentation when supplied
3. Product Introduction
Structure C — Compliance Hook
The Bently Nevada 330104-00-06-10-02-00 is a precision machinery protection sensor where correct part identity directly affects vibration monitoring accuracy. A mismatched probe length, thread configuration, or cable arrangement can change the electrical characteristics of the measurement loop and create unreliable shaft displacement readings (which is unacceptable on turbine, compressor, and generator protection systems).
This 3300 XL 8 mm proximity probe installs as part of a complete proximity transducer system consisting of the probe, extension cable arrangement where applicable, and Proximitor sensor. The probe uses eddy-current measurement principles to monitor shaft movement without physical contact. Verify probe gap, mounting thread, and cable routing before commissioning; incorrect installation practices can produce false vibration alarms.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-06-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensor Type | Eddy-current proximity probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm |
| Case Length | 60 mm |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Probe Material | Stainless steel housing |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Voltage | Approximately -24 VDC system supply |
| Output Sensitivity | Approximately -7.87 V/mm (-200 mV/mil) |
| Linear Range | Approximately 2 mm (80 mils) |
| Frequency Response | Up to approximately 10 kHz |
| Power Consumption | Low-power sensor loop device; supplied through Proximitor system |
| Heat Dissipation | Minimal at probe level |

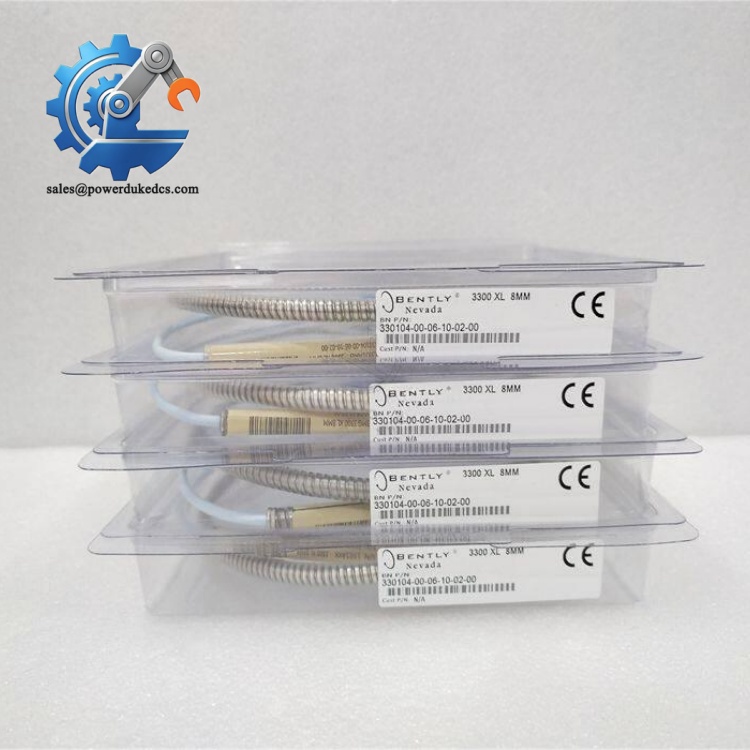

BENTLY 330104-00-06-10-02-00
Technical values are based on 3300 XL 8 mm proximity probe family documentation and supplier specifications. Confirm exact configuration against OEM records before installation.
5. ? Global Compliance & Industry Certifications
Expected compliance considerations for this machinery monitoring sensor include:
- CE Mark — applicable for qualified system configurations meeting EMC requirements.
- ATEX/IECEx Approvals — available for certain 3300 XL probe configurations when ordered with the correct agency approval option.
- UL/cUL Recognition — may apply depending on system configuration and installation requirements.
- RoHS Compliance — dependent on manufacturing revision.
- Marine approvals (DNV GL) — applicable only for specifically certified machinery monitoring packages.
ATEX/IECEx approval matters because rotating equipment in hazardous areas may require certified sensing components to prevent ignition risks associated with electrical equipment installed near combustible gases or vapors.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the 330104-00-06-10-02-00 sealed in its original protective packaging until installation. The probe tip, cable insulation, and ClickLoc connector are the critical preservation points.
Store in a dry warehouse below 60% relative humidity. Moisture exposure can degrade connector surfaces and promote corrosion on metallic components (especially in coastal or chemical processing environments).
Inspect the probe before field installation. Check the stainless-steel body, M10 thread surface, cable jacket, and connector locking mechanism. Do not install a probe with damaged cable insulation; small jacket defects can introduce noise into the vibration measurement circuit.
7. Physical Installation Prerequisites
- Install only with the correct Bently Nevada 3300 XL Proximitor system.
- Verify probe thread compatibility: M10 × 1 mounting interface.
- Confirm required probe gap setting according to the machinery monitoring application.
- Maintain proper cable routing away from high-voltage power conductors.
- Protect the ClickLoc connector from moisture and mechanical stress.
- Ensure the mounting surface provides stable mechanical reference to the bearing housing or machine structure.
- Ground the associated monitoring system according to plant instrumentation standards.
Do not rotate or force the probe cable during installation. Cable stress can affect long-term signal stability.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is normally used for this Bently Nevada proximity probe?
A: The final Harmonized System classification depends on the importing country’s customs interpretation. Industrial vibration sensors are commonly reviewed under electrical measuring or monitoring equipment categories. Confirm the final HS code with your customs broker before export documentation.
Q2. Does Country of Origin affect this spare sensor?
A: Yes. COO affects customs treatment, contract compliance, and asset traceability. Maintain the original label, serial records, supplier declaration, and inspection documentation with the spare inventory file.
Q3. Should this probe ship with insurance coverage?
A: Recommended. The probe body is mechanically durable, but connector damage, cable cuts, or thread deformation may not be obvious after transport impact. Use protective packaging and insure based on replacement value.
Q4. Does the 330104-00-06-10-02-00 include the latest firmware?
A: No firmware is loaded into the probe itself. The sensing element operates as part of the complete 3300 XL monitoring loop; configuration settings reside in the associated Proximitor and monitoring system hardware. Verify system compatibility before replacement.
