BENTLY 330106-05-30-50-02-00 | Genuine Machinery Spare

Description

1. BENTLY 330106-05-30-50-02-00 | Genuine Machinery Spare

Unboxing & Physical Snapshot

• Brand & Model: Bently Nevada 330106-05-30-50-02-00

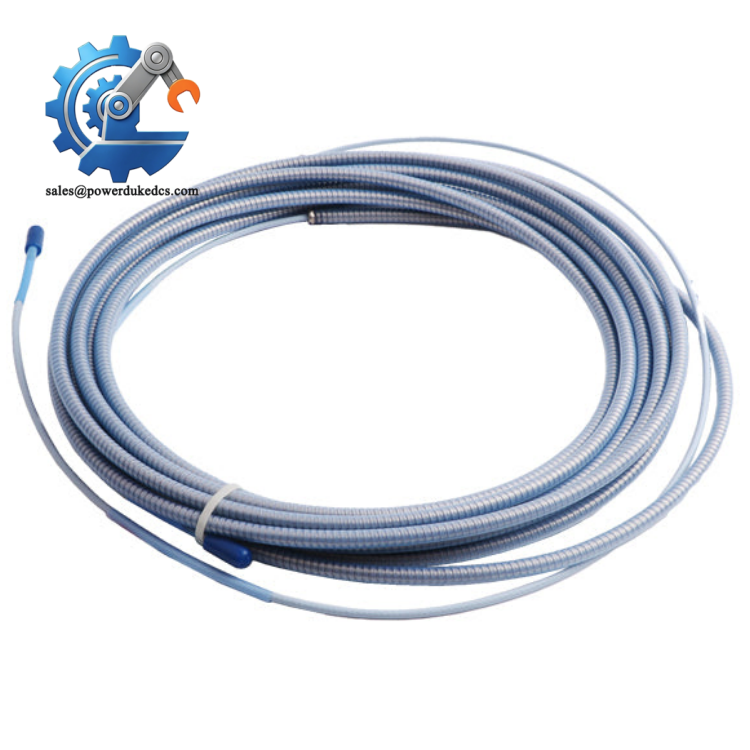

• Product Type: 3300 XL 8 mm Reverse Mount Proximity Probe with integrated cable assembly for rotating machinery vibration and shaft displacement monitoring.
• Physical Dimensions (Approximate W × H × D):
  • Probe diameter: 8 mm
  • Mounting configuration: Reverse Mount
  • Thread size: M10 × 1
  • Probe case length option: 30
  • Total system cable length option: 5.0 m (16.4 ft)
  • Connector: Miniature ClickLoc coaxial connector
• Estimated Shipping Weight: Approximately 1.0–1.6 kg including protective packaging and cable protection.
• What’s in the Box:
  • Bently Nevada 330106-05-30-50-02-00 proximity probe assembly
  • Integrated 5-meter cable
  • Miniature ClickLoc coaxial connector
  • Probe identification label
  • Protective shipping packaging
  • Factory documentation when supplied

Product Introduction

Structure C — Compliance Hook

The Bently Nevada 330106-05-30-50-02-00 is a controlled measurement component used in machinery protection loops where exact probe configuration is mandatory. The reverse-mount design, cable length, connector type, and electrical characteristics must match the installed monitoring system. A physically similar probe can still produce incorrect shaft displacement readings if the transducer chain is mismatched.

This 3300 XL 8 mm probe is designed for non-contact measurement of shaft vibration and position using eddy-current sensing technology. The assembly connects with a compatible Proximitor sensor to create a complete measurement chain for turbines, compressors, pumps, and other critical rotating equipment (—especially where API 670-style machinery protection practices are applied). Inspect the probe tip, cable jacket, ClickLoc connector, and mounting threads before installation.

Core Technical Specifications

BENTLY 330106-05-30-50-02-00

Specifications are based on the Bently Nevada 3300 XL 8 mm proximity transducer family and available configuration references. Verify the complete probe, cable, and Proximitor combination before replacement approval.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for this machinery monitoring sensor include:

• CE Mark — applicable for approved system installations meeting EMC requirements.
• ATEX/IECEx — available for selected Bently Nevada 3300 XL configurations when ordered with the required hazardous-area approval option.
• UL/cUL Recognition — may apply depending on system configuration and installation requirements.
• RoHS Compliance — dependent on manufacturing revision and production date.
• Marine approvals (DNV GL) — applicable only for qualified marine machinery monitoring systems.

ATEX/IECEx certification is significant because proximity probes may be installed near rotating equipment in hazardous locations. Properly approved sensing hardware helps maintain the electrical safety requirements necessary around combustible gases or vapors.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the 330106-05-30-50-02-00 sealed in the original anti-static (ESD) packaging until installation. Protect the probe tip and ClickLoc connector from contamination because connector damage is a common cause of field troubleshooting events.

Maintain warehouse humidity below 60% RH. Avoid storage near chemical areas, battery rooms, or outdoor staging zones where corrosive contaminants can attack connector surfaces and metallic threads.

Inspect before release from inventory. Check the stainless-steel probe body, M10 mounting thread, cable jacket, and connector locking mechanism. Do not install a probe with cable cuts or thread damage; these defects can compromise the vibration signal path.

Physical Installation Prerequisites

• Install only with a compatible Bently Nevada 3300 XL Proximitor system.
• Confirm the reverse-mount arrangement matches the machine mounting drawing.
• Verify total system length requirements before installation.
• Set probe gap according to OEM procedures and approved machine documentation.
• Route the cable away from high-voltage conductors and sources of electromagnetic interference.
• Protect the ClickLoc connector from moisture and mechanical strain.
• Ensure the mounting surface provides a stable reference point.

Do not bend the cable sharply near the probe exit. Maintain the manufacturer-recommended bend radius to protect the internal conductor structure.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the Bently Nevada 330106-05-30-50-02-00?

A: The final Harmonized System classification depends on the importing country and declared function. Machinery vibration monitoring probes are typically reviewed under electrical measuring or monitoring equipment categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect import documentation?

A: Yes. COO information can affect customs duty calculations, trade agreement eligibility, and customer audit records. Maintain the original label, supplier declaration, serial information, and incoming inspection report.

Q3. Should this proximity probe ship with insurance?

A: Recommended. The probe assembly is precision instrumentation. Damage to the cable, connector, or threaded body may not be visible after transport. Use ESD packaging, impact protection, and replacement-value insurance coverage.

Q4. Does the 330106-05-30-50-02-00 include firmware?

A: No. The probe itself does not contain user firmware. Signal processing occurs through the associated Proximitor sensor and machinery monitoring hardware. Confirm compatibility between the probe, cable length, and monitoring channel before commissioning.
