Bently Nevada 1900/65A 172323-01 | General Purpose Monitor

• Brand: Bently Nevada
• Full Model Number: 1900/65A 172323-01
• Lifecycle Status: Current / Supported 1900/65A Series
• Core Function: General-purpose machinery condition monitoring and protection
• Top 3 Technical Specs: 4 dynamic inputs + 4 temperature inputs; 6 programmable relay outputs; 4 × 4–20 mA recorder outputs
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

An unavailable Bently Nevada 1900/65A 172323-01 can delay restoration of auxiliary machinery monitoring even when the sensors and field wiring remain intact. The 172323-01 is the main 1900/65A General Purpose Equipment Monitor, intended for continuous condition monitoring of balance-of-plant and other rotating equipment. The unit supports four dynamic inputs and four temperature inputs, with compatibility across proximity, velocity, acceleration, RTD, and thermocouple measurement types depending on the installed configuration. It also provides six programmable relay outputs, four 4–20 mA recorder outputs, buffered transducer outputs, local display capability, and Modbus communication options.

For an operating 1900/65A installation, replacing the main monitor can carry a much lower TCO than migrating the complete machine-monitoring package to a different platform. Existing sensors, field wiring, cabinet hardware, alarm logic, and operator procedures can remain in service when the replacement configuration is correctly matched. That avoids unnecessary panel modifications, PLC/DCS integration work, commissioning labor, and operator retraining. —The important procurement distinction is that 172323-01 is the main monitor assembly, while the 167699-02 is the separate operator-interface display used with the 1900/65A. The complete installed configuration should therefore be checked before the PO is released.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: With a tested replacement already staged on-site, plan approximately 2–5 hours for controlled replacement, input verification, configuration review, alarm testing, and communications checkout. A newly sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Main monitor vs. display: 172323-01 is the main 1900/65A monitor. The 167699-02 is the separate operator-interface display. Do not quote one as though it were the complete system.
• Input configuration: The 1900/65A supports multiple sensor technologies. Verify whether each installed channel is used for proximity, velocity, acceleration, RTD, or thermocouple measurement before replacement.
• Power configuration: Published 1900/65A ordering information includes an 18–36 VDC power option and a separate AC-powered configuration. Match the installed power option before energization.
• Application configuration: Preserve channel scaling, alarm setpoints, relay assignments, recorder outputs, and communication settings before removing the failed monitor.

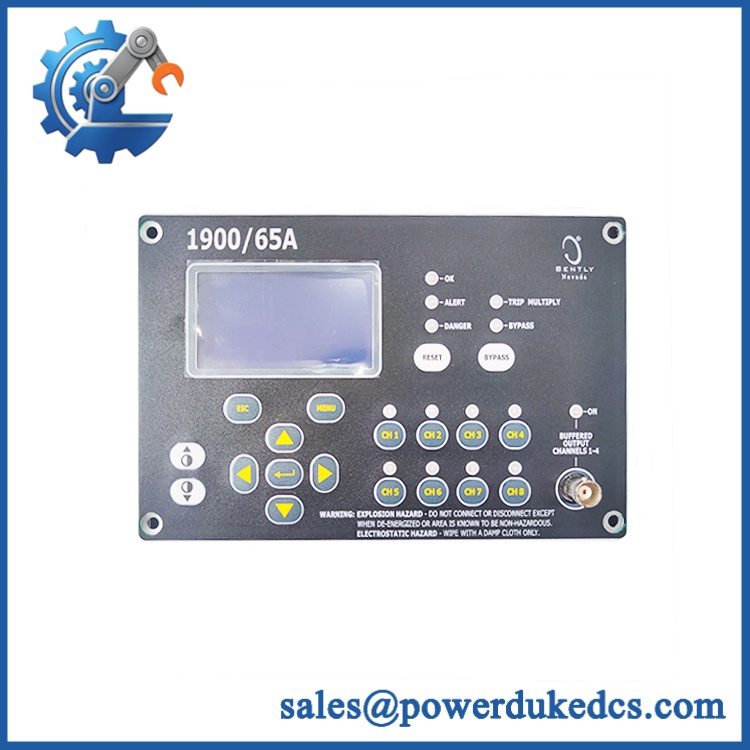

Bently Nevada 1900/65A 172323-01

Module 5: Quality Assurance & Testing SOP

The 172323-01 should be qualified as a complete general-purpose machinery monitor. A normal boot sequence does not establish measurement or protection performance.

• Part-number verification: Confirm 1900/65A, 172323-01, hardware revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, enclosure construction, connectors, front interface, terminal assemblies, and evidence of unauthorized rework.
• Physical condition inspection: Check the housing, card assembly, connectors, display interface, terminal areas, and PCB surfaces for corrosion, contamination, cracks, impact damage, or thermal discoloration.
• Configuration verification: Identify the installed power option, display arrangement, mounting configuration, input types, communication options, and relay configuration.
• Connector inspection: Examine all field and communication connectors for bent contacts, oxidation, contamination, damaged housings, or poor retention.
• Continuity testing: Verify applicable power, ground, signal, analog-output, and relay paths before energization.
• Power-on self-test (POST): Install the monitor in an approved 1900/65A test setup and verify startup behavior and normal health indication.
• Display/interface test: Where the 167699-02 display is fitted, verify correct initialization, display data, navigation, alarm acknowledgment, and operator controls.
• Dynamic input testing: Apply calibrated simulated proximity, velocity, or acceleration signals to each configured channel.
• Temperature input testing: Apply calibrated RTD and/or thermocouple simulation to applicable temperature channels.
• Signal-scaling verification: Compare displayed engineering values against calibrated input sources across multiple test points.
• Alarm testing: Simulate Alert and Danger conditions and verify the configured alarm response.
• Alarm-delay testing: Verify programmed delay values using controlled signal transitions.
• Relay-output testing: Exercise all applicable programmable relay outputs and verify contact-state transitions.
• Analog-output testing: Verify the configured 4–20 mA recorder outputs across representative operating values.
• Buffered-output testing: Where applicable, verify stable transducer signal transmission through the buffered outputs.
• Modbus communication test: Verify communication with the approved host system and confirm correct transfer of measurement, status, and event data.
• Event-list verification: Generate controlled alarm and status events and confirm correct event recording and time stamping.
• Channel-health testing: Simulate signal-loss or sensor-fault conditions and verify the expected OK/fault response.
• I/O load testing: Operate multiple input, relay, and analog-output channels simultaneously while monitoring power stability and thermal behavior.
• Extended observation: Maintain representative multi-channel signals and communication traffic to identify intermittent measurement, display, relay, or network faults.
• Final QC release: Record complete part number, hardware revision, power configuration, channel-test results, alarm results, relay results, communication results, photographs, condition grade, test date, and QC authorization.

The 1900/65A ordering structure defines multiple power, display, and mounting configurations. Procurement should therefore treat 172323-01 as the core monitor identifier and preserve the complete installed system configuration separately.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 1900/65A 172323-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 172323-01 part number and actual configuration before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup, and destination. Same-day shipment should only be confirmed after the specific monitor has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of a 172323-01?
Require exact part-number and revision verification, OEM visual inspection, PCB and connector inspection, controlled power-up, multi-channel signal simulation, relay testing, 4–20 mA output testing, communication checks, and documented QC results. Photographs of the actual monitor and identification markings should remain with the procurement record.

Q3. Are there firmware or configuration issues engineers should check before issuing the PO?
Yes. The main checks are the installed power option, sensor/input configuration, alarm setpoints, relay assignments, analog-output scaling, Modbus configuration, and applicable software revision. Preserve the existing configuration before removing the failed monitor.

Q4. Does 172323-01 include the 1900/65A display?
The 172323-01 is the main 1900/65A General Purpose Equipment Monitor. The 167699-02 is separately identified as the 1900/65A operator-interface display. Confirm whether the procurement requirement is for the monitor only or the complete monitor-and-display arrangement.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, multi-channel measurement performance, relay operation, 4–20 mA output conformity, communication performance, configuration compatibility, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual functional-test record and define whether commissioning-stage failures are covered.
