1. Bently Nevada 330130-040-01-00 | Genuine Proximity Extension

2. Unboxing & Physical Snapshot

• Brand & Model: Bently Nevada 330130-040-01-00
• Product Category: 3300 XL 8 mm Proximity Transducer Extension Cable
• Application: Extension cable for Bently Nevada 3300 XL proximity probe systems used in vibration, shaft position, and machinery monitoring applications. The 330130-040-01-00 configuration specifies a 4.0 meter cable length with armored cable construction.
• Approximate Physical Dimensions:
  • Cable length: 4.0 m (13.1 ft)
  • Cable diameter: approximately 5-8 mm depending on armor configuration
  • Shipping package footprint varies with cable coil radius.
• Estimated Shipping Weight: Approximately 1.25-1.5 lb (0.57-0.7 kg) depending on packaging method.
• What’s in the Box:
  • Bently Nevada 330130-040-01-00 extension cable
  • Factory identification label
  • Protective cable wrapping
  • ESD-safe packaging when supplied with electronic system components
  • Documentation when included with OEM shipment

3. Product Introduction

Rotating machinery monitoring depends on accurate signal transmission between the proximity probe and the monitoring rack. The Bently Nevada 330130-040-01-00 is a 3300 XL standard extension cable designed to connect compatible proximity probes with Proximitor Sensors in machinery protection applications. The armored construction provides additional mechanical protection in industrial environments where cable routing may be exposed to vibration, abrasion, or maintenance activity.

This cable is part of a calibrated proximity measurement system and should not be treated as a generic replacement cable. Cable length, electrical characteristics, and matching components affect measurement accuracy. Inspect the connector ends, armor condition, and cable jacket before installation (damage hidden under armor can remain unnoticed until commissioning).

4. Core Technical Specifications

Parameter	Value
Manufacturer	Bently Nevada
Model Number	330130-040-01-00
Product Family	3300 XL 8 mm Proximity Transducer System
Product Type	Standard Extension Cable
Cable Length	4.0 meters (13.1 ft)
Cable Construction	Armored cable option
Compatible Probe System	3300 XL 8 mm proximity probe systems
Connector Protection	Armored cable configuration
Extension Cable Capacitance	Approximately 69.9 pF/m typical
Operating Voltage Environment	Compatible with Bently Nevada proximity measurement circuits
Cable Temperature Range	Depends on selected cable configuration
Installation Location	Industrial machinery monitoring systems
Weight	Approximately 0.57 kg
Signal Type	Eddy-current proximity measurement signal
Heat Dissipation	Not applicable; passive signal cable

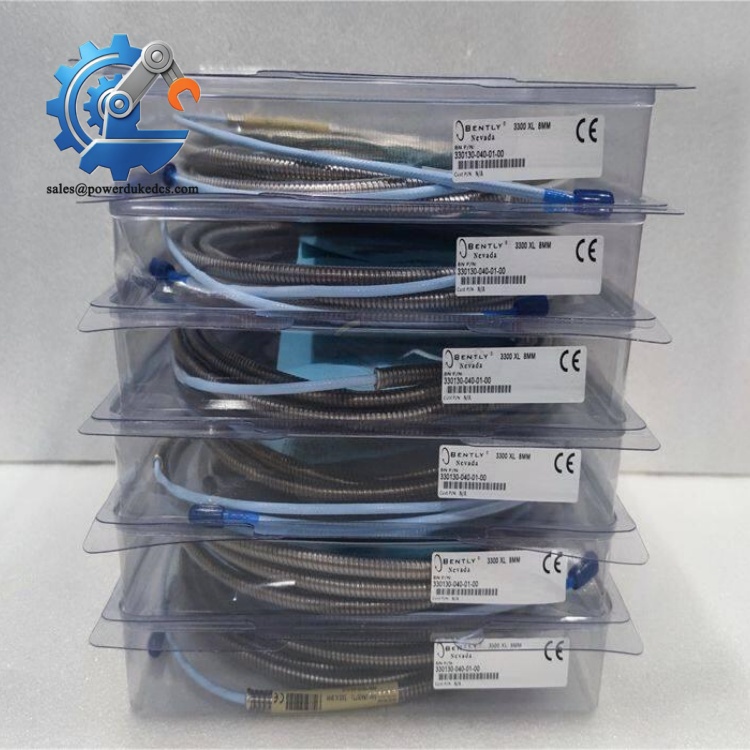

Bently Nevada 330130-040-01-00

5. Global Compliance & Industry Certifications

Expected regulatory considerations for this type of machinery monitoring cable assembly may include:

• CE Mark for applicable electromagnetic compatibility requirements when supplied as part of an approved system.
• UL/cUL evaluation where required by the complete machinery monitoring installation.
• ATEX/IECEx options when paired with certified proximity systems for hazardous-area applications.
• Marine approvals such as DNV GL where installed in certified offshore or vessel machinery monitoring systems.

For hazardous-area machinery, the correct certified cable and sensor combination helps maintain the approved protection concept and prevents improper substitutions that may invalidate system certification.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the cable in its original packaging with the cable ends protected from dust and moisture. Keep connector surfaces covered until installation.
• Maintain warehouse humidity below 60% RH. Moisture exposure can degrade metallic connector surfaces and cable shielding over long storage periods.
• Avoid tight cable bending during storage. Maintain the manufacturer-recommended bend radius because permanent deformation can affect shielding performance (a common issue with older spare inventory).

7. Physical Installation Prerequisites

• Confirm the cable length matches the engineered Bently Nevada 3300 XL proximity system configuration before installation.
• Route the armored cable away from high-current power conductors, variable-frequency drives, and sources of electrical interference.
• Maintain proper grounding practices according to the machinery monitoring system design.
• Protect cable entry points from sharp edges and excessive mechanical loading.
• Verify connector engagement at both the probe and Proximitor Sensor ends before machine startup.
• Provide sufficient cabinet clearance around connected monitoring hardware for inspection and maintenance access.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Bently Nevada 330130-040-01-00?
A: Cable assemblies and industrial sensor cables may be classified under different HS headings depending on construction and declared function. Some suppliers reference electrical cable classifications, while others classify based on machinery monitoring application. Confirm the final HS code with the importing customs authority.

Q: Does Country of Origin (COO) matter for this Bently Nevada spare cable?
A: Yes. COO information supports customs clearance, supplier qualification, and maintenance traceability. Retain packaging labels, purchase records, and receiving inspection documentation.

Q: Should shipping insurance be purchased for this cable assembly?
A: Yes. Although passive, the armored cable contains precision connectors and calibrated system components. Use protective coiling, rigid packaging, and insurance coverage based on replacement cost.

Q: Does the 330130-040-01-00 include firmware pre-loaded?
A: No. This is a passive extension cable assembly and does not contain firmware. System performance depends on compatibility with the installed 3300 XL probe and Proximitor Sensor combination.
