Description
- Bently Nevada 330190-040-00-00 | Original Machinery Asset
2. Unboxing & Physical Snapshot
- Brand & Model: Bently Nevada 330190-040-00-00
- Product Family: 3300 XL Extended Temperature Range (ETR) Extension Cable for 8 mm Proximity Transducer Systems.
- Cable Length: 040 option = 4.0 meters (13.1 feet).
- Approximate Physical Dimensions: Coiled cable assembly typically packaged in approximately 6 × 6 × 4 in protective packaging; actual cable length extends to 4 meters when deployed.
- Estimated Shipping Weight: Approximately 1.5 kg (3.3 lb) including packaging.
- Cable Construction: 75 Ω triaxial cable with temperature-rated insulation suitable for ETR applications.
- System Application: Connects a Bently Nevada 3300 XL proximity probe to the Proximitor Sensor assembly in machinery vibration monitoring systems.
- Connector Features: Precision miniature coaxial/triaxial connectors with protective termination features depending on option code.
- What’s in the Box:
- Bently Nevada 330190-040-00-00 extension cable assembly
- Protective packaging
- Connector protection components when supplied
- OEM documentation when included
- Factory packaging for new inventory condition
3. Product Introduction
High-temperature rotating equipment installations demand careful signal-path control. The Bently Nevada 330190-040-00-00 is an Extended Temperature Range (ETR) extension cable designed for 3300 XL 8 mm proximity monitoring systems where standard temperature limits may not be sufficient. The ETR cable option supports applications where the probe lead or extension cable operates in elevated temperature areas (such as turbine enclosures or hot machinery zones).
This cable is a precision measurement component, not a standard electrical lead. Installation quality directly affects vibration data accuracy. Maintain the correct bend radius, protect connectors from contamination, and verify compatibility with the installed probe and Proximitor Sensor. A damaged cable jacket or improperly seated connector can create intermittent vibration readings that appear to be machinery faults.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330190-040-00-00 |
| Product Type | 3300 XL Extended Temperature Range Extension Cable |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 4.0 m (13.1 ft) |
| Cable Type | 75 Ω triaxial cable |
| Cable Insulation | PFA-based ETR insulation |
| Connector Type | Miniature coaxial/triaxial connection |
| Cable Capacitance | Approximately 69.9 pF/m typical |
| Operating Temperature Capability | ETR cable systems rated up to approximately 260°C (500°F) depending on configuration |
| Weight | Approximately 1.5 kg shipping weight |
| Installation Environment | Industrial rotating equipment monitoring systems |
| Signal Type | Eddy-current proximity measurement signal |

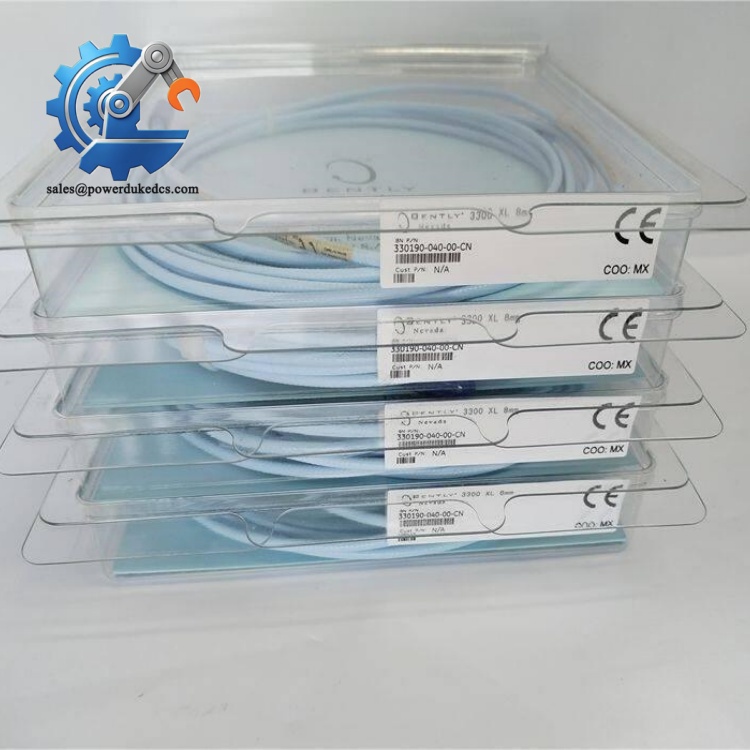

Bently Nevada 330190-040-00-00
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the Bently Nevada 330190-040-00-00 may include:
- CE Mark — applicable when installed as part of a compliant monitoring system.
- ATEX/IECEx — may apply when the complete proximity monitoring system is approved for hazardous-area service.
- UL/cUL Recognition — may apply to certain system-level configurations.
- RoHS Compliance — dependent on manufacturing revision and production date.
- Marine approvals such as DNV GL — possible only for specifically certified equipment packages.
ATEX or IECEx approval is important because rotating equipment in hazardous locations may contain explosive gas atmospheres. Certification confirms suitability only when the complete approved installation follows required wiring, enclosure, and installation rules.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the extension cable sealed in its original packaging until installation. Connector contamination is one of the most common causes of poor proximity signal quality.
- Store indoors with humidity below 60% RH. Moisture exposure can degrade connector surfaces and cable materials over extended periods.
- Avoid tight bending during storage. Maintain the factory coil diameter to prevent internal conductor stress (the cable geometry affects measurement stability).
- Protect both connector ends with their original caps or protective covers. Never allow metal particles or oil residue to enter the connector interface.
- Record the part number, cable length, serial information if available, and storage inspection date in the spare-parts database.
7. Physical Installation Prerequisites
- Install only with compatible Bently Nevada 3300 XL 8 mm proximity probes and Proximitor Sensors.
- Maintain proper separation from high-current power cables to reduce electrical interference.
- Avoid sharp bends, crushing forces, and cable routing near excessive heat sources.
- Support long cable runs mechanically to prevent connector strain.
- Maintain connector cleanliness before assembly. Use approved inspection methods before final connection.
- Verify grounding and shielding practices according to the installed monitoring system design.
- Confirm the cable routing allows future inspection without removing adjacent machinery components.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Bently Nevada 330190-040-00-00?
A: Cable assemblies for industrial monitoring systems may be classified under HS categories related to insulated electrical conductors or control-system components. Some suppliers classify similar assemblies under headings such as 8544, while final classification depends on the importing country’s customs interpretation. Confirm with a qualified customs broker before shipment.
Q: Does Country of Origin affect acceptance of this vibration monitoring spare?
A: Yes. Country of Origin (COO) documentation supports customs clearance, supplier traceability, and maintenance audit records. Preserve the original label, packaging information, and certificate documentation with the asset.
Q: Should shipping insurance be purchased for this cable assembly?
A: Recommended. Although lightweight, this is a precision signal component. Damage to connectors or internal cable structure may not be visible after transport. Insure based on replacement cost.
Q: Does the 330190-040-00-00 include firmware or calibration data?
A: No. This extension cable is a passive signal transmission component and does not contain firmware. Verify compatibility with the installed probe, Proximitor Sensor, and monitoring rack configuration before commissioning.
