Description
- B&R 4PP220.0571-45 | Original Automation Panel Spare
2. Unboxing & Physical Snapshot
- Model & Brand: B&R Industrial Automation 4PP220.0571-45
- Product Type: Power Panel PP220 operator interface with integrated controller, monochrome LCD touchscreen, Ethernet, RS232, USB, and aPCI expansion slot. Designed for machine control and HMI applications in industrial automation systems.
- Display Configuration:
- 5.7-inch QVGA monochrome LCD
- Resistive touchscreen
- 320 × 240 pixel resolution
- 8 grayscale levels
- Approximate Physical Dimensions (W × H × D):
- 212 × 156 × 76 mm
- Estimated Shipping Weight:
- Unit weight: approximately 1.7 kg
- Typical packaged shipping weight: 2.2–2.8 kg
- What’s in the Box:
- B&R Power Panel PP220 4PP220.0571-45
- Integrated LCD touchscreen assembly
- Battery-backed controller hardware
- Ethernet and RS232 interfaces
- Protective packaging
- ESD protection materials
- Terminal block supplied separately unless included by seller
3. Product Introduction
The B&R 4PP220.0571-45 is installed directly into a machine operator station or control enclosure as a combined HMI and controller platform. Its metal housing, front IP65 protection, and integrated control electronics allow it to operate as the local interface between operators, machine logic, and connected automation devices (—which is critical in production environments where panel replacement downtime affects machine availability).
This Power Panel requires careful asset identification before replacement. Verify the Automation Runtime version, CompactFlash contents, battery condition, and application backup before removing an existing unit. Check the CF card. Check the Ethernet configuration. A replacement panel with identical hardware may still require restoration of the original machine project.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | 4PP220.0571-45 |
| Product Family | Power Panel PP220 |
| Product Type | HMI Operator Panel with Integrated Controller |
| Display Type | 5.7-inch monochrome LCD |
| Display Resolution | QVGA 320 × 240 pixels |
| Touchscreen Type | Resistive analog touchscreen |
| Controller Processor | AMD Geode SC2200 |
| Processor Frequency | 266 MHz |
| L1 Cache | 16 kB |
| SDRAM Memory | 64 MB |
| SRAM | 256 kB battery-backed |
| Firmware Storage | 2 MB Flash |
| Real-Time Clock | Battery-backed |
| Battery Type | Renata 950 mAh lithium battery |
| Battery Service Life | Approximately 4 years |
| Ethernet Interface | 10/100 Mbps |
| Serial Interface | RS232 |
| USB Ports | 2 × USB 1.1 |
| Expansion Slot | 1 × aPCI |
| Power Supply | 24 VDC ±25% |
| Typical Power Consumption | 12 W |
| Maximum Power Consumption | 17 W |
| Cooling Method | Passive heatsink cooling |
| Front Protection Rating | IP65 / NEMA 250 Type 4X |
| Rear Protection Rating | IP20 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Weight | Approximately 1.7 kg |

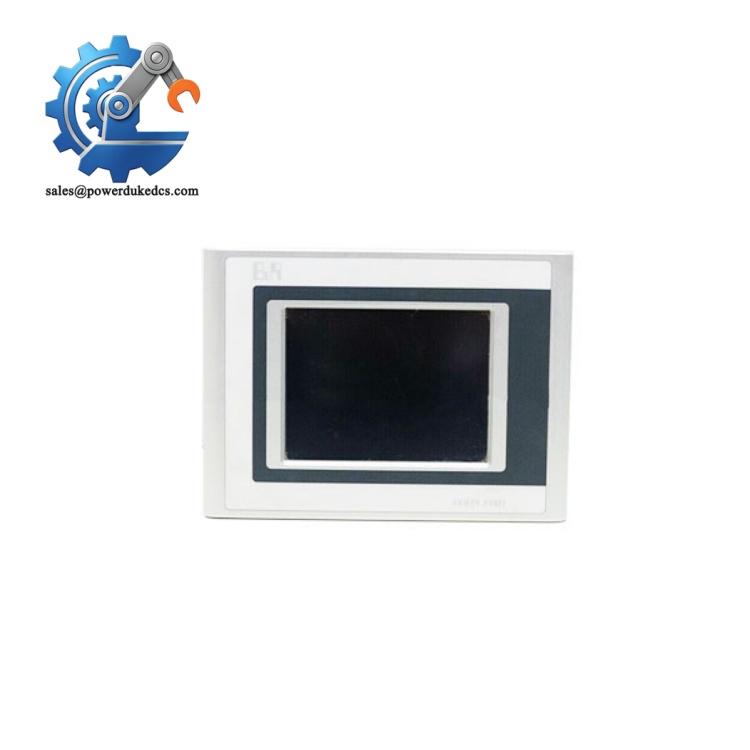

B&R 4PP220.0571-45
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals for the B&R 4PP220.0571-45 include:
- CE Mark
- Confirms compliance with applicable European EMC and safety requirements for industrial control equipment.
- UL/cUL Listed
- Listed as industrial control equipment under UL certification requirements.
- ATEX / IECEx
- Not normally a standalone hazardous-area HMI. Hazardous-area installation requires a certified enclosure and complete system approval.
- Marine Approvals (DNV GL)
- Applicable only for specific marine-certified automation systems.
Certification verification matters because operator panels are installed at the machine interface, where electrical safety, enclosure protection, and environmental ratings must match the installation location.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the 4PP220.0571-45 inside an ESD-safe package during storage. Protect the touchscreen surface, rear connectors, CF slot, and communication ports from dust and moisture.
Maintain storage humidity below 60% RH. Excess moisture can degrade connector contacts and affect the LCD assembly over long periods.
Check the battery date during warehouse inspection. The unit uses a replaceable lithium battery with an expected service life of approximately four years; replace aging batteries before deployment to avoid SRAM and RTC data loss (—a small maintenance task that prevents unexpected commissioning delays).
Store vertically or with adequate mechanical support to avoid pressure on the front display surface.
7. Physical Installation Prerequisites
- Install the PP220 in a suitable machine control panel cutout.
- Verify enclosure depth supports the 76 mm panel depth.
- Ensure front sealing gasket remains correctly seated to maintain IP65 protection.
- Connect 24 VDC power with correct polarity.
- Connect protective earth according to cabinet standards.
- Maintain clearance around rear ventilation and connector areas.
- Leave approximately 50 mm clearance around heat-dissipation areas where enclosure design permits.
- Install CompactFlash media only after confirming application compatibility.
- Verify Ethernet address and controller configuration before commissioning.
- Perform touchscreen calibration after installation if required.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the B&R 4PP220.0571-45?
A: Operator panels and industrial HMI devices are commonly classified under HS 8537 categories for electrical control equipment equipped with switching/control functions. The final classification depends on customs interpretation and declared function.
Q: Why does Country of Origin (COO) matter for this B&R Power Panel?
A: COO affects customs clearance, duty evaluation, and traceability records. The commercial invoice, packing list, and certificate of origin should contain matching manufacturer and product information.
Q: Is shipping insurance recommended for the 4PP220.0571-45?
A: Recommended. The touchscreen glass, LCD assembly, and internal controller boards are sensitive to impact damage. External inspection may not reveal internal failures caused during transportation.
Q: Does the 4PP220.0571-45 include the latest firmware pre-loaded?
A: The unit includes factory firmware storage, but the machine application depends on the Automation Runtime version, project files, and CompactFlash contents. Verify the existing application backup before replacement.
