GE C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X | Breaker Relay

Description

• Brand: GE Multilin
• Full Model Number: C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X
• System/Series Family: Multilin Universal Relay C60 Breaker Protection System
• One-Sentence Core Function: Integrated breaker protection, control, monitoring, metering, automation, and communications relay for substation and industrial applications
• Top 3 Hardcore Specs: IEC 61850 software option; 4 CT + 4 VT inputs with enhanced diagnostics; 16 contact inputs in each H6D/M6D module plus 8 Form-C outputs in each P6C/U6C module
• Inter-Relay Communications: 1300 nm multimode fiber, LED, 2 channels
• Firmware: 086X / Version 8.6x
• Control Power: 125/250 VAC/DC
• Mounting: Horizontal 19-inch rack
• User Interface: Enhanced English front panel with user-programmable pushbuttons
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

Breaker protection faults are rarely limited to the breaker itself. A relay replacement must restore CT/VT measurement, trip and close logic, synchronism functions, event recording, and station communications without changing the protection scheme. The GE Multilin C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X is a highly configured C60 breaker protection system. GE’s ordering architecture identifies the V CPU as the RS485-plus-three-Ethernet-port configuration, 03 as the IEC 61850 software option, H as horizontal mounting, L as the enhanced English front panel with programmable pushbuttons, and the second H as the 125/250 VAC/DC power supply.

The hardware configuration is equally specific. F8L corresponds to the standard 4CT/4VT module with enhanced diagnostics; H6D and M6D provide 16 contact inputs each; P6C and U6C provide 8 Form-C outputs each; and W6C specifies two-channel 1300 nm multimode LED inter-relay communications. The final 086X suffix identifies firmware version 8.6x in the cited ordering references. The resulting relay provides a substantial I/O footprint while retaining C60 functions such as breaker failure, autoreclose, synchronism check, overcurrent/overvoltage protection, metering, event recording, and FlexLogic control. GE documents up to 1,024 FlexLogic lines, 1,024 time-stamped events, and oscillography with up to 128 digital and 56 analog channels.

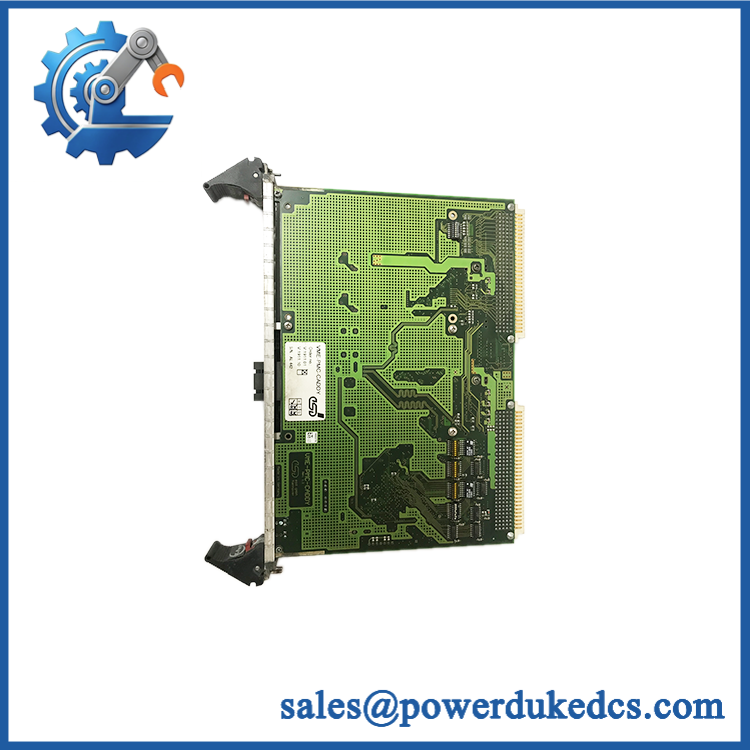

GE C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Multilin C60 Breaker Protection System
• Logic rewrite: Normally not required for a true like-for-like relay replacement when the existing settings file, FlexLogic, hardware configuration, and protection philosophy are preserved.
• Firmware update: Configuration dependent. The 086X suffix identifies the 8.6x firmware family; verify firmware compatibility before downloading or upgrading.
• Drop-in status: Potentially direct only when the complete hardware order code, CT/VT module, I/O modules, communication hardware, front panel, power supply, and firmware environment match.
• CPU / Communications: V configuration provides RS485 plus three Ethernet interfaces.
• Protection measurement: F8L provides standard 4CT/4VT with enhanced diagnostics.
• Digital I/O: H6D and M6D each provide 16 contact inputs; P6C and U6C each provide 8 Form-C outputs.
• Inter-relay communications: W6C is the 1300 nm multimode LED two-channel configuration.

⚠️ Field Traps (Watch Out)

• CT/VT configuration mismatch: The F8L module is part of the protection measurement chain. Do not substitute another C60 CT/VT module simply because the relay chassis is identical.
• I/O module order matters: GE’s C60 architecture is modular, and the stored order code is checked against installed hardware. GE documentation specifically reports an INCOMPATIBLE H/W condition when installed modules do not match the stored order code.
• Inter-relay fiber mismatch: W6C uses 1300 nm multimode LED, two channels. Do not substitute a single-mode or different-wavelength communications option without confirming the protection scheme.
• Trip-output verification: P6C/U6C Form-C outputs may be assigned to breaker trip, close, lockout, alarm, or control logic. Verify every output assignment from the existing settings and wiring drawings before commissioning.
• Control-power selection: The H supply option is intended for 125/250 VAC/DC. Verify the station battery/control supply before energizing.
• Firmware/settings dependency: A replacement relay can pass its internal diagnostics while still containing the wrong FlexLogic, CT ratios, VT ratios, breaker timing, or communications parameters.

Module 5: Quality Assurance SOP

Before shipment, the GE C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X should undergo a complete protection-relay QA sequence:

1. OEM anti-counterfeit visual inspection — verify GE Multilin markings, complete C60 order code, front-panel configuration, module labels, communication ports, terminal arrangement, and chassis identification.
2. Order-code reconciliation — independently verify V / 03 / HLH / F8L / H6D / M6D / P6C / U6C / W6C / 086X against the physical relay and configuration record.
3. Mechanical inspection — inspect the enclosure, terminal blocks, rear connectors, display, pushbuttons, mounting hardware, and fiber ports for damage or contamination.
4. Control-power verification — confirm the 125/250 VAC/DC supply configuration before controlled energization.
5. Power-on self-test (POST) — verify startup diagnostics, module recognition, display operation, status LEDs, and internal health checks.
6. CT/VT injection test — use a calibrated relay test set to verify representative current and voltage channels and confirm correct magnitude, phase, and scaling.
7. Digital-input verification — test representative contact inputs on both H6D and M6D modules and confirm correct state recognition.
8. Digital-output verification — exercise representative P6C and U6C Form-C outputs and measure contact-state transitions with calibrated equipment.
9. Protection-function test — validate representative phase, ground, neutral, breaker-failure, over/undervoltage, synchronism-check, and autoreclose elements against the configured settings.
10. FlexLogic verification — execute controlled input/output logic scenarios and confirm expected relay operands and output assignments.
11. IEC 61850 communication handshake — verify station-bus communication and representative data exchange in a controlled test network.
12. Inter-relay fiber verification — test both W6C channels using appropriate 1300 nm multimode equipment and confirm link status and communication integrity.
13. Event and disturbance recording test — trigger controlled events and verify SOE and waveform-recording behavior.
14. Final QC record — document the complete order code, firmware version, settings file, CT/VT injection values, I/O results, communications tests, photographs, and packaging condition.

For a C60 protection relay, a successful boot is not acceptance evidence by itself. CT/VT accuracy, protection timing, trip/close outputs, FlexLogic behavior, IEC 61850 communications, and inter-relay links need to be verified.

Module 6: CRO-Driven Buyer FAQ

1. Is GE C60-V03-HLH-F8L-H6D-M6D-P6C-U6C-W6C-086X obsolete, and how do I verify an authentic replacement?

The C60 remains documented by GE Vernova as a modular breaker protection and control platform, and GE continues to publish current C60 product documentation and manuals. Because the unit is highly configured, authenticity and interchangeability should be checked using the complete order code, not simply the “C60” family number.

2. Can I hot-swap this C60 relay?

Do not assume hot-swap capability. A C60 interfaces directly with CTs, VTs, breaker trip/close circuits, station communications, and control power. Follow the applicable GE maintenance procedure, isolate the relay control supply, and secure CT circuits before withdrawing or inserting the relay.

3. Will replacing the C60 require rewriting the protection logic?

Normally not for an exact configuration replacement when the original settings and FlexLogic are preserved. However, GE’s C60 performs an equipment/order-code compatibility check, and a mismatch between installed modules and the stored configuration can generate an INCOMPATIBLE H/W condition.

4. What does the full C60 order code specify?

The supplied code identifies a V CPU, IEC 61850 software option 03, horizontal mounting with the specified front-panel and power configuration, F8L 4CT/4VT measurement, two 16-input modules, two 8-output Form-C modules, W6C two-channel 1300 nm multimode inter-relay communications, and 8.6x firmware. GE’s current ordering documentation confirms the corresponding option structure and module descriptions.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover complete C60 order-code verification, CT/VT configuration, I/O module matching, firmware/settings review, IEC 61850 testing, inter-relay fiber verification, and documented secondary-injection results. Protection coordination, breaker trip-circuit authorization, and live substation commissioning remain the responsibility of qualified protection personnel.
