Description
- Brand: GE
- Full Model Number: IS200AEADH4A 109W3660P001
- System/Series Family: GE Mark VI / turbine control electronics
- One-Sentence Core Function: AEAD power-converter card used within GE turbine control and power-conversion architectures
- Top 3 Hardcore Specs: 24 VDC power-converter application; IS200 AEAD board family; H4A functional revision
- Stock Status: New surplus / fully tested refurbished, subject to exact board condition and revision
The IS200AEADH4A with manufacturer part number 109W3660P001 is identified in available procurement records as an AEAD card / power-converter module associated with GE turbine equipment. One industry record specifically describes 109W3660P001 as a 24 VDC power-conversion module for a wind-turbine transformer, while other current listings classify the same hardware within GE Mark VI/Mark VIe turbine-control inventory.
Module 3: Commercial-Technical Deep Dive
A replacement search for the IS200AEADH4A needs more care than a generic “analog input module” lookup suggests. Available listings disagree on the functional description: some label it an analog I/O or analog input board, while procurement data specifically identifies 109W3660P001 as an AEAD CARD, POWER CONVERTER with a 24 VDC application. For this reason, the safest engineering identification is the exact PCB part number and board revision rather than relying on a reseller’s generic product title. The board is part of GE turbine-control electronics, where an incorrectly identified replacement can create a commissioning failure even when the PCB dimensions appear similar.
The most defensible electrical figure available from the current references is the 24 VDC power-conversion application. Another product listing reports +5 VDC ±5%, 1.2 A maximum, as a board-level supply requirement, but this conflicts with other published descriptions and should not be promoted as a universal field specification without the GE drawing for the exact revision. That distinction has practical value: during troubleshooting, measuring only the cabinet’s incoming 24 VDC supply may not confirm that the board’s internal regulated rails are healthy. Use the installed GE wiring and board documentation as the controlling reference before applying test voltage.

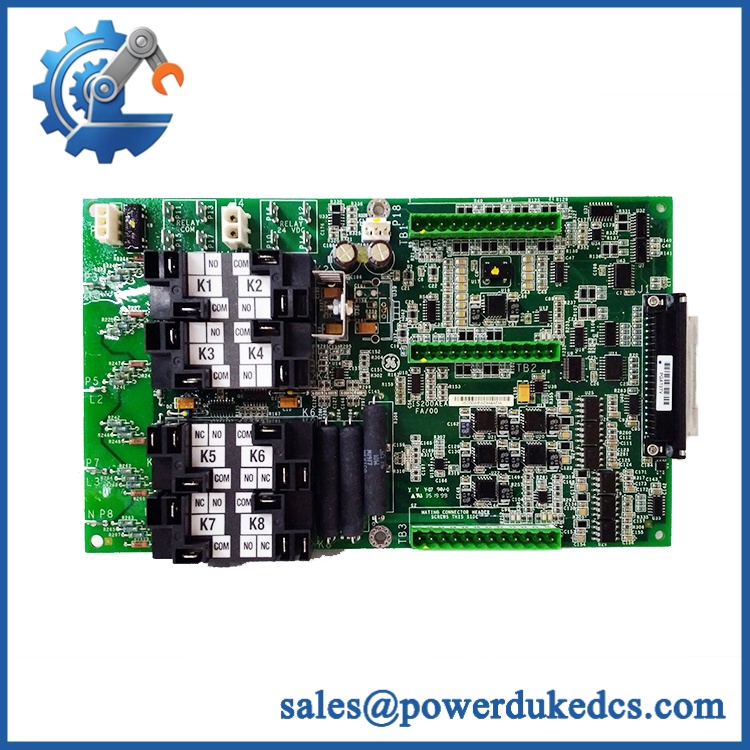

GE IS200AEADH4A 109W3660P001
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Replacement type: GE AEAD power-converter / turbine-control PCB assembly
- Base Model: IS200AEADH4A
- Manufacturer Part Number: 109W3660P001
- Functional Revision: H4A
- Firmware flash: Not normally applicable to the PCB as a standalone replacement, but system configuration and controller compatibility must be verified.
- Logic rewrite: Not normally required for a same-part replacement.
- Drop-in status: Potentially direct when the original board carries the same IS200AEADH4A / 109W3660P001 identification and revision.
- System verification: Confirm the exact Mark VI or related turbine-control architecture before installation.
⚠️ Field Traps (Watch Out)
1. Do not purchase this part based only on the phrase “analog input module.”
Current listings use inconsistent descriptions for IS200AEADH4A. One describes it as an analog input module, another calls it an input terminal board, while procurement data identifies 109W3660P001 as an AEAD power-conversion card. Match the physical label and GE documentation to the failed board.
2. Confirm the internal power architecture before energizing.
A procurement record identifies the application as 24 VDC, while another technical listing provides a +5 VDC ±5% / 1.2 A maximum board-level supply figure. These should not be treated as contradictory field-wiring instructions; they may describe different levels of the power architecture. Verify the actual input and regulated rails from the applicable GE drawing.
3. Record jumper, connector, and revision information before removal.
The exact board revision matters on legacy GE control hardware. Photograph every accessible connector position and board label before disconnecting the original assembly.
4. Protect the PCB against ESD.
Use a grounded wrist strap, conductive work surface, and ESD-safe packaging. Connector pins and exposed PCB circuitry should not be handled directly.
Module 5: Quality Assurance SOP
Each GE 109W3660P001 unit should pass a documented pre-shipment inspection sequence:
- OEM anti-counterfeit visual inspection: Verify GE identification, , 109W3660P001, board revision, silkscreen markings, connector geometry, and PCB manufacturing quality.
- Part-number verification: Match the complete board number against the purchase order and, where available, the installed turbine-control BOM.
- Revision inspection: Record the H4A functional revision and all visible secondary identification codes.
- Mechanical inspection: Check the PCB for cracked components, bent connectors, corrosion, contamination, damaged mounting points, overheated areas, and evidence of unauthorized rework.
- Power-path inspection: Check accessible power-entry circuitry for damaged terminals, discolored components, abnormal solder joints, and signs of electrical overstress.
- Power-on self-test (POST): Test only in an approved GE-compatible fixture. Verify normal initialization and expected board/system diagnostic behavior; do not use an improvised power source.
- Communication handshake verification: Where the test rack supports the complete Mark VI architecture, confirm normal controller-to-board communication and absence of persistent diagnostic faults.
- Functional verification: Verify applicable power-conversion and board-level functions against the approved GE test procedure rather than assuming an analog-channel test is appropriate.
- Final QC: Photograph the identification label, record the inspection/test results, use ESD-safe packaging, protect all connectors, and retain the traceability record with the shipment.
Module 6: CRO-Driven Buyer FAQ
1. What exactly is GE 109W3660P001?
The safest identification is , an AEAD board associated with GE turbine-control and power-conversion hardware. Current online descriptions are inconsistent, so the complete physical part number and board revision should be used for procurement.
2. Is an analog input board?
Do not rely on that description alone. Some listings classify it as an analog input or analog I/O module, but procurement data identifies 109W3660P001 as an AEAD card, power converter. For a replacement order, the exact GE part number and installed-board label should take priority over generic marketplace descriptions.
3. Can the be hot-swapped?
Do not assume hot-swap capability from the model number. Replacement should follow the applicable GE turbine-control maintenance procedure, including cabinet isolation and verification of the actual energized circuits before removing the board.
4. What power specification should be used?
One procurement record identifies the part as a 24 VDC power-conversion module, while another technical listing reports +5 VDC ±5% at 1.2 A maximum at the board level. These figures should not be combined into a single field specification. Confirm the exact input and regulated supply requirements from the GE drawing for the installed revision.
5. What warranty and technical support are provided?
Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover part-number verification, revision identification, inspection/test documentation, compatibility review, and replacement guidance within the documented GE turbine-control architecture. Site wiring changes, cabinet commissioning, and energized troubleshooting remain the responsibility of qualified personnel.
