Emerson 1C31232G02 | Ovation Compact Digital Input Module

• Brand: Emerson
• Full Model Number: 1C31232G02
• System/Series Family: Ovation DCS Compact Digital Input
• Core Function: 16-channel differential digital input interface for 24/48 VAC/VDC field signals
• Top 3 Hardcore Specs: 16 channels; 24/48 VAC/VDC differential inputs; optional 16-point individual fusing with 5X00034G01 Personality Module
• Electrical Characteristics: Main power 1.5 W/VA at 24 V; auxiliary power 0.92 W/VA at 24 V
• Stock Status: New Surplus — exact physical condition and current stock subject to verification

Technical Product Introduction

A failed discrete-input point can create a misleading control-system problem: the controller may remain online while breaker status, valve position, motor feedback, or permissive signals disappear at the I/O level. The Emerson 1C31232G02 is the Ovation Compact Digital Input electronic module for 16 differential inputs, designed for 24/48 VAC/VDC field signals. Emerson’s Ovation I/O documentation also identifies support for an individually fused configuration when paired with the 5X00034G01 Personality Module.

From a maintenance standpoint, the differential architecture matters more than the module’s physical appearance. The documented 16-point configuration provides isolated differential input handling for the specified voltage range, while the recorded power requirement is approximately 1.5 W/VA main power at 24 V and 0.92 W/VA auxiliary power at 24 V. The same hardware family is distinct from 1C31232G01 single-ended input hardware and 1C31232G03 125 VAC/VDC differential hardware, so substitution by appearance alone is a poor practice.

Application Scenarios & Field Realities

• At a generating-station switchyard, differential digital inputs are useful for discrete field indications such as breaker auxiliary contacts and equipment status signals. The 1C31232G02 is specified for 24/48 VAC/VDC differential applications, making the actual field voltage an essential pre-order check.
• When motor or actuator feedback wiring shares a cabinet with electrically noisy equipment, the differential input arrangement gives the installation a different signal architecture from common-return single-ended modules. Cable routing and grounding still matter; changing only the electronic module does not correct a poor field wiring installation.
• For applications requiring individual input protection, the 1C31232G02 can be paired with the 5X00034G01 fused Personality Module, providing a 16-point individually fused arrangement with a common supply. Without that requirement, the documented 1C31238H01 cavity insert can occupy the Personality Module position.
• During replacement of an older Ovation input card, compare the installed module number before isolating the rack. A 1C31232G02 is not simply interchangeable with 1C31232G01 or G03 because the three variants use different input configurations and voltage ranges.

Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Voltage-range trap: The 1C31232G02 is documented for 24/48 VAC/VDC differential inputs, while 1C31232G03 is the 125 VAC/VDC differential version. Installing the wrong electronic module can produce an apparent wiring or logic fault even though the card physically fits the same general subsystem.

Personality-module trap: The individually fused arrangement requires the 5X00034G01 Personality Module. Where individual fusing is not required, the documentation specifies the 1C31238H01 cavity insert instead. Do not transfer the existing wiring assumption to a replacement base without checking which configuration is installed.

Field note: Isolate the relevant field circuits before disturbing the terminal wiring. Differential inputs use paired signal conductors, so swapping one conductor or referencing it incorrectly can create a persistent false state.

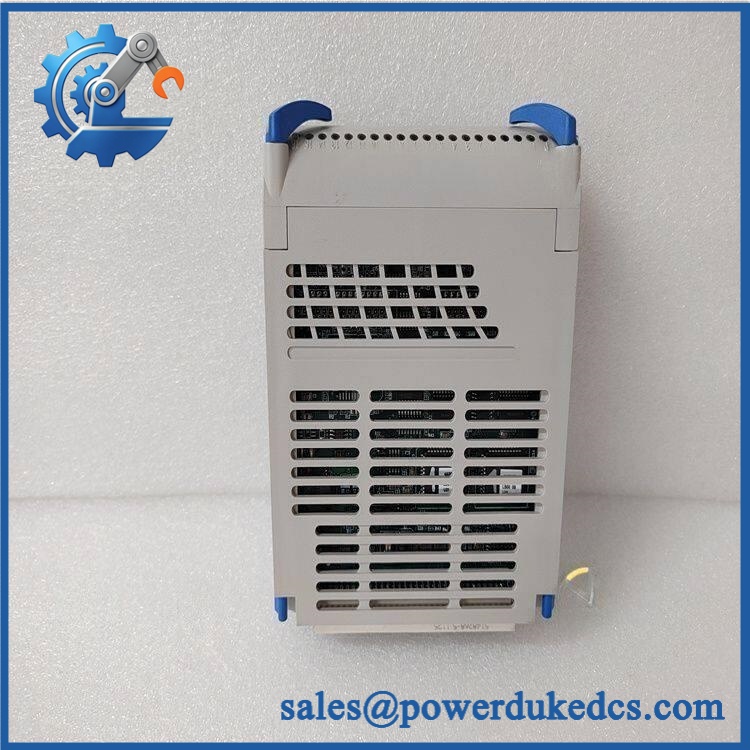

Emerson 1C31232G02

Quality Assurance SOP

The 1C31232G02 should be released from surplus inventory only after its part identity, mechanical condition, and input behavior have been checked.

• OEM anti-counterfeit visual inspection: Verify Emerson/Ovation markings, complete 1C31232G02 identification, labels, PCB construction, connectors, component placement, and visible revision information.
• Mechanical inspection: Check the housing, connector interface, mounting features, terminal mating surfaces, and PCB for cracks, corrosion, contamination, or evidence of unauthorized repair.
• Configuration verification: Confirm that the module is the 24/48 VAC/VDC differential variant and is not a visually similar 1C31232G01 or 1C31232G03.
• Power-on self-test (POST): Install the module in an appropriate Ovation test environment and observe startup status indications for abnormal fault behavior.
• Channel verification: Apply controlled 24 V and, where the test setup permits, representative 48 V AC/DC differential signals to the input channels and verify correct state detection.
• Communication handshake verification: Confirm that the module initializes correctly with the Ovation I/O subsystem and that input-state data reaches the controller interface.
• Fused-configuration check: Where 5X00034G01 is supplied as part of the assembly, verify correct mechanical mating and continuity through the intended individually fused arrangement.
• Thermal observation: Run the module under representative operating conditions and watch for abnormal heating, intermittent channel behavior, or repeated initialization.
• Final traceability: Record the exact part number, serial information where available, inspection results, test date, photographs, and packaging condition.

The key procurement distinction is simple: 1C31232G02 = 16-channel Compact Digital Input, 24/48 VAC/VDC differential. Emerson’s documentation separately identifies the single-ended 1C31232G01 and the 125 VAC/VDC differential 1C31232G03, so the complete part number should be matched before shipment.
