- EMERSON A6210 | API 670 Machinery Protection Asset
2. Unboxing & Physical Snapshot
- Brand & Model: Emerson EPRO A6210
- Product Type: Dual-channel Thrust Position, Differential Expansion, and Rod Drop Monitor module for Emerson AMS 6500 Machinery Health Monitor systems.
- Physical Dimensions (Approximate W × H × D):
- Width: 30 mm (1.18 in.)
- Height: 128.4 mm (5.06 in.)
- Length: 160 mm (6.30 in.)
- DIN 41494 / Eurocard format, 3U plug-in module.
- Estimated Shipping Weight: Approximately 0.45 kg (0.99 lb) including standard packing.
- What’s in the Box:

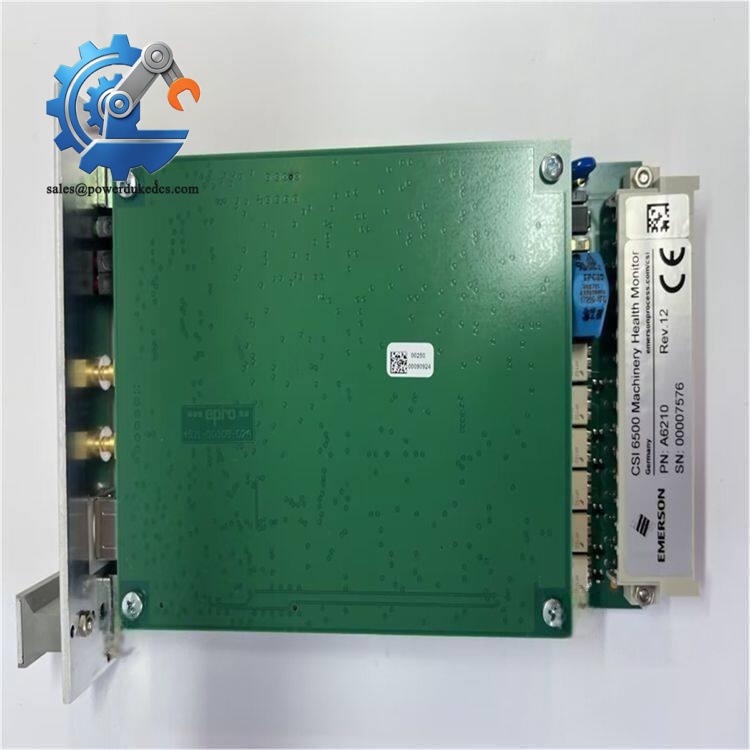

- Emerson EPRO A6210 protection monitoring module

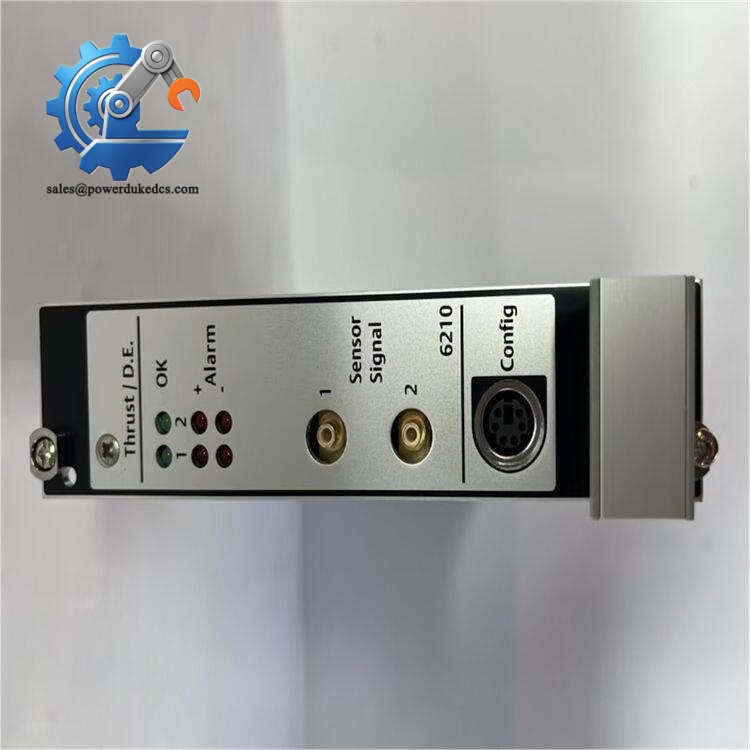

- Front panel assembly with status LEDs
- Module handle and identification plate
- Rear connector interface
- ESD protective packaging
- OEM documentation when supplied
3. Product Introduction
Structure C — Compliance Hook
The Emerson A6210 is a machinery protection module where configuration accuracy directly affects turbine and compressor safeguarding. Thrust position, differential expansion, and rod position measurements are protection functions that require the correct monitor hardware, sensor type, and approved configuration settings. A replacement card with an incorrect revision can create documentation gaps during reliability audits or machinery protection reviews.
Installed inside the AMS 6500 Machinery Health Monitor chassis, the A6210 provides two independent measurement channels for axial position monitoring applications. The module interfaces with Emerson sensor inputs and supports protection functions such as alarm processing and buffered outputs (—critical when monitoring large rotating equipment where rotor-to-casing contact must be detected quickly). Inspect the front plate, connector pins, and module handle before installation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson / EPRO |
| Model Number | A6210 |
| Product Family | AMS 6500 Machinery Health Monitor |
| Module Type | Dual-channel Thrust Position, Differential Expansion, Rod Drop Monitor |
| Form Factor | 3U Eurocard plug-in module |
| Rack Space Requirement | 1 slot |
| Number of Inputs | 2 independent channels |
| Input Type | Eddy-current differential displacement sensors |
| Compatible Sensors | Emerson 6422, 6423, 6424, 6425 sensor families |
| Input Voltage Range | 0 to -22 VDC |
| Measuring Frequency Range | 0–8 Hz (10 Hz, -3 dB) |
| Sensor Supply Voltage | -26.7 VDC nominal |
| Sensor Supply Current | 20 mA nominal, 35 mA maximum |
| Buffered Outputs | Two proportional buffered outputs |
| Analog Outputs | Configuration dependent |
| Power Supply | 24 VDC nominal system supply |
| Power Consumption | Maximum 6 W |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -30°C to 85°C |
| Humidity Range | 5–95% RH, non-condensing |
| Module Weight | Approximately 320 g |
EMERSON A6210
Specifications are based on Emerson AMS 6500 A6210 documentation. Confirm the exact hardware revision and installed firmware before replacement approval.
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the Emerson A6210 include:
- CE Mark — applicable for EMC and electrical compliance within approved AMS 6500 system installations.
- IEC industrial EMC compliance — evaluated as part of the machinery monitoring system design.
- UL/cUL Recognition — may apply depending on the complete chassis certification.
- RoHS Compliance — dependent on production revision and manufacturing date.
- ATEX/IECEx Compatibility — dependent on the sensor system, barriers, and approved installation method.
- Marine approvals (DNV GL) — available only for specifically certified machinery monitoring packages.
The CE marking requirement matters because machinery protection modules operate in electrically noisy industrial environments near generators, turbines, and compressors. EMC compliance helps reduce the risk of false alarms caused by interference.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the A6210 module inside its original anti-static (ESD) shielding bag during storage. The Eurocard connector edge and internal electronics should remain protected from dust and electrostatic discharge.
Maintain warehouse humidity below 60% RH. Connector oxidation is a common issue with long-stored rack modules, particularly in coastal plants and chemical processing facilities.
Before energizing a stored unit, inspect the front panel LEDs, module handle, connector pins, and PCB surface. Allow the module to reach ambient temperature before opening sealed packaging to avoid condensation damage (a simple step that prevents many field failures).
7. Physical Installation Prerequisites
- Install only in a compatible Emerson AMS 6500 Machinery Health Monitor chassis.
- Confirm the rack slot assignment before insertion.
- Ensure the DIN 41494 Eurocard guides are clean and correctly aligned.
- Maintain cabinet airflow clearance of approximately 50 mm around ventilation paths where practical.
- Verify 24 VDC supply polarity and protective grounding before power application.
- Confirm sensor wiring polarity and shielding practices according to the approved installation drawing.
- Secure the module handle after insertion to prevent vibration-related movement.
Do not force insertion. A damaged rear connector can affect multiple protection channels.
EMERSON A6210
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is commonly used for the Emerson A6210?
A: The final Harmonized System classification depends on the importing country and declared function. Machinery monitoring modules are typically reviewed under electrical measuring, control, or protection equipment categories. Confirm the final HS code with your customs broker before export.
Q2. Does Country of Origin affect procurement approval?
A: Yes. COO information can affect import duties, trade documentation, and customer asset records. Maintain the original label, serial number, supplier declaration, and incoming inspection report.
Q3. Should shipping insurance be included for this protection module?
A: Recommended. The A6210 is a precision electronic protection device; impact damage may affect connector alignment or internal components without visible marks. Use ESD packaging, shock protection, and replacement-value insurance.
Q4. Does the Emerson A6210 include the latest firmware pre-loaded?
A: Firmware and configuration status depend on the module revision and service history. Before installation, verify the firmware revision, AMS 6500 configuration database, and approved machinery protection settings. The protection logic must match the existing plant baseline before returning equipment to operation.
