Emerson 5X00106G01 | Ovation 8 Channel HART Analog Input Module

Description

• Brand — Emerson
• Full Model Number — 5X00106G01
• System/Series Family — Ovation DCS
• Core Function — 8-channel high-performance HART analog input electronics module for 4-20 mA current-loop signals
• Top 3 Hardcore Specs — 8 channels; 4-20 mA input range; HART communication support
• Stock Status — New Surplus; physical condition and nameplate to be verified before shipment

Technical Product Introduction

A failed HART input module can remove several transmitter signals from an Ovation controller at once. The Emerson 5X00106G01 is the Ovation HART High Performance Analog Input Electronics Module, providing eight independent 4-20 mA current-loop interfaces. Emerson’s own Ovation spare-parts documentation identifies 5X00106G01 as an 8-channel HART high-performance analog input EMOD. The module is intended to work with the corresponding 5X00109G01 personality module, which provides the field-side fusing and transmitter-power configuration.

This is an EMOD/PMOD architecture, not an isolated universal analog card. The 5X00106G01 handles the electronics while the 5X00109G01 provides the field interface, including individual channel fusing and jumper configuration for locally or field-powered transmitters. Emerson documentation lists the high-performance HART input combination as eight channels at 4-20 mA. Published Ovation system-planning data also lists approximately 5.5 W/VA for the electronics module, with additional power dependent on the field-powered channel configuration.

Application Scenarios & Field Realities

• For pressure, flow, level, and temperature transmitters, the eight-channel 4-20 mA interface allows multiple process measurements to enter the Ovation system through one I/O position. HART communication also provides access to digital information from compatible smart transmitters.
• During power-generation maintenance, the EMOD/PMOD split matters. Replacing only 5X00106G01 does not eliminate the need to verify the installed 5X00109G01 personality module, because the personality module contains the channel fuses and field-power jumpers.
• When troubleshooting intermittent transmitter signals, check the complete signal path rather than immediately condemning the electronics module. Field wiring, transmitter power selection, channel fuse condition, personality-module jumpers, and HART device configuration can all affect the observed measurement.
• For legacy Ovation spare inventory, record both the EMOD and PMOD part numbers. A cabinet may contain 5X00106G01 while the corresponding field interface carries a different physical assembly number. Keeping those identifiers together reduces the chance of installing an electrically unsuitable combination.

Migration Compatibility & Installation Traps

Field Traps — Watch Out

EMOD/PMOD mismatch: Emerson specifies 5X00106G01 as the electronics module and 5X00109G01 as its personality module. The personality module contains one fuse per channel and user-accessible jumpers for selecting local-powered or field-powered transmitters. Installing an electronics module without verifying this pairing can create a configuration problem even when the card physically fits.

HART loop configuration: HART communication is superimposed on the standard 4-20 mA loop. Do not treat the HART function as a separate Ethernet or serial interface. Before commissioning, verify the transmitter’s loop wiring, power arrangement, channel fuse, jumper position, and HART device configuration.

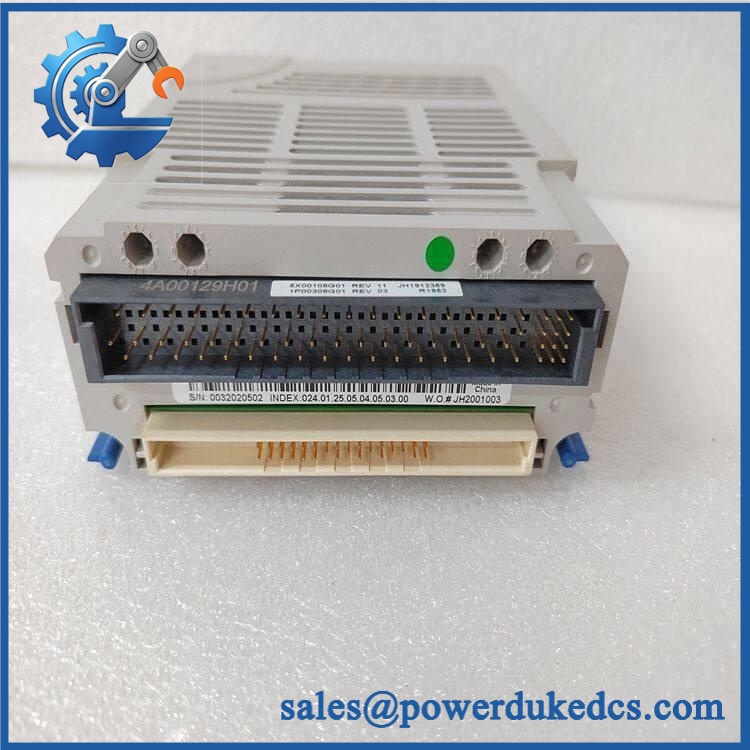

Emerson 5X00106G01

Quality Assurance SOP

For New Surplus Emerson 5X00106G01 inventory, the inspection process should concentrate on module identity and the complete Ovation I/O interface:

• OEM anti-counterfeit visual inspection — Verify Emerson/Ovation markings, complete 5X00106G01 part number, label condition, PCB condition, connector integrity, mounting features, and evidence of relabeling or unauthorized rework.
• Power-on self-test (POST) — Install the EMOD in an approved Ovation test environment and record normal startup behavior and available status indications.
• 8-channel analog verification — Apply controlled 4-20 mA test signals to representative channels and verify that the expected input values are received by the Ovation system.
• HART communication verification — Connect a compatible HART field device or simulator and verify digital communication through the appropriate Ovation I/O configuration.
• Personality-module verification — Confirm the associated 5X00109G01 PMOD configuration, channel fuses, and jumper positions before completing the functional test.
• Configuration and traceability record — Photograph the nameplate, record revision/serial information where available, document test results, and associate the record with the shipment.
• Final ESD inspection — Protect the electronics module with ESD-safe packaging, secure the connector area, and inspect the package before dispatch.

The critical identification point is straightforward: 5X00106G01 is the eight-channel HART high-performance electronics module, while 5X00109G01 is the associated personality module. Treating those as separate parts during procurement and testing helps prevent an otherwise avoidable Ovation I/O mismatch.
