Emerson 5X00273G01 | High Side Digital Output Module

Description

• Brand: Emerson
• Full Model Number: 5X00273G01
• System/Series Family: Ovation DCS
• Core Function: Personality module for the 24 VDC High Side Digital Output subsystem
• Top 3 Hardcore Specs: 24 VDC HSDO; 16 digital output channels; Up to 500 mA source current per channel
• Stock Status: New Surplus — exact condition and packaging to be verified

Technical Product Introduction

A failed discrete-output channel can stop a field actuator, solenoid, relay interface, or other binary-controlled device even when the Ovation controller itself remains operational. Emerson 5X00273G01 is the personality module used with the 24 VDC High Side Digital Output subsystem in an Ovation I/O base. Emerson Ovation documentation identifies the HSDO configuration as a 16-channel, 24 VDC system using 5X00270G01 as the electronics module and 5X00273G01 as the personality module. Each output channel can source up to 500 mA.

That architecture is important when sourcing a replacement. The 5X00273G01 is not simply a standalone 16-channel output card; it works with the corresponding electronics module and Ovation I/O hardware. The personality module provides the channel-side voltage suppression, field-power filtering, and connectors required by the HSDO subsystem. In redundant HSDO installations, the documentation also specifies a cable connection between the personality modules of the paired assemblies.

Application Scenarios & Field Realities

• For boiler and turbine auxiliary controls, 24 VDC discrete outputs can be used for commands to solenoids, contactors, annunciators, and other binary field devices. Check the actual load current before reconnecting a replacement module.
• In redundant Ovation I/O arrangements, the HSDO architecture can operate with two output assemblies connected in parallel. The redundant configuration requires the appropriate interconnection between the personality modules; do not treat a redundant installation as a normal simplex replacement.
• When a field actuator stops responding, check the complete HSDO subsystem rather than replacing the 5X00273G01 automatically. The 5X00270G01 is the associated electronics module, while the 5X00273G01 serves as the personality module.
• During legacy Ovation maintenance, retaining the original 5X00270G01 + 5X00273G01 pairing can avoid unnecessary changes to the I/O architecture. Verify the module position, terminal-base arrangement, redundancy configuration, and controller diagnostics before installation.

Migration, Compatibility & Installation Traps

Replacement Matrix

Wrong-module trap: The 5X00273G01 is the personality module, not the complete HSDO electronics assembly. The documented subsystem combines 5X00270G01 electronics with 5X00273G01 personality hardware. Substituting another Ovation digital-output model without checking the subsystem configuration can result in an incorrect assembly.

Load-current trap: Each HSDO channel is documented at up to 500 mA source current. Do not use a higher-current rating reported by secondary product listings as a basis for field wiring; some current online listings give conflicting values. The Ovation planning documentation provides the more specific 500 mA/channel figure.

Redundancy trap: In a redundant HSDO configuration, the two personality modules require the specified interconnection cable. Confirm whether the existing rack is simplex or redundant before removing the original module.

Installation note: Isolate the appropriate field circuit and observe ESD precautions before removing the module. Preserve the original channel wiring and module position.

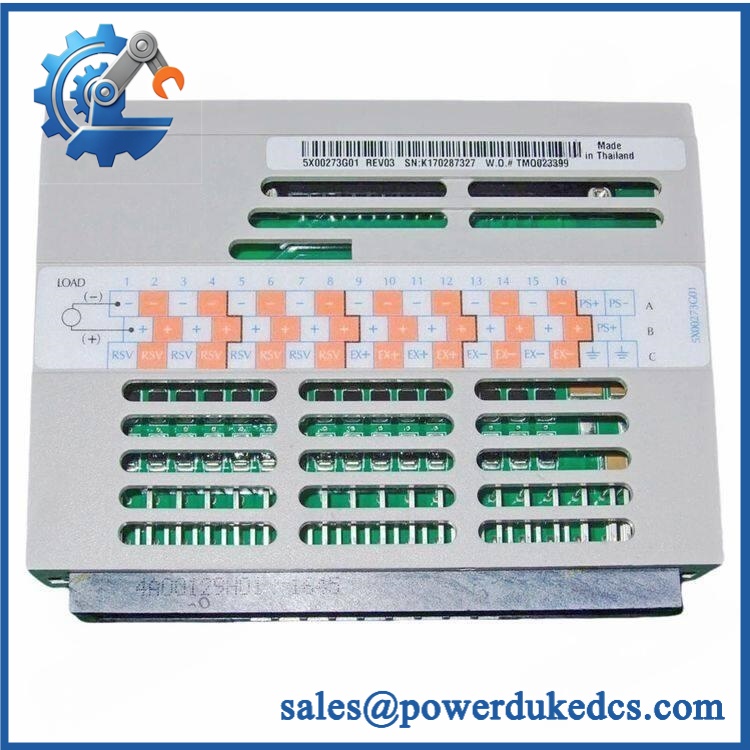

Emerson 5X00273G01

Quality Assurance SOP

For a New Surplus Emerson 5X00273G01, the pre-shipment inspection should follow a controlled Ovation I/O procedure:

• OEM anti-counterfeit visual inspection: Check Emerson/Ovation markings, complete model number, PCB identifiers, connectors, component condition, and manufacturing labels.
• Part-number verification: Confirm the physical module is marked 5X00273G01 and distinguish it from the associated 5X00270G01 electronics module.
• Mechanical inspection: Examine connectors, board edges, mounting features, terminal interfaces, and visible components for impact, corrosion, contamination, or unauthorized repair.
• Power-on self-test (POST): Install the personality module with the appropriate HSDO electronics assembly and apply controlled power through a suitable Ovation test setup.
• Status verification: Check the expected controller/module status indications and confirm that no module-level diagnostic fault is generated.
• Channel verification: Using a suitable test fixture, exercise representative digital-output channels and verify correct 24 VDC high-side switching behavior.
• Load simulation: Use controlled test loads within the documented channel-current limit rather than connecting an unknown field actuator during initial testing.
• Communication handshake verification: Confirm that the associated Ovation controller recognizes the HSDO assembly and that module diagnostics are available.
• Redundancy verification: Where applicable, test the correct redundant interconnection between paired HSDO personality modules.
• Final inspection: Record model number, serial or board identification, test results, physical condition, and shipment photographs.

Engineering reference point: Ovation documentation identifies 5X00273G01 specifically as the personality module for the 24 VDC High Side Digital Output subsystem, paired with 5X00270G01 and providing a 16-channel configuration with up to 500 mA source current per channel.
